Parker PWD Series - Application Example 2: Position Control; System Diagram

17
Electronic for proportional DC valves
Series PWDXXA-40X
Operation Manual
PWDXXA-40X_20 5715-677 UK.indd 26.01.17
Parker Hannifin Corporation
Hydraulics Group
Parker Hannifin Corporation
Hydraulics Group

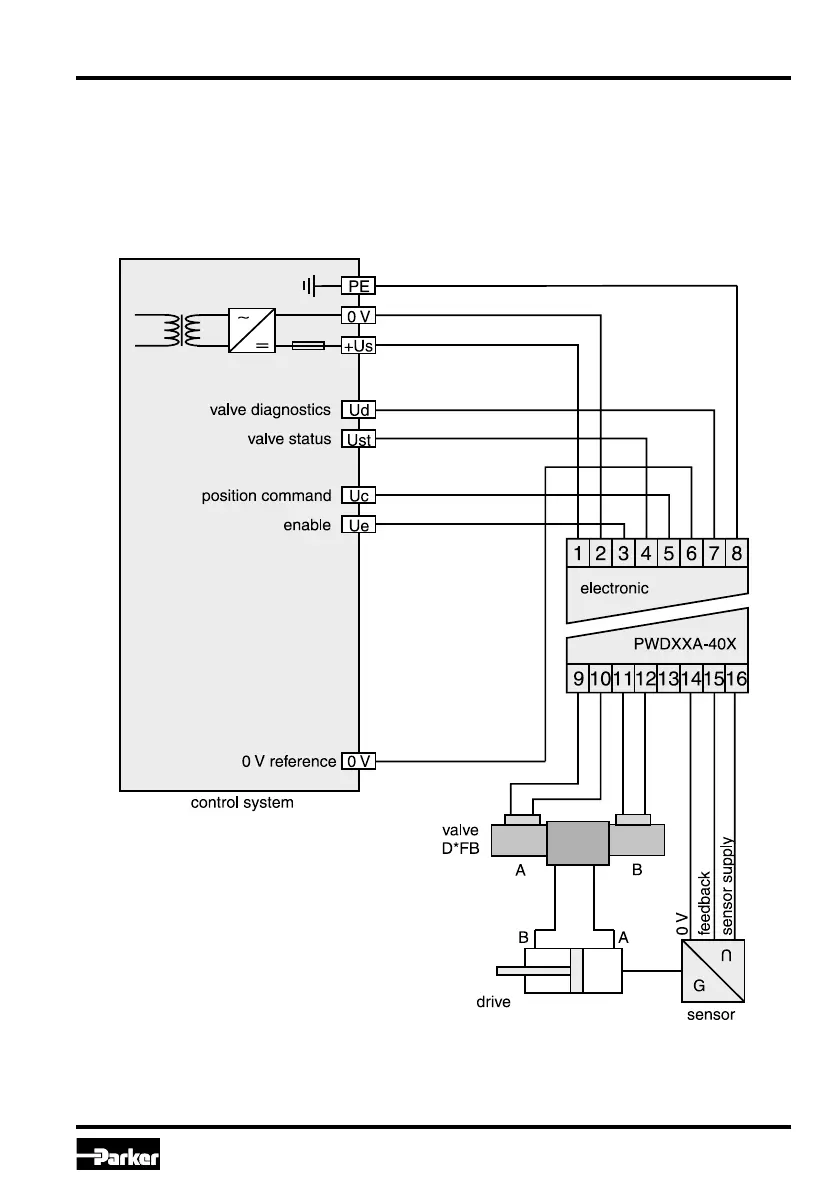

Example 2:
Closed loop position control of a hydraulic cylinder,
utilizing a proportional directional control valve with
external electronics (D*FB). Command preset via
external control signal.
