Parker PWD Series - Application Example 3: Position Control; System Diagram

18
PWDXXA-40X_20 5715-677 UK.indd 26.01.17
Electronic for proportional DC valves
Series PWDXXA-40X
Operation Manual
Parker Hannifin Corporation
Hydraulics Group
Parker Hannifin Corporation
Hydraulics Group

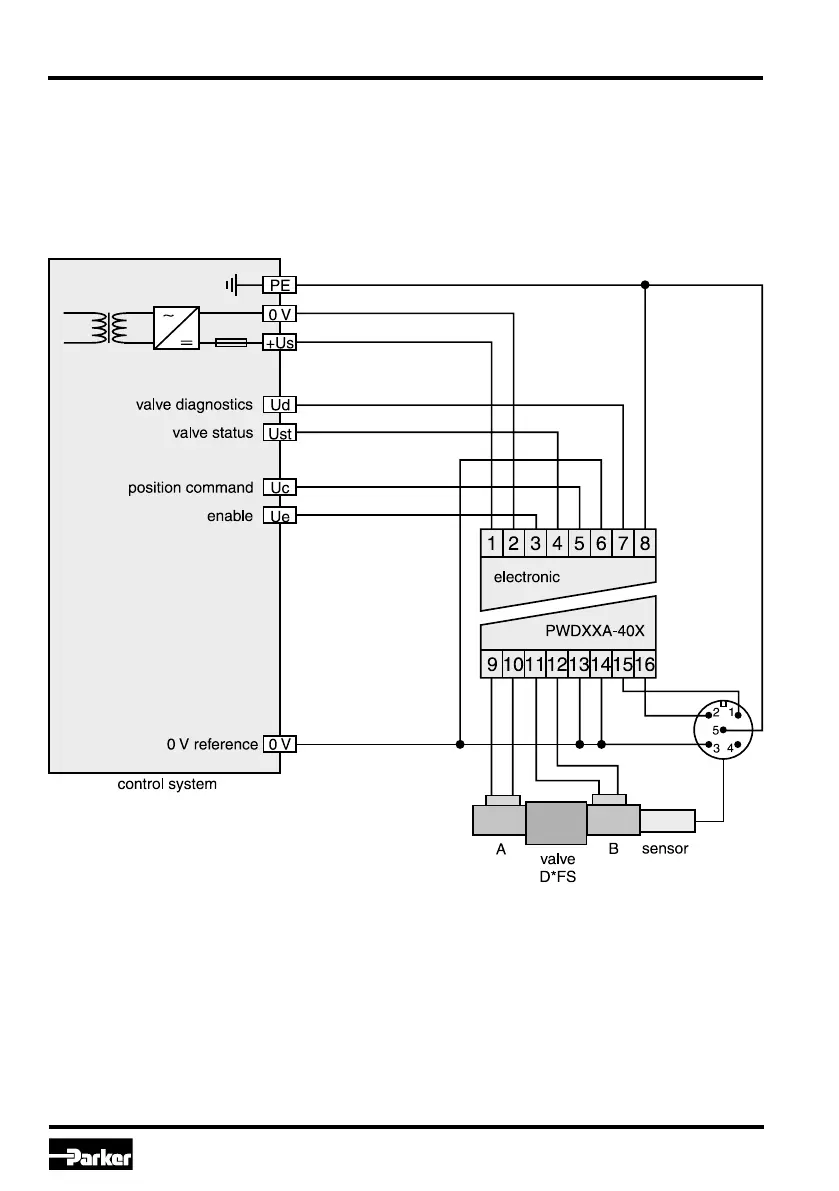

Example 3:
Closed loop position control of a hydraulic cylinder,
performed via proportional directional control valve
with external electronic (D*FS). Command preset
via external control signal.
