7
Step 3:

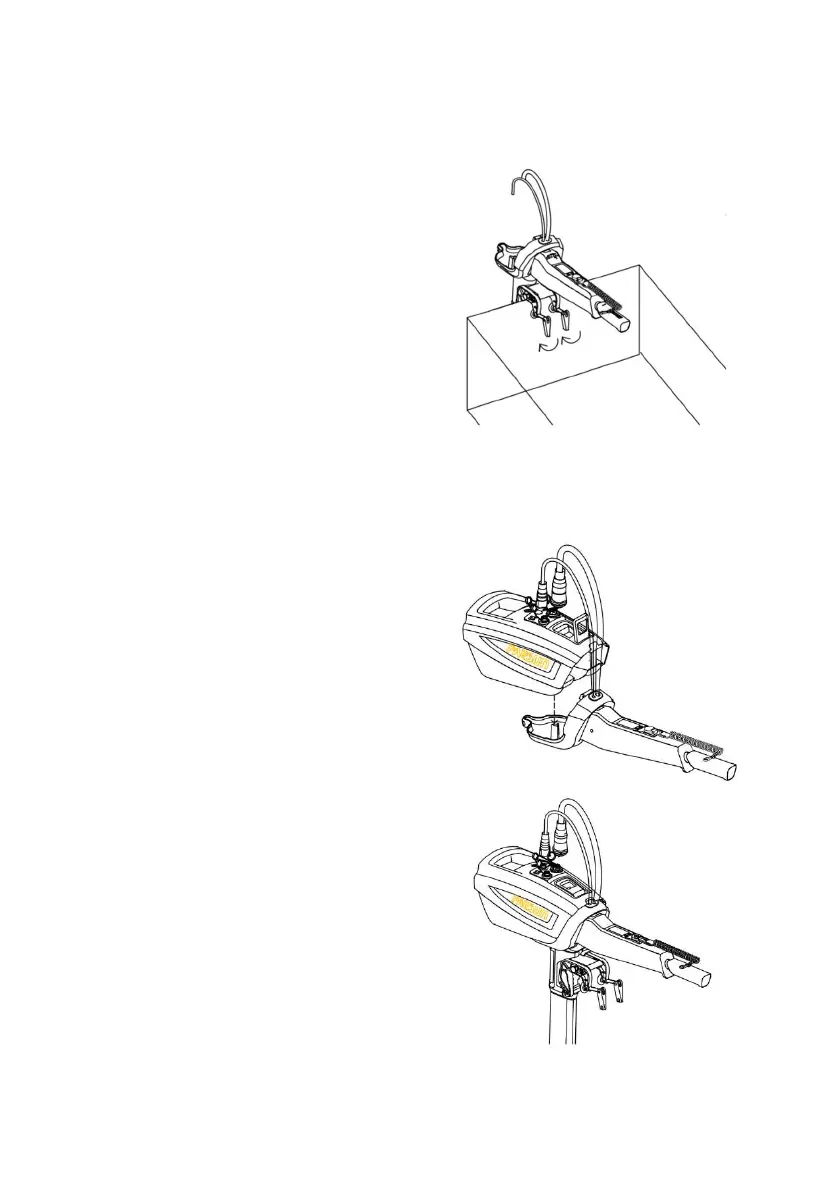

Tighten the clamping screw of stern
plate clockwise to secure the outboard
motor. Because the clamping screw will
be loose due to engine vibration, check
whether the clamping screw is loose
from time to time during engine
operation.
2.2 Battery installation
Step 1:
Lift the battery's upper snap, align the
slot under the battery with the post on
the outboard motor, then lower the
battery and loosen the snap, as shown
in the following figure.
Step 2:
Connect the power cord and
communication cord on the outboard
motor to the battery; press the interface
and the interface will automatically lock,
as shown in the figure.
