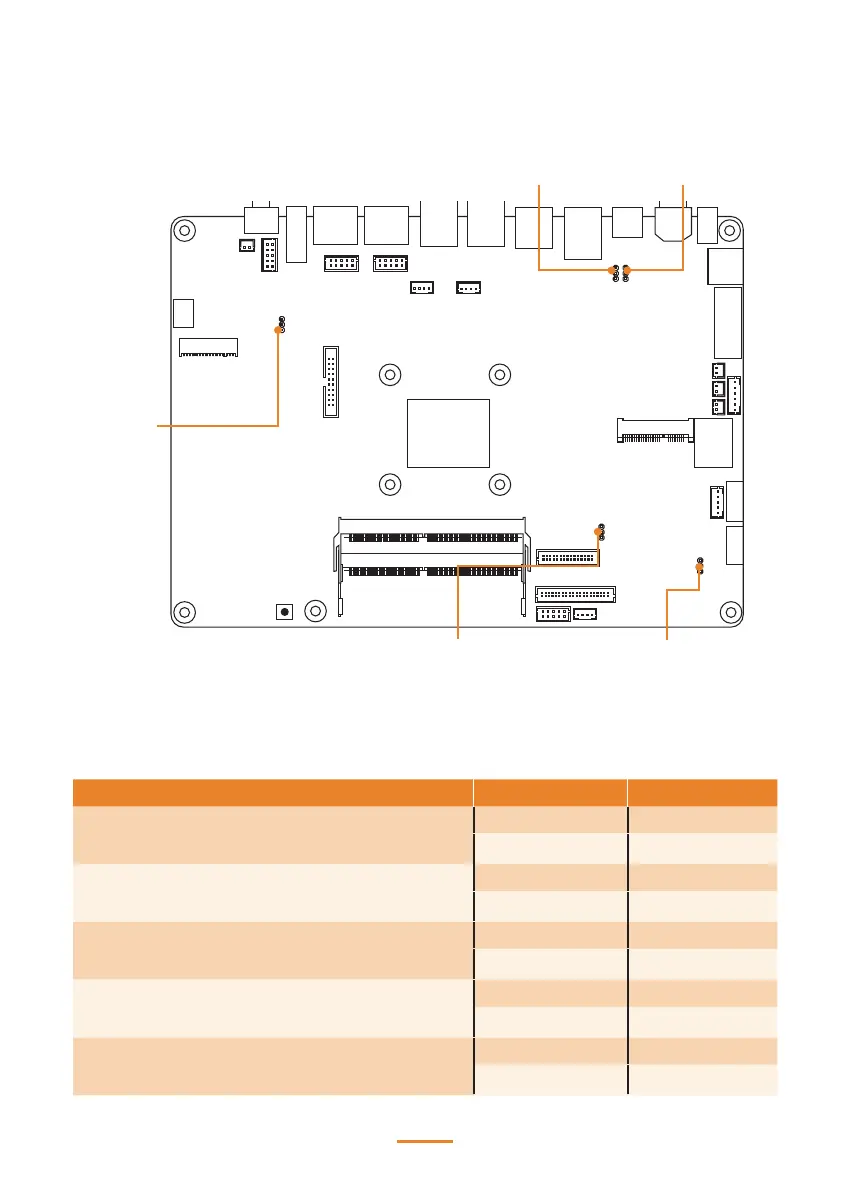

Mainboard Jumper
CMOS Clear
Jumper
EDP VDD Select Jumper
AT or ATX Select
Jumper
Cash Drawer Power
Select Jumper
Cash Drawer Enable/
Disable Select Jumper
Jumper Setting Function
CLR_COMS1
(CMOS Clear Jumper)
1-2(Default) Normal
2-3 Clear COMS
JP1
(AT or ATX Select Jumper)
1-2(Default) ATX Mode
2-3 AT Mode
JP_LVDDP1
(LVDS1/LVDS2/EDP1 VDD Select Jumper)
1-2(Default) + 3.3V
2-3 + 5V
JP_CDPWR1
(Cash Drawer Power Select Jumper)
1-2(Default) + 24V
2-3 + 12V
JP_CDCP1
(Cash Drawer Enable/Disable Select Jumper)
1-2 Disable
2-3(Default) Enable
