Mainboard
Before proceeding, remove
the following FRUs.
• Panel
• Panel Back Cover
1. Disconnect the MSR
PCBA, Power Button and
LED PCBA , Speaker,
VGA Port and LVDS
Cable connectors from
the mainboard.

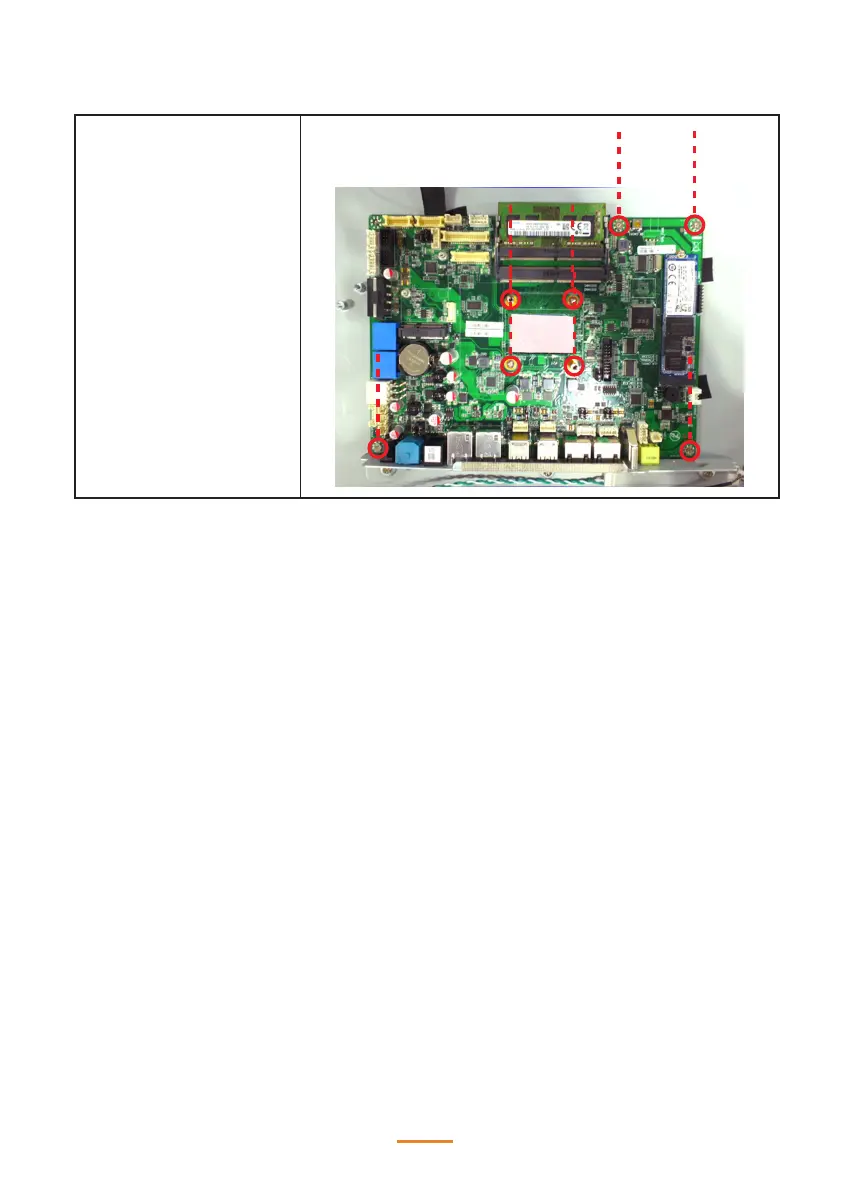

2. Remove all screws from
the mainboard.
3. Remove the mainboard.
