Power Button and LED PCBA

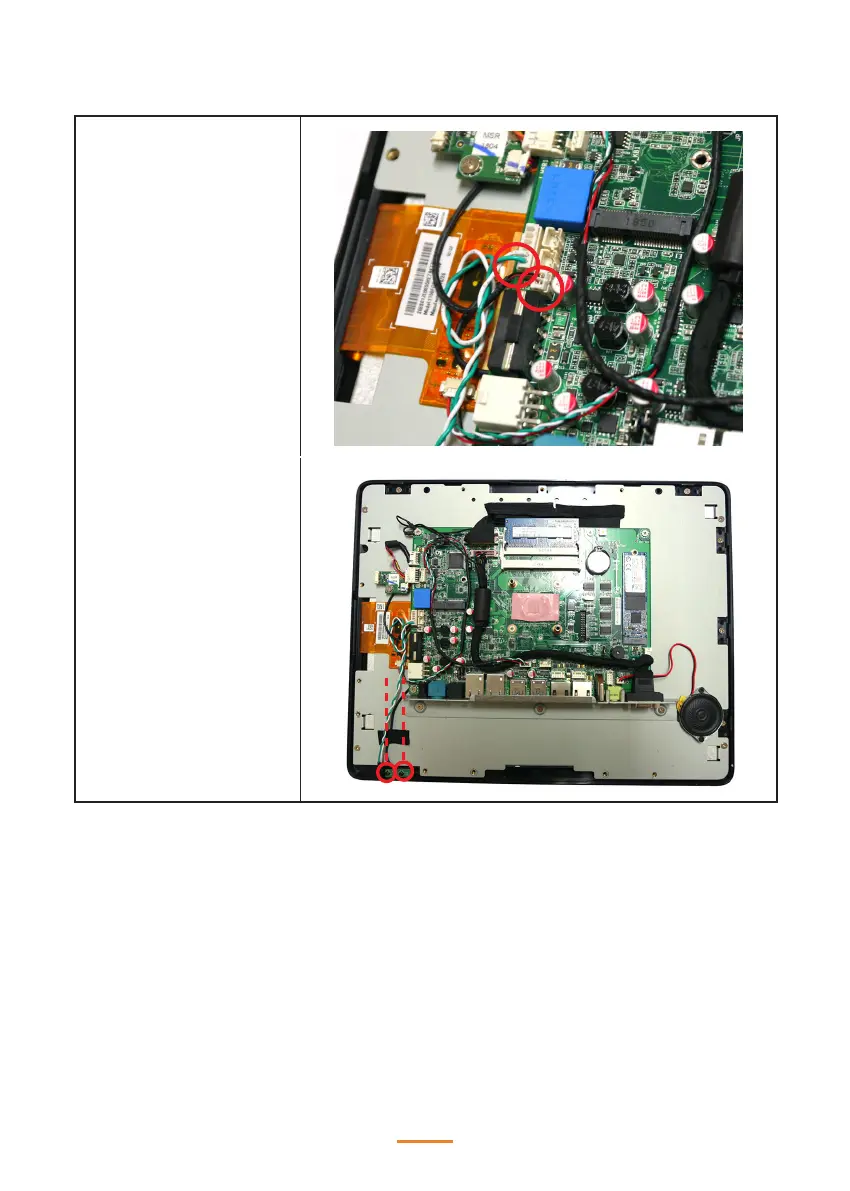

Before proceeding, remove
the following FRUs.
• Panel
• Panel Back Cover
1. Disconnect the cables
from the mainboard.
2. Remove 2 screws that
secure the power button
and LED PCBA.
3. Remove the PCBA.
