6

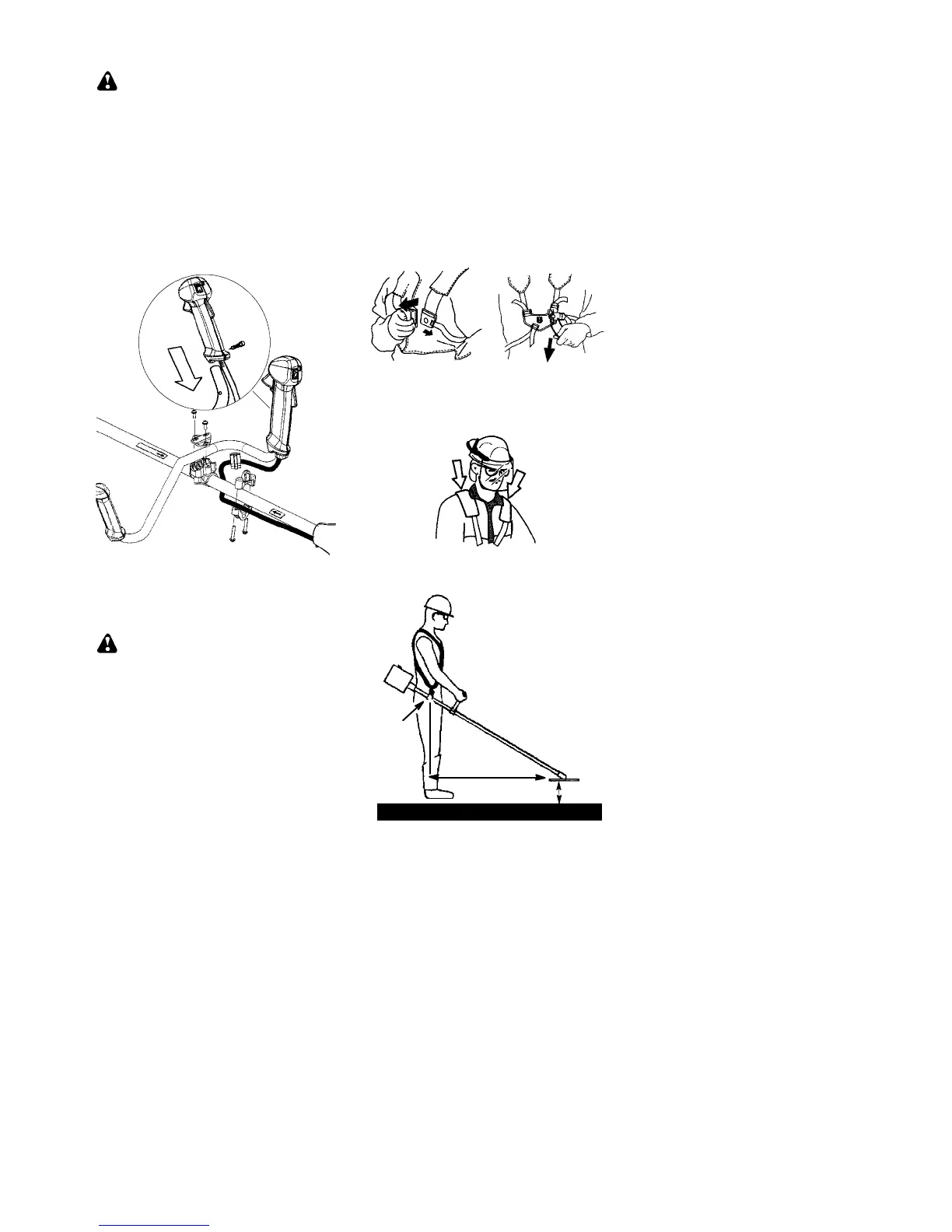

ATTA CH ING THE HANDLEBAR
DANGER: To avoid serious injury , the
barrier portion ofthe handlebarmust beinstalled
as shown to provide a barrier between operator
and the spinning blade.
1. Remove the screw at the rear of the
throttle handle.
2. Slidethethrottlehandleontotherightside
of the handlebar (see illustration).
3. Align the screw hole in the throttle handle
with the hole in the handlebar.
4. Refitthescrewintheholeintherear ofthe
throttle handle.
5. Screw the screw through the handle and
handlebar. Tighten the screw.
6. Fit the mounting components as shown.
7. The handlebar mounting must be fitted
between the arrows on the shaft.
8. Tighten the screws with a hex wrench.
ASSEMBLY OF SHOULDER
HARNESS
WARNING: When using a brushcut-
ter, it must always be hooked securely to the
shoulder harness. Otherwise, you will be un-
able to safely control the brushcutter . This
can result in injury to yourself or others.
Proper shoulder harness and handlebar adjust-
ments must be made withthe enginecomplete-
ly stopped before using unit. A well--adjusted
shoulder harness and machine makes work
much easier.
ATTACH ING SHOULDER HARNESS
CLAMP
1. Place the upper shoulder harness clamp
over the shaft.
2. Position the lower shoulder harness
clampunder the shaft and align theupper
and lower clamp screw holes. Clamp
mustbefittleabovethearrow on theshaft
(see illustration above).
NOTE: Fit throttle wire in groove of lower
harness clamp before tightening screws.
3. Insert two screws into the screw holes.
4. Secure shoulder harness clamp by tight-
ening screws with a hex wrench.
SHOULDER HARNESS
ADJUSTMENT
At the front of the shoulder harness is an easily
accessible quick release. Use the quick release
in any emergency situation that requires you to
free yourself from the machine and harness.
1. Putontheharness.Adjustthe harnessfor
the best working position.
2. Tension the sidestraps sothat the weight
is evenly distributed across both shoul-
ders.
NOTE: It may be necessary to relocate the
shoulderharnessclampontheshaftforprop-
er balancing of unit.
76 cm
SHOULDER HARNESS
ADJUSTMENT
FOR BALANCE
10 -- 30 cm
above
ground
15 cm
below
waist
