MAINTENANCE

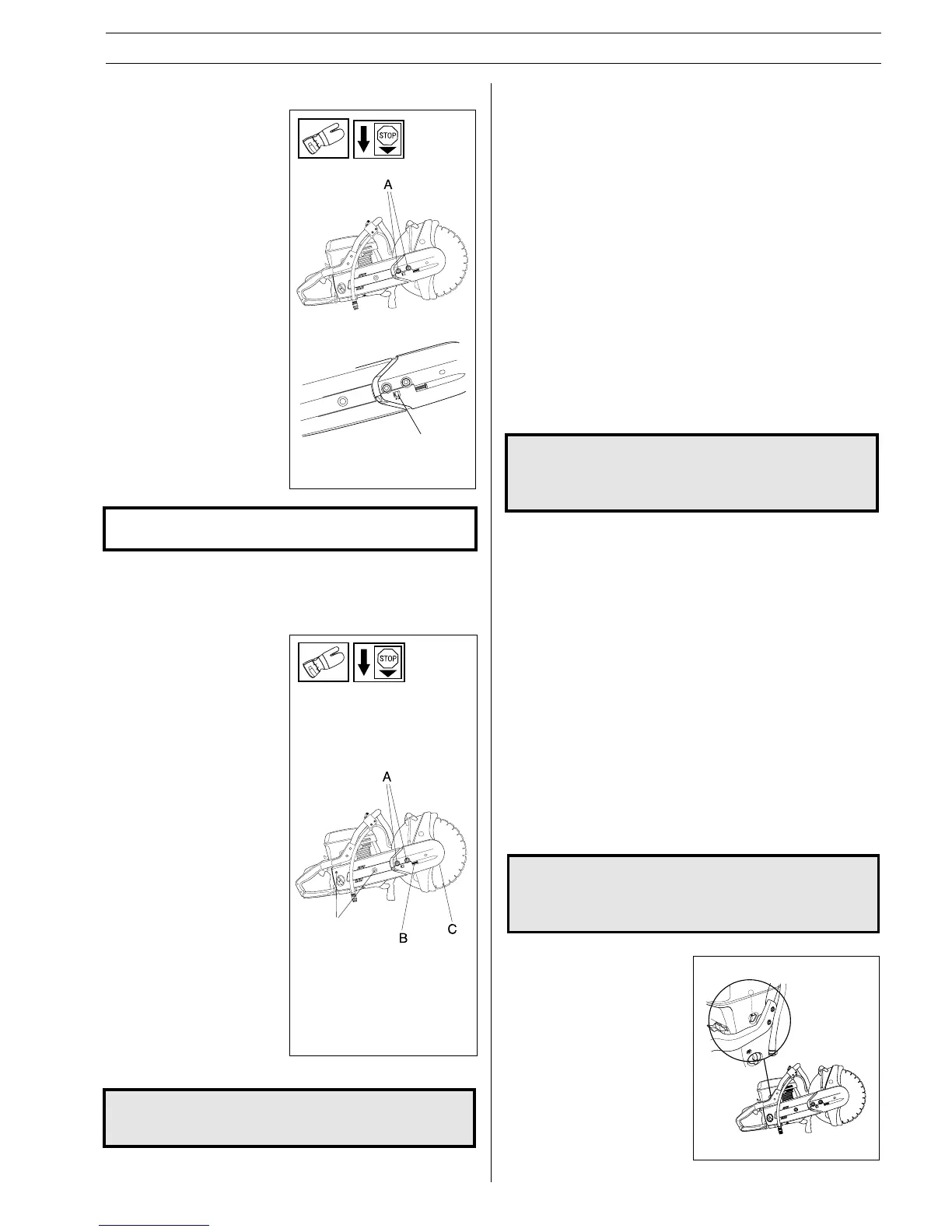

Adjusting the drive belt
• The drive belt is enclosed
and protected from dust, dirt
and mechanical damage
when cutting
• To tension the drive belt,
unscrew the screws (A) that
secure the cutting head and
belt guard 1/2 a turn.
• Turn the tensioning screw
so that the nut (B) is located
directly under the arrow on
the cover. Shake the head
to ensure the spring can
tension the belt. The belt
now automatically has the
right tension.
• Tighten the screws that
secure the cutting head.
IMPORTANT INFORMATION! A new drive belt should be
tensioned after using one or two tanks of fuel.
!
WARNING! Never use the power cutter without
the blade guard fitted over the cutting blade.
Changing the drive belt
• Loosen the two screws (A).
• Turn the tensioning
screw(B) until the tension
has been released.
• Remove the two screws (A).
• Remove the front belt cover
(C).
• Remove the belt from the
pulley.
• Dismantle the cutting head.
• Remove the two screws
(D). Remove the side cover.
• Replace the drive belt.
• To assemble reverse the
procedure for dismantling.
• Check the blade guard for
signs of cracking or other
damage. Replace it if
damaged.
D
B
Belt pulley and clutch
Never start the engine when the belt pulley and clutch are
removed for maintenance.
Operation
T
Contact your servicing dealer, if the idle speed
setting cannot be adjusted so that the blade
stops. Never use the power cutter until it has
been correctly adjusted or repaired.
!
Final setting of the idling speed T
Adjust the idling speed with the screw T. If it is necessary to re-
adjust, first turn the idle speed adjusting screw T clockwise, until
the blade starts to rotate. Then turn, counter-clockwise until the
blade stops. A correctly adjusted idle speed setting occurs
when the engine runs smoothly in every position. It should also
be good margin to the rpm when the blade starts to rotate.
Recommended idling speed: 2 500 rpm.
Carburettor with fixed jets
Your Partner product has been designed and manufactured to
specifications that reduce harmful emissions.
After your unit has been run 8-10 tanks of fuel the engine has
broken in. To ensure that your unit is at peak performance and
producing the least amount of harmful emissions after break in,
have your authorized servicing dealer, who has a revolution
counter at his disposal, to check your carburettor for optimum
operating conditions.
Jets
The carburettor is equipped with fixed jets to ensure the engine
always receives the correct fuel air mixture.
If the engine lacks power or accelerates poorly do the following:
• Inspect or, if necessary, replace the air filter.
• If this does not help, contact an authorised service workshop.
WARNING! Do not start the power cutter
without the cutting arm, belt or cutting head
fitted. Otherwise the clutch can come loose
and cause personal injuries.
!
The carburettor governs the engine speed via the throttle.
Air/fuel are mixed in the carburettor
