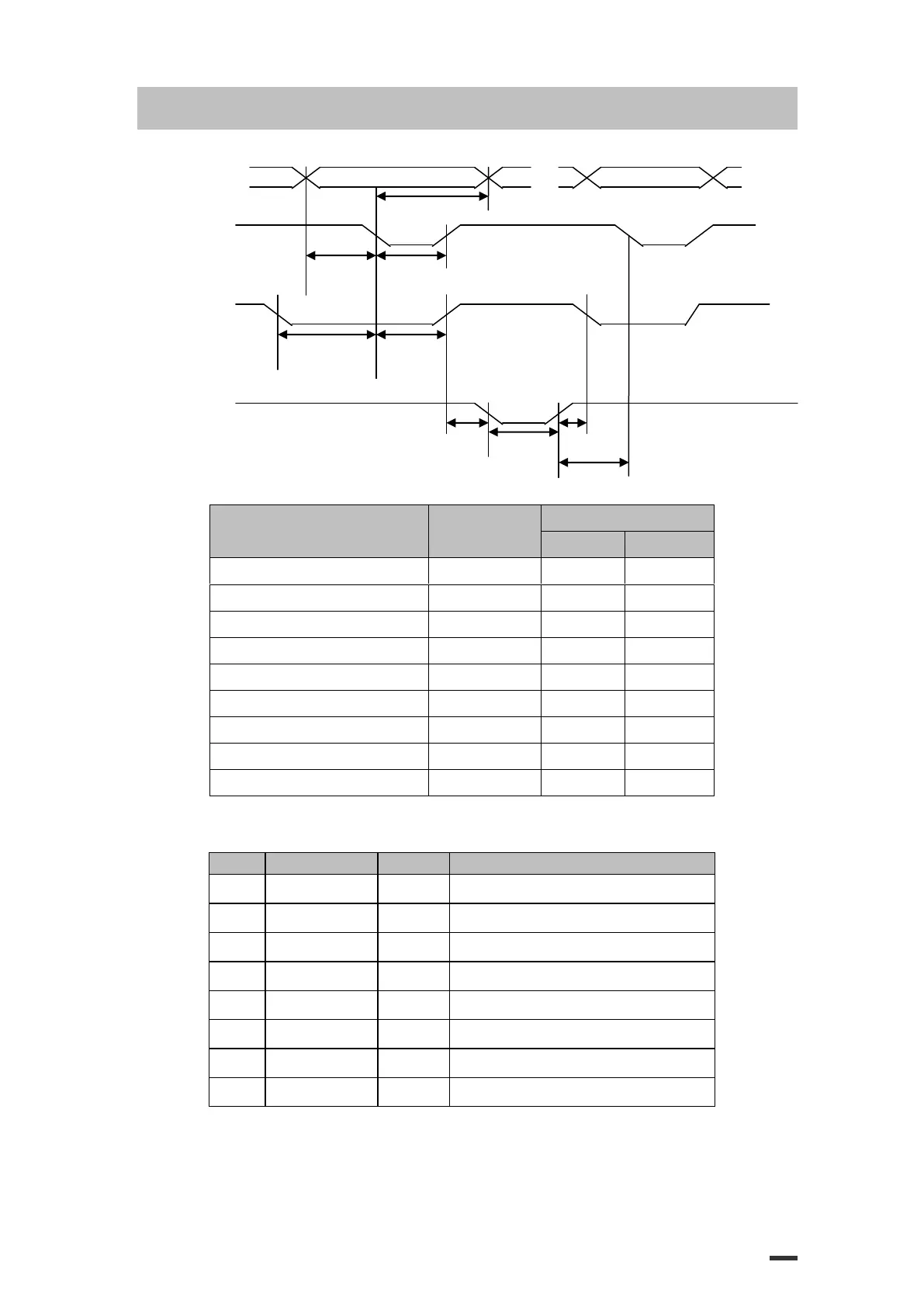

DATA Data n Data n+1
tHold
nStrobe
tSetup tSTB
Busy Peripheral Busy
tReady tBUSY
nAck
tReply tACK tnBUSY
tNext
Characteristics
Symbol
Specifications
Min [ns]
Max [ns]
Data Hold Time (host)
tHold
750
--
Data Setup Time
tSetup
750
--
STROBE Pulse Width
tSTB
750
--
READY Cycle Idle Time
tReady
0
--
BUSY Output Delay Time
tBUSY
0
500
Data Processing Time
tReply
0

ACKNLG Pulse Width
tACK
500
10us
BUSY Release Time
tnBUSY
0

ACK Cycle Idle Time
tNEXT
0
--
2.1.8 ETHERNET Interface
PIN
SIGNAL
I/O
DESCRIPTION
1
Data Out+
-
Output Data +
2
Data Out-
-
Output Data -
3
GND
-
System Ground
4
Data IN+
-
Input Data +
5
Data IN-
-
Input Data -
6
N.C
-
7
N.C
-
8
N.C
-
