Please install the clip scraper and beater shaft on the beater according to the method below.
Suggestion for purchasing
the accessory products
ＰＡＳＭＯ
●
Height is 153cm, large ice cream lamp model
冰 淇 淋 系 统 运 营 服 务 商
ＰＡＳＭＯ ＰＡＳＣＡＬ
ＰＡＳＭＯ
ＰＡＳＭＯ
●
Height is 136cm, medium ice cream lamp model
●
Height is 45cm, small ice cream
lamp model
13
●
Desktop ice cream model
●
Usage for the
drainage box,
please refer to
the page 23

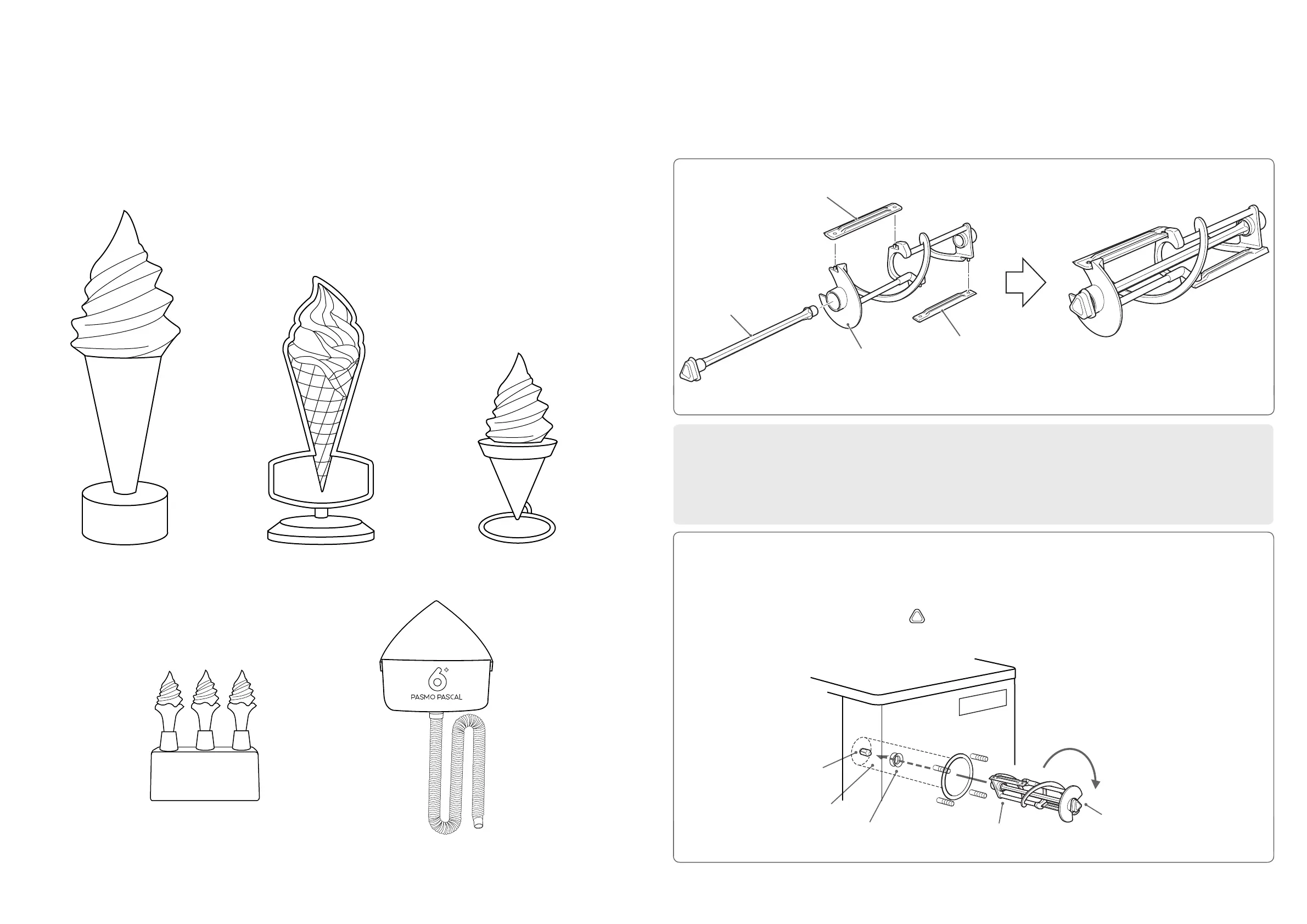

Assembly method of key parts
。
●
●
1
2
14
Beater shaft
Beater
Clip scraper
Clip scraper
Assembly of beater
The clip scraper has a sharp cutting edge. Please be careful during installation. Don't install it in the reversed
direction. Otherwise, it may lead to poor taste and forzen cylinder.
The clip scraper has two sides. The side with alphabet is facing upward and fixed through two fixed holes on
the blade.
User notes
Beater installation （ * Note: Make sure the power switch is off before installation）
Please insert the beater into the cylinder. Slowly rotate with hand while inserting it to the beater motor
shaft.
The direction of the beater shaft is when inserted.（vertex of a triangle upwards）.
Please apply proper amount of lubricating oil on the inner surface of the shaft seal and install it on the
main motor shaft.
Clip scraper
Main motor shaft
Cylinder
Beater
Shaft seal
