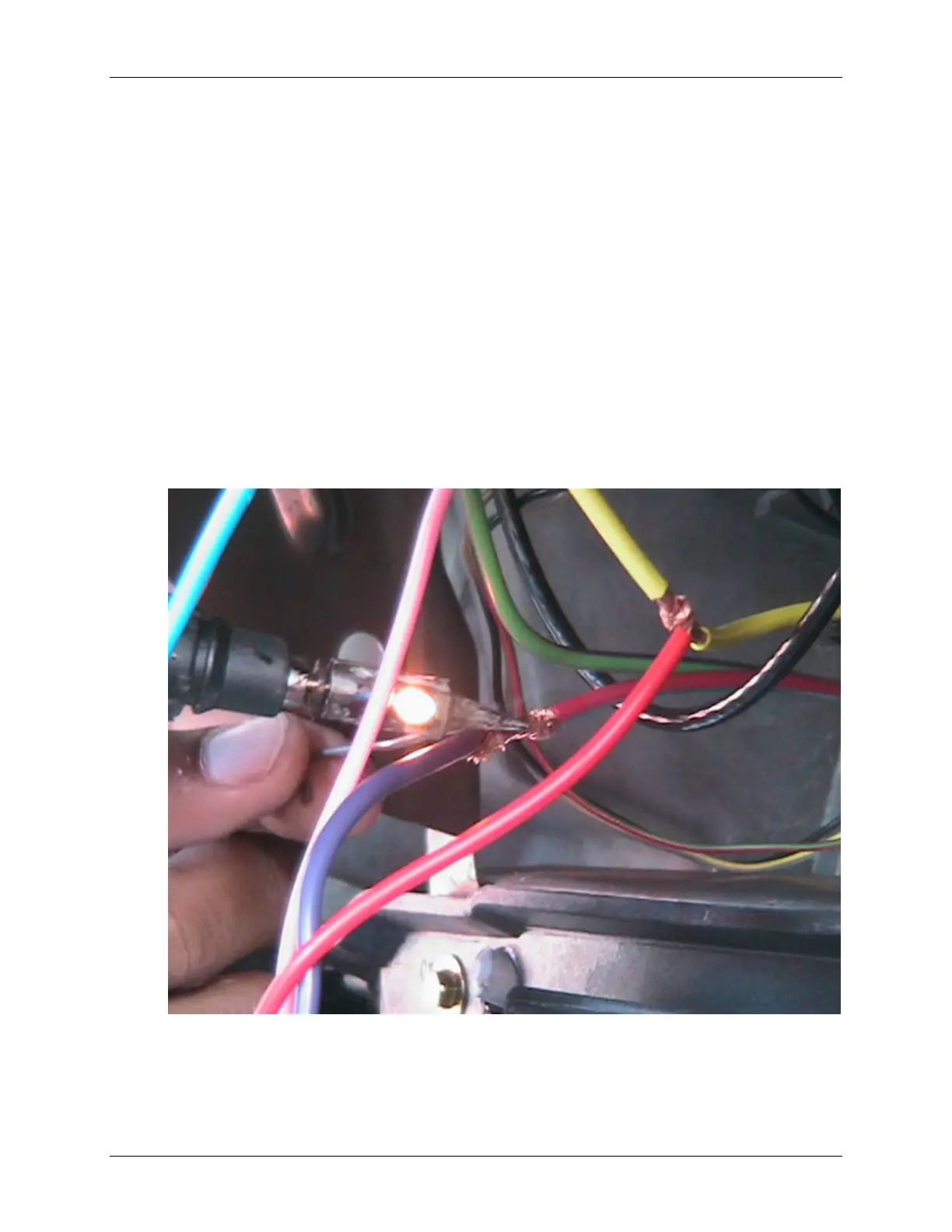

Connecting the PassTime Red Wire (constant 12v)
The red wire provides constant 12v power to the GPS unit at all times. Connections should be
soldered and taped to provide a good electrical connection. Connectors have been provided, if
you are unable to solder the wires. Connect the red wire to a constant 12v source in the vehicle,
which has 12 volts on it at all times with the key in all positions, including the off position. There
are a variety of locations to access a 12v source, but typically it can be located in the steering
column wiring harness. It is best to verify the voltage using a multi-meter. PassTime recommends
that you avoid using a 12volt light tester.
.
