Patterson-Kelley P-K Compact - K1 Valve Body Assembly Part Numbers; Valve Body Assembly

6
ITEM VALVE SIZE
NO. PART NAME MATERIAL 1/2 3/4 1 1-1/4 1-1/2 2
23A* STEM BOLT - SHORT BRASS 04-17277-00 04-17277-00 04-17277-00 04-17277-00 04-17277-00 04-17277-00
23B** STEM BOLT - LONG BRASS 04-17281-00 04-17281-00 04-17281-00 04-17281-00 04-17281-00 04-17281-00
24 STEM NUT BRASS 05-17342-00 05-17342-00 05-17342-00 05-17342-00 05-17342-00 05-17342-00
25 BONNET ASSY BRASS 557B109-01 557B109-01 557B107-02 557B107-02 557B110-02 557B110-02
26 LOCK NUT ST STL 05-17330-00 05-17330-00 05-17330-00 05-17330-00 05-17330-00 05-17330-00
27 WAVE WASHER ST STL — — 122A155-01 122A155-02 122A155-02 122A155-02
28A SEAT RING, 1/2A K1 ST STL SN217 —————
SEAT RING, 1/2B K1 ST STL SUU217 —————
SEAT RING, 1/2C K1 ST STL SN217 —————
SEAT RING, 1/2E K1 ST STL SN217 —————
SEAT RING, T K1 ST STL SX217 SM217 562A114-02 562A114-03 562A114-04 562A114-05
28B SEAT RING, 1/2A K5 ST STL 562A110-01 —————
SEAT RING, 1/2B K5 ST STL 562A110-01 —————
SEAT RING, 1/2C K5 ST STL 562A110-01 —————
SEAT RING, 1/2E K5 ST STL 562A110-01 —————
SEAT RING, T K5 ST STL 562A112-01 562A113-01 562A114-02 562A114-03 562A114-04 562A114-05
29 TAILPIECE GALV IRON SX227 SMP462 SMP463 SBB227 SMP465 SMP593
30 BODY BRONZE 292B110-01 292B110-01 SAM1167B SAN1167B SAN1167B 564B116-01
31 CAP BRASS — — 557B101-01 SB312E SB312E SB312E
32 TRAVEL INDICATOR ALUM 05-12962-00 05-12962-00 05-12962-00 05-12962-00 05-12962-00 05-12962-00
33 V RING PACKING SET TFE/SS/VITON 204A104-01 204A104-01 204A104-01 204A104-01 204A104-01 204A104-01
34 STEM ST STL 552A117-01 552A117-01 552A115-01 552A115-02 552A115-02 552A115-02
35* YOKE BUSHING BRASS 04-17278-00 04-17278-00 04-17278-00 04-17278-00 04-17278-00 04-17278-00
36** SPACER BRASS 04-17280-00 04-17280-00 04-17280-00 04-17280-00 04-17280-00 04-17280-00
37 NUT ST STL 05-17342-00 05-17342-00 ————
38 GUIDE ST STL — — 556A111-01 556A111-02 556A111-02 556A111-02
39 PLUG, 1/2A ST STL 554A154 —————
PLUG, 1/2B ST STL 554A158 —————
PLUG, 1/2C ST STL 554A153 —————
PLUG, 1/2D ST STL 554A156 —————
PLUG, 1/2E ST STL 554A159 —————
PLUG, T ST STL 554A157 554A155 554A146-02 554A146-03 554A146-04 554A146-05
40 UNION NUT GALV IRON SMP487 SMP467 SMP468 SMP470 SMP470 SMP592

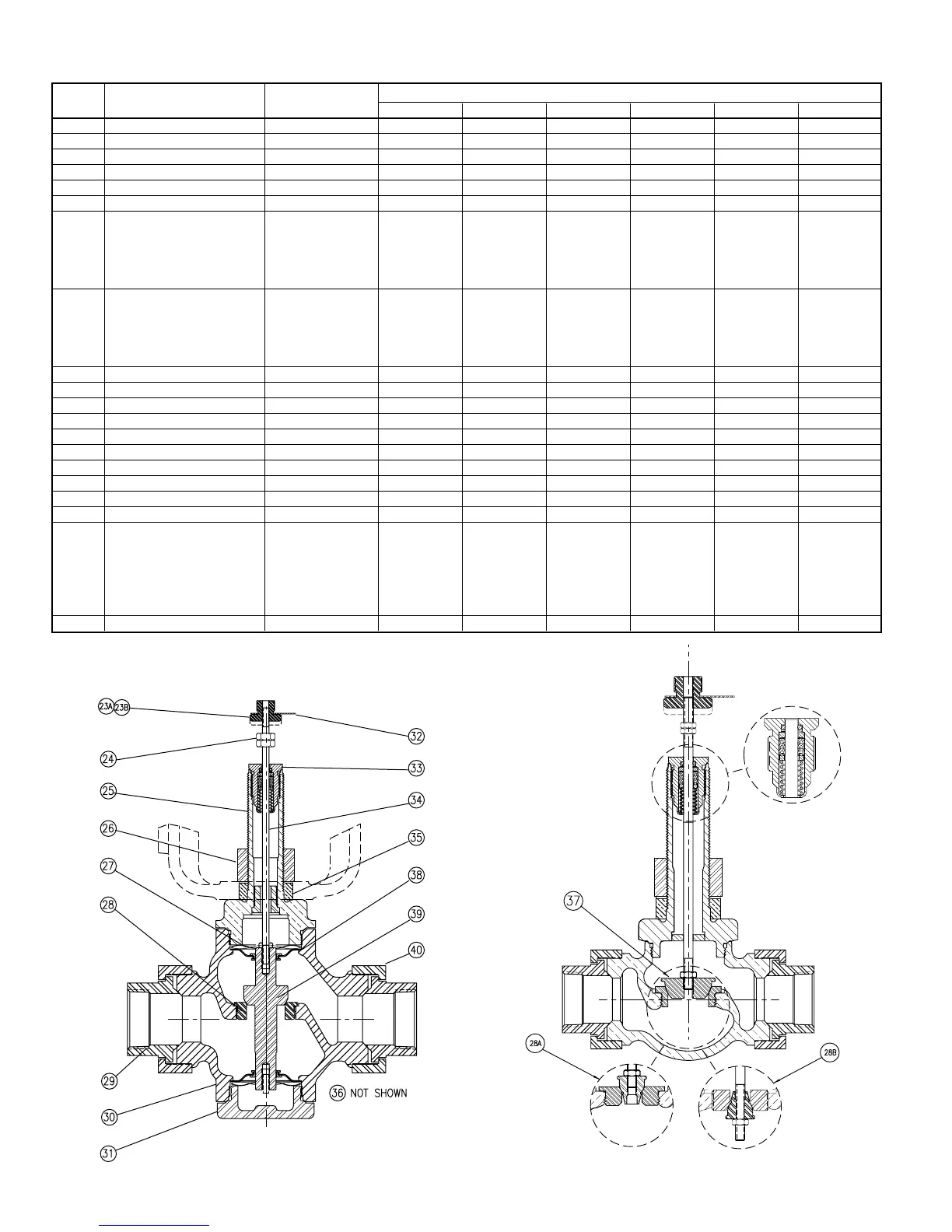

K1 VALVE BODY ASSEMBLY PART NUMBERS
FIGURE 2 -
VALVE BODY ASSEMBLY - K1 1" - 2"
FIGURE 4 -
VALVE BODY ASSEMBLY - K1 - 1/2" - 3/4"
* Not included in body assembly; order K-KIT separately.
**Not included in body assembly: order separately.
