Page 4 of 4 Form No V5848R2
Torque Chart
Part Name Torque Value Inch-Pounds Torque Value Newton-Meters
Solenoid base sub-assembly 175 ± 25 19,8 ± 2,8
Bonnet screws 95 ± 10 10,7 ± 1,1

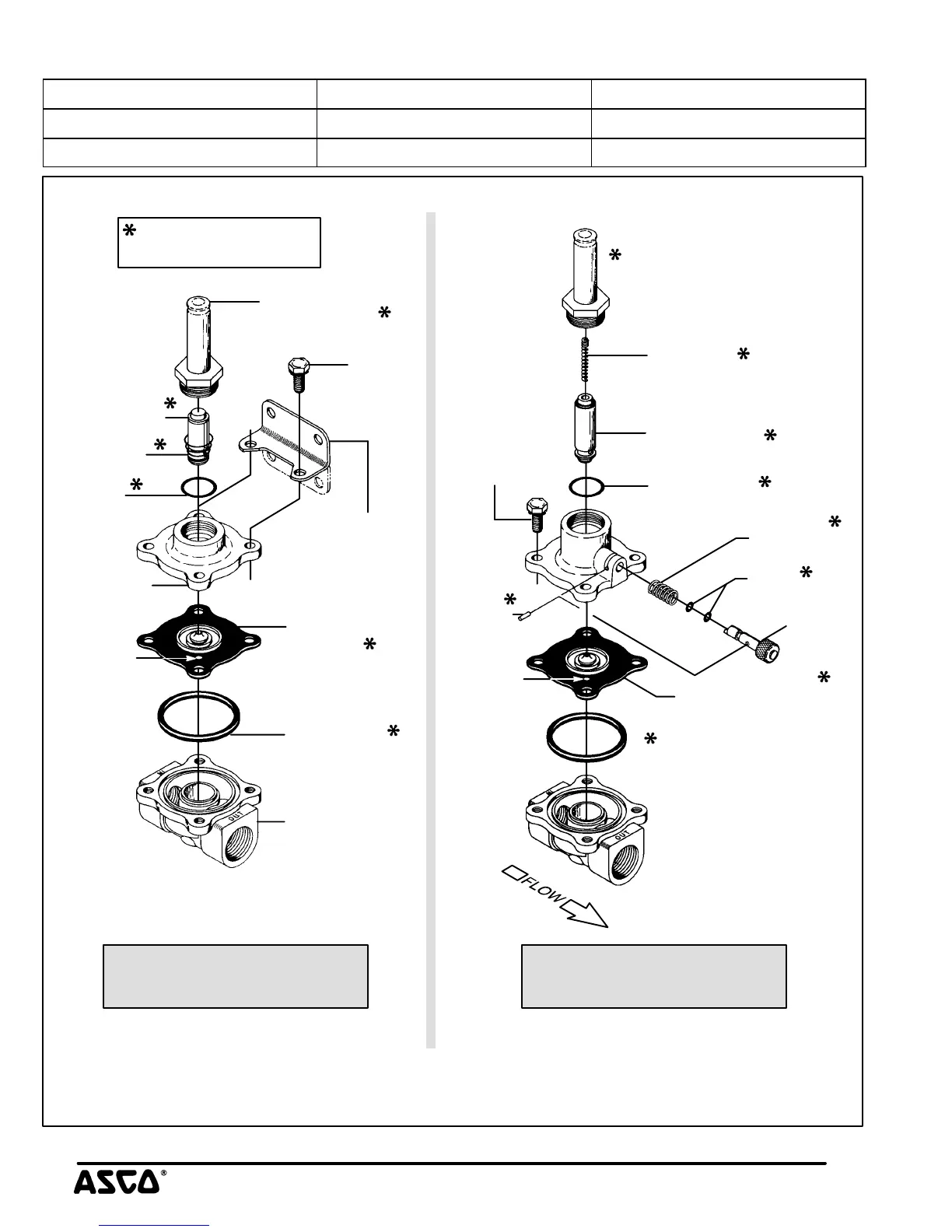

Figure 3. Series 8210 - DC construction without solenoid.
core assembly
valve bonnet
diaphragm
valve body
body gasket
solenoid base
core spring
stem
stem spring
stem
bonnet
mounting bracket
two positions
(optional)
bleed hole
core spring
( wide end in core first,
closed end protrudes
from top of core)
stem pin
Indicates Parts Supplied
In ASCO Rebuild Kits
core assembly
solenoid base
sub-assembly
gaskets (2)
solenoid
gasket
diaphragm assembly
(see note)
assembly
base
gasket
bleed hole
(see note)
Note:
Locate bleed hole in diaphragm assembly approximately 45° from valve outlet.
with Manual Operator
DC Construction
Standard
DC Construction
screw (4)
bonnet
screw (4)
