*These parts furnished in Actuator Repair Kit.
** Used in K4 only
8
ACTUATOR REPAIR KIT PART NUMBERS
36 SQ. IN. 60 SQ. IN.
51447 51448
DIRECT ACTING
REVERSE ACTING
Part # Reverse Shutof Direct Shutoff
†
Spring Kit Includes:
(Air-to-Open) Bench Range (Air-to-Close) Bench Range
K1 K4
††
K1 K4 Spring Other
Part # Notes Code Range Code Range Code Range Code Range QTY Color Part#
36KIT100 (1) 36RA 6 - 15 - - 36DA 3 - 12 - - 6 YELLOW 05-12991-00 -
36KIT102 (3) 36RB 9 - 15 ------6YELLOW05-12992-00 -
36KIT104 (2) (4) 36RC 12 - 15 ------6RED05-13090-01 -
36KIT108 (2) (4) 36RE 13- 15 ------6GREEN 05-13085-00
05-04889-00
(2) Bolts
36KIT110 (1) ----36DB3 - 9--6METAL 05-05121-00 -
60KIT100 (1) (4) 60RG 12 - 15 - - 60DG 3 - 7 - - 6 BROWN 05-13093-01 -
60KIT102 (1) (4) 60RH 13 - 15 60RH 10 - 15 - - DH 3 - 8 4 BROWN 05-13093-01 -
60KIT104 (5) - - 60RQ 12 - 15 ----6BLACK 05-13097-00
05-04889-00
(2) Bolts
60KIT110 (1) - - 60RT 22 - 30 ----6BROWN 05-13093-00
See detail
in Fig. 6
K1 & K4 ACTUATOR SPRING KITS
K1 & K4 ACTUATOR CONNECTOR KITS
K1 & K4 ACTUATOR PART NUMBERS
ITEM # PART NAME MATERIAL PART # QTY
1 Vent plug H.D.poly — 1
2 Upper casing Stl/powder coat — 1
3 Springs Steel See Below See Below
4 Casing bolt standard 304 ss — 10/14
5 Casing nut 316ss — 12/16
6 Lower casing Stl/powder coat — 1
7 Bushing Bronze — 1
*8 O Ring Buna-n 5-04017-0 1
9 Yoke CI/powder coat — 1
*10 Stem nut Steel 5-13374-0 1
*11 Stem washer 316 ss 5-12963-0 1/3
*12 Seal washer Steel 5-13203-0 1
13 Piston 316 ss — 1
*14 Casing bolt long 304 ss 5-04889-0 2
*15 Diaphragm - 36 sq. in. Nitrile 0-12968-0 1
Diaphragm - 60 sq. in. @-12986-0 1
16 Actuator stem 303 ss — 1
17 Machine screw Steel — 3
18 Casing gasket Buna-n — 1
19 Machine screw Steel — 2
*20 Indicator scale Aluminum 5-13190-0 1
*21 Specification plate Aluminum 5-13199-0 1
**22 Stop 12-15 psi Brass 5-17360-0 1
Stop 10-15 & 22-30 psi
5-17362-0 1
Optional spacer
#04-17280-00 for #36
Rev. Act. 9-15 psi &
#60 Rev. Act 12-15 psi
Special arrangement
for 22-30 range
05-04841-00
DIRECT
REVERSE
†
For Direct Shutoff - Invert Springs, Piston and Diaphragm from Reverse Shutoff Actuator.
††
To convert a K1 actuator to a K4 actuator you must add travel stop (05-17362-00) into the actuator and vice versa.
(1) For K1 & K4 ONLY - Mounts using KKIT-1
(2) For K1 ONLY - Mounts using KKIT-2
(3) For K1 ONLY - Mounts using KKIT-3
(4) Includes J-Valve travel scale
(5) For K4 ONLY - Mounts using KKIT-1 &
spacer 04-17280-00
PART # SIZE ORIFICE SEAT FOR USE WITH KKIT Includes:
STYLE K1 K4 Stem Bolt Bushing Spacer
KKIT-1 1/2 - 4 All All X X 04-17277-00 04-17278-00 -
KKIT-2 1/2 - 2 All All X 04-17281-00 07-17278-00 -
KKIT-3 1/2 - 2 All All X 04-17281-00 04-17278-00 04-17280-00
FIGURE 8 - PISTON
DIAPHRAGM ASSEMBLY
LOWER CASING
BOLT HOLE
PISTON
SPRING
RECESSES
STEM
FLATS

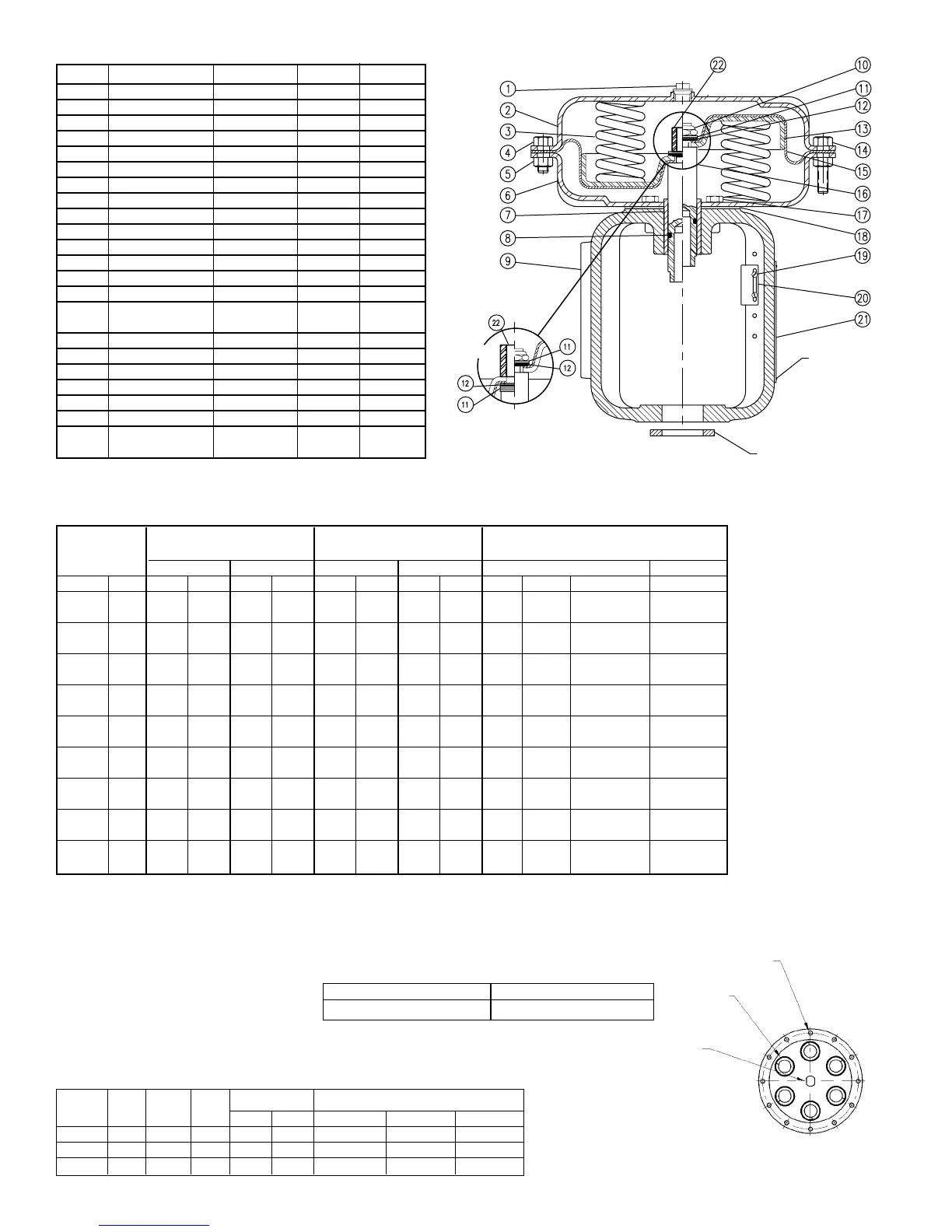

FIGURE 6 - ACTUATOR ASSEMBLY - K1 & K4
