Patterson-Kelley P-K Compact - K4 Valve Body Assembly Part Numbers; Valve Body Assembly - K4

7
ITEM VALVE SIZE
NO. PART NAME MATERIAL 2-1/2 3 4
23 Pointer Aluminum 5-12962-0 5-12962-0 5-12962-0
24 Stem bolt Brass 4-17277-0 4-17277-0 4-17277-0
25 Packing box Brass 204A104-01 204A104-01 204A104-01
26 Bonnet Ductile iron 558B113-02 558B113-02 558B113-02
27 Nut Stl/zinc pltd 5-17330-0 5-17330-0 5-17330-0
28 Yoke bushing Brass 4-17278-0 4-17278-0 4-17278-0
29 Stem bearing 303 ss SU260 SU260 SU260
30 Valve stem 303 ss 552A117-02 552A117-02 552A117-02
31 Nut 316 ss 5-17342-0 5-17342-0 5-17342-0
32 Disc 420 ss 4-08242-0 4-01918-0 4-01931-0
33 Tap stud Steel 4-10119-0 4-05443-0 4-10119-0
34 Nut Steel 5-02860-0 5-02856-0 5-02860-0
35 Blind flange Cast iron 4-17334-0 4-17337-0 4-17334-0
36 Gasket Graphite 5-02367-1 5-02369-1 5-02371-1
37 Disc stem 304 ss 4-17333-0 4-17340-0 4-17344-0
38 Nut C1018 5-02973-0 5-02973-0 5-02974-0
39 Seat Ring 420 ss 4-11539-0 4-11484-0 4-11565-0
40 Body Cast iron 4-00653-0 4-00655-0 4-00659-0
41 Cap Cast iron 4-01325-0 4-17339-0 4-17346-0
42 Pipe plug 12L14 4-03769-0 4-03769-0 4-03769-0
K4 VALVE BODY ASSEMBLY PART NUMBERS

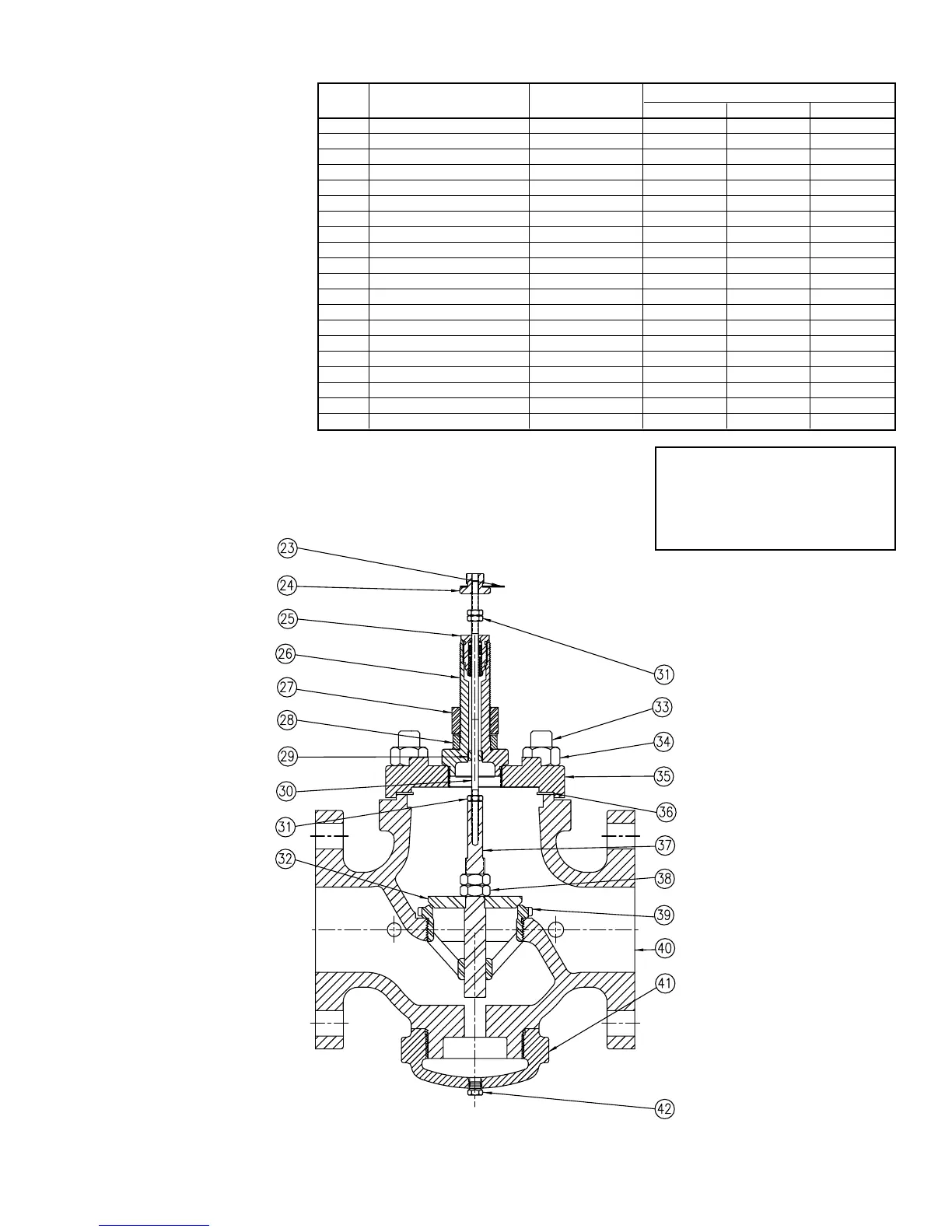

FIGURE 5 -
VALVE BODY ASSEMBLY - K4
When ordering parts, it is essential
that the valve type, size, service
and serial number be stated.
Select part by item number, but
order by part number.
Specify complete part number
when ordering.
K1 and K4 are designed and
manufactured in accordance
with Article 3, Section 3 of the
Pressure Equipment Directive.
