Paul FOCUS 200 Base Series User Manual

16

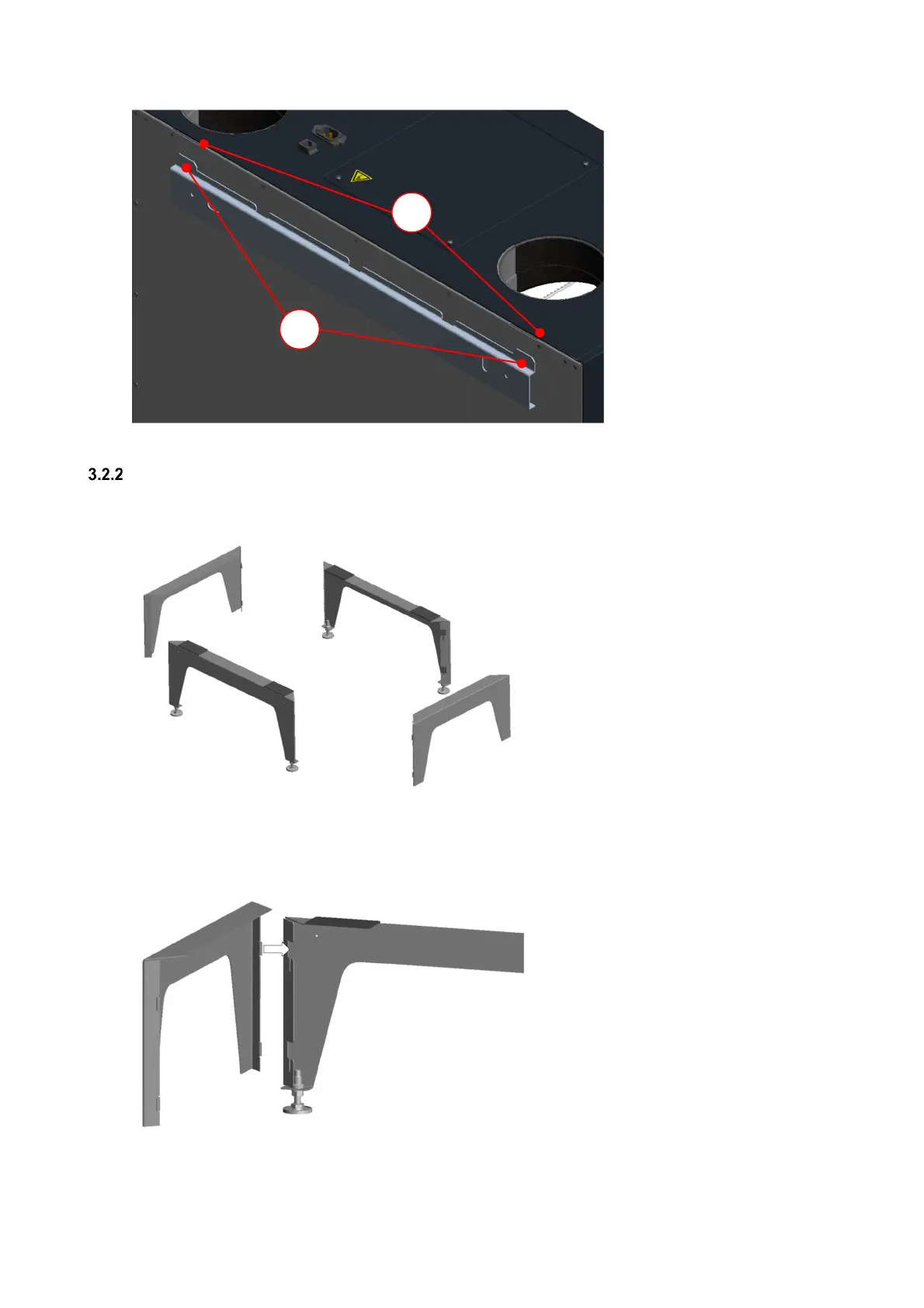

Fig. 12: Hooking the unit into the fastening sheet
Mounting the unit on the floor stand
The dimensions of the floor stand are as follows: footprint = 620 x 292 mm; variable height adjustment = between
280 mm and 320 mm using adjustable feet. The floor stand consists of two long base parts (each with two adjustable
feet) and two short base parts.
Fig. 13: Individual parts of the floor bracket
Assemble the individual parts of the floor stand as shown in the illustrations. In doing so, proceed as follows:
1. Working in the direction of the arrow, place the short base part at right angles to the long base part at a staggered
height
.
Fig. 14: Attaching the base parts
2. Working in the direction of the arrow, push the lugs A of the short base part into the guide slots B of the long
base part so that they engage and fix the two base parts together.
E
B
