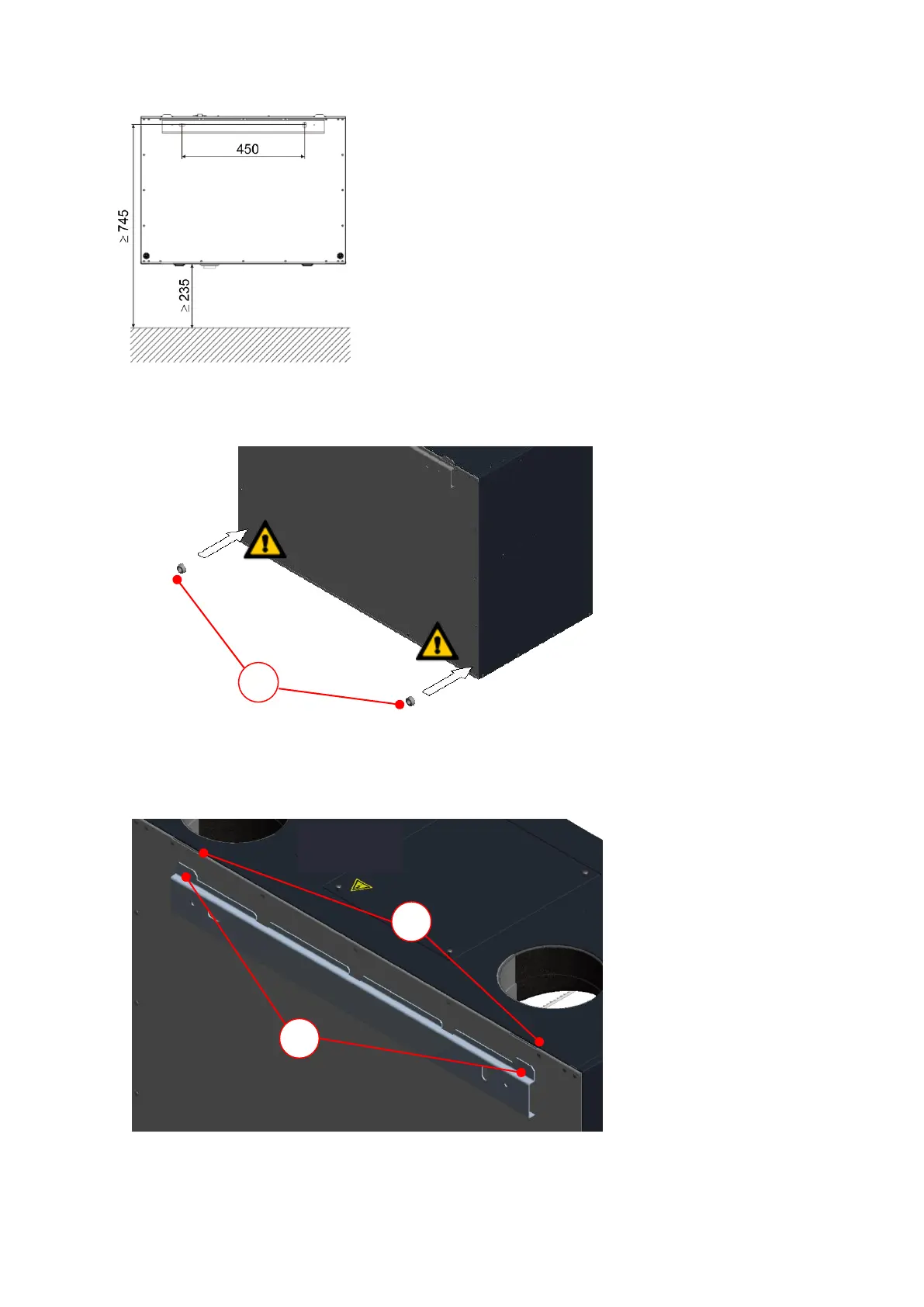

Fig 10: Wall mounting position to the finished floor (version LEFT)
2. Glue each piece of the enclosed, self-adhesive rubber buffer D in the bottom corner region on the
rear panel of the device.
Fig 11: Mounting of the rubber puffer
3. Hang the FOCUS on the mounting sheet by hooking the tongues B in the slot openings E each of
which are situated at the top of the fold of the rear panel.
Fig 12: Hanging into the mounting sheet
