Mounting on a mounting frame 3.2.2
The area of the mounting frame has dimensions of 620 x 292 mm and is vertically adjustable between
280 mm and 320 mm using mounting frame feet. The mounting frame consists of two long side parts with
the frame feet and two short side parts.

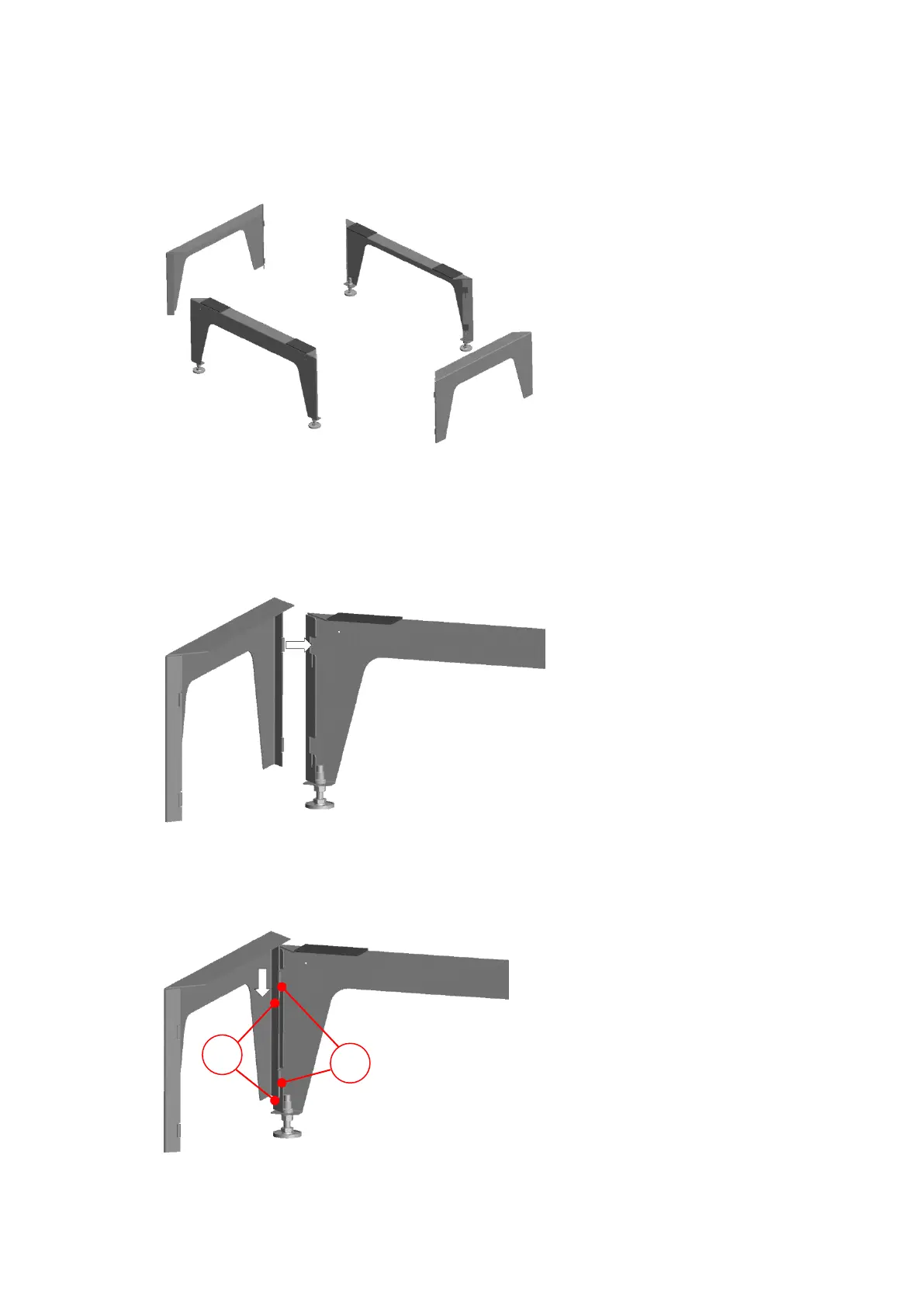

Fig 13: Parts of the mounting frame
Mount the individual parts of the mounting frame in accordance with the figures. Thereby, proceed as
follows:
1. The short side part is vertically offset and to set at right angles to the long side part in direction of
arrow.
Fig 14: Put together the footboards
2. The tongues A of the short part are snapped into guiding slots B of the long part to fix both parts
together in direction of the arrow.
Fig 15: Fixing of the footboards
