Paul FOCUS 200 Base - Technical Desciption; Designs Layout Air Connection; Technical Specification

29
LED 2
lights dark
Normal operating mode
flashes
Temperature downstream of preheater too low, fans are
switched off
flashes 2x per second
Temperature downstream of preheater < 1K below
threshold value
flashes 3x per second
Temperature downstream of preheater < 2K below
threshold value
flashes 4x per second
Temperature downstream of preheater < 3K below
threshold value
LED 3
lights
Preheater heats
Tab. 10: Overview visualising operating modes

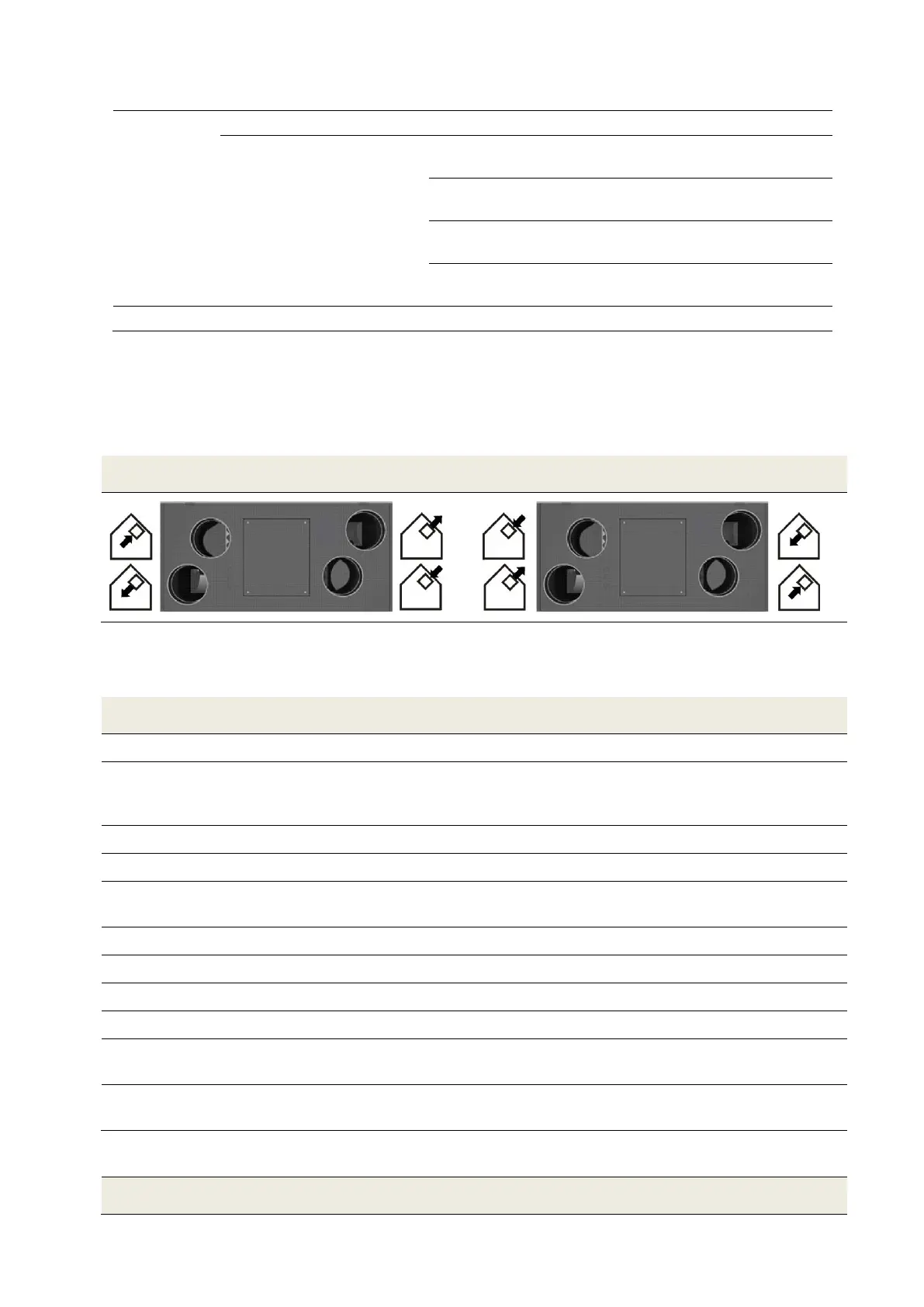

Technical desciption 3.7
Designs layout air connection 3.7.1
Version LEFT
Version RIGHT
Tab. 11: Overview types of designs layout air connection
Technical specification 3.7.2
General specification
Description / value
Type of heat exchanger
Counter flow channel heat exchanger of plastic
Casing / internal lining
Steel sheet galvanised, powder-coated, thermal
bridge-free; internal lining made of expanded
polypropylene EPP for thermal and sound insulation
Casing / internal lining
DN 125 (sleeve dimension)
Weight
25 kg
Electrical connection
230 VAC, 50-60 Hz;
2 m power supply cable with "CEE 7/4" connection
Connected load
140 W
Protection class
I
Degree of protection
IP 30
Limitations of use
-20 to 40 °C
Assembly site
Frost-free interior area;
Ambient conditions: < 70 % r. F. at 22 °C
Installation position
Horizontally wall mounting or on mounting frame
(Option)
Tab. 12: Generell specification
Operating data
Value
