3. Now insert both the other two footboards together.

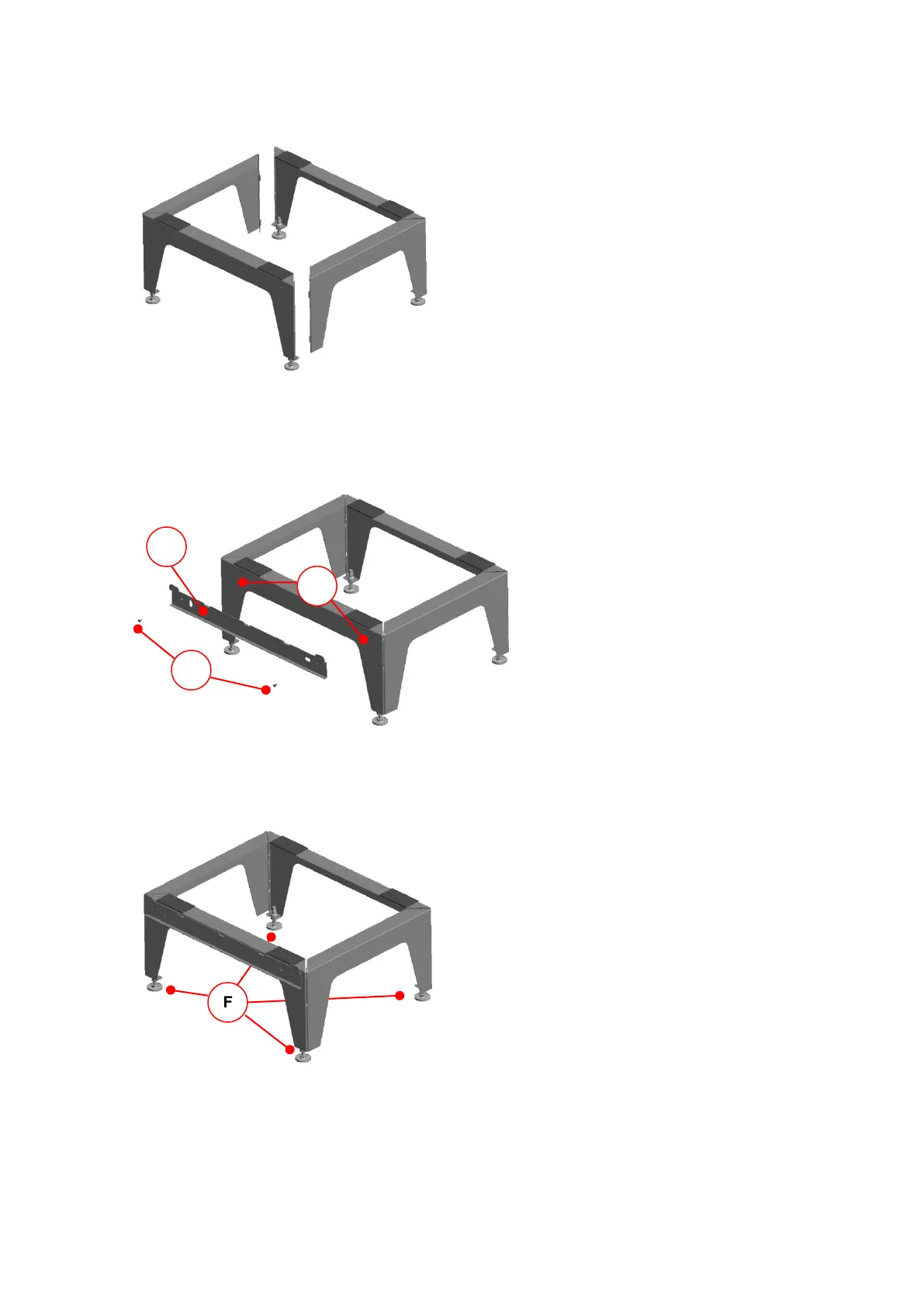

Fig 16: Each two together fixed footboards
4. Mount the mounting sheet C with the tongues, which point upwards, to a long side part of the
mounting frame F. In doing so, screw both of the sheet metal screws D in the designated bore
holes E of the side part.
Fig 17: Screwing of the mounting sheet to the mounting frame
5. Now adjust the completed mounting frame perpendicularly and stably to the designated floor space
via the height-adjustable feet F of the mounting frame.
Fig 18: Adjust the mounting frame
6. Put the FOCUS on the mounting frame by hooking the tongues in the bottom slot openings of the
rear panel. See Fig 12
