PIPING & CONTROLS

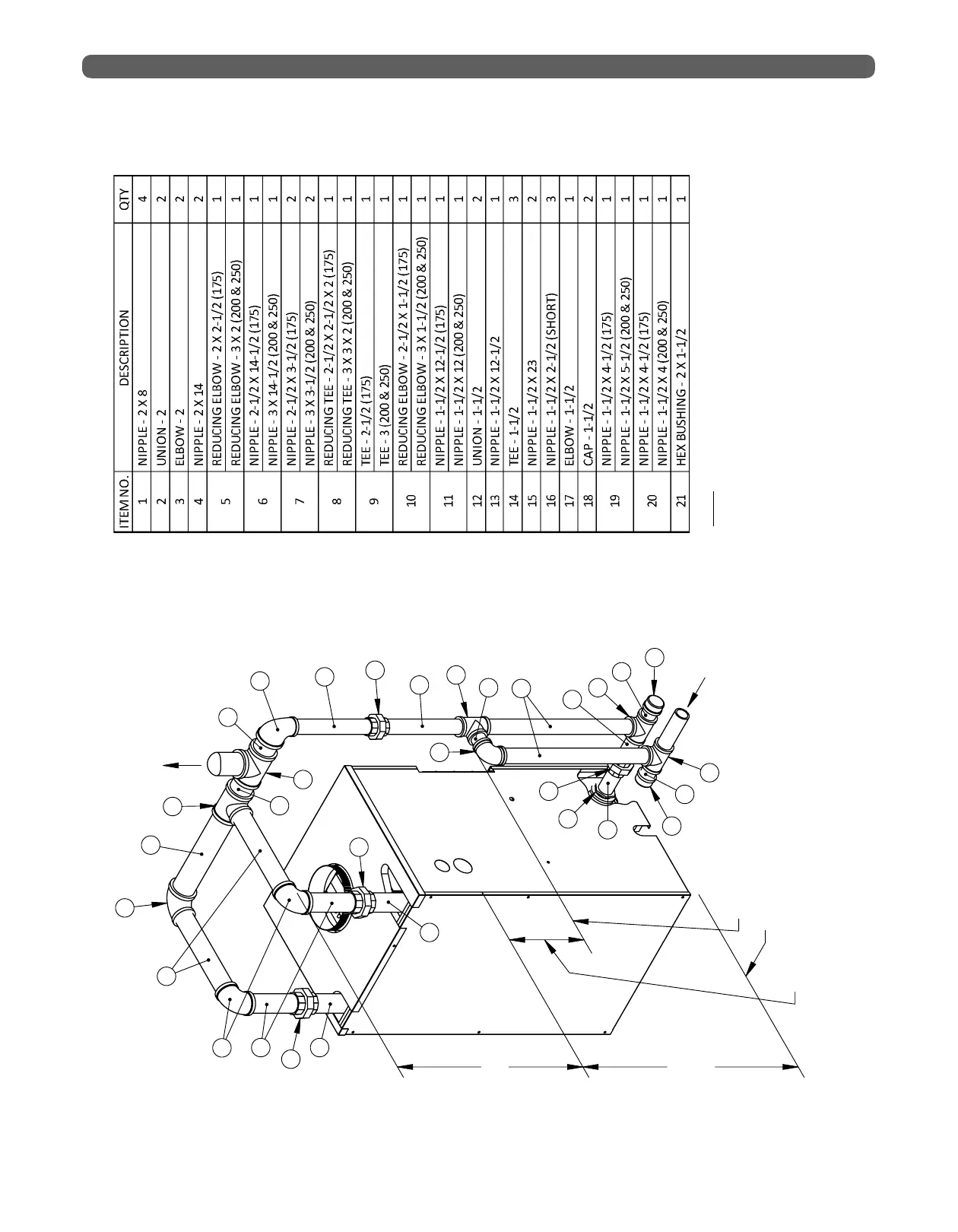

Figure 3.3: Steam; Near Boiler Piping - EC(T)(-e)-05
STEAM
SUPPLY
CONDENSATE
RETURN
24"
32-1/4"
N.W.L.
1
4
3
5
10
11
13
16
15
20
12
14
14
14
17
19
12
18
16
18
16
FLOOR LINE
1
2
2
1
6
NORMAL
WATER LINE
BOTTOM
OF
HEADER
TOP OF ELBOW
7
7
8
9
21
NEAR BOILER PIPING - DUAL SUPPLY: MODELS EC(T)-05-175-200-250
EC8055 R2
NOTE
: Nipple lengths may require modification
due to variations in thread engagement and
machining. Contractor should carry assorted
length nipples. Not responsible for discrepancies.
2" TO 4" BELOW NORMAL WATER LEVEL
To Next Page
