6
Motherboard User’s Guide

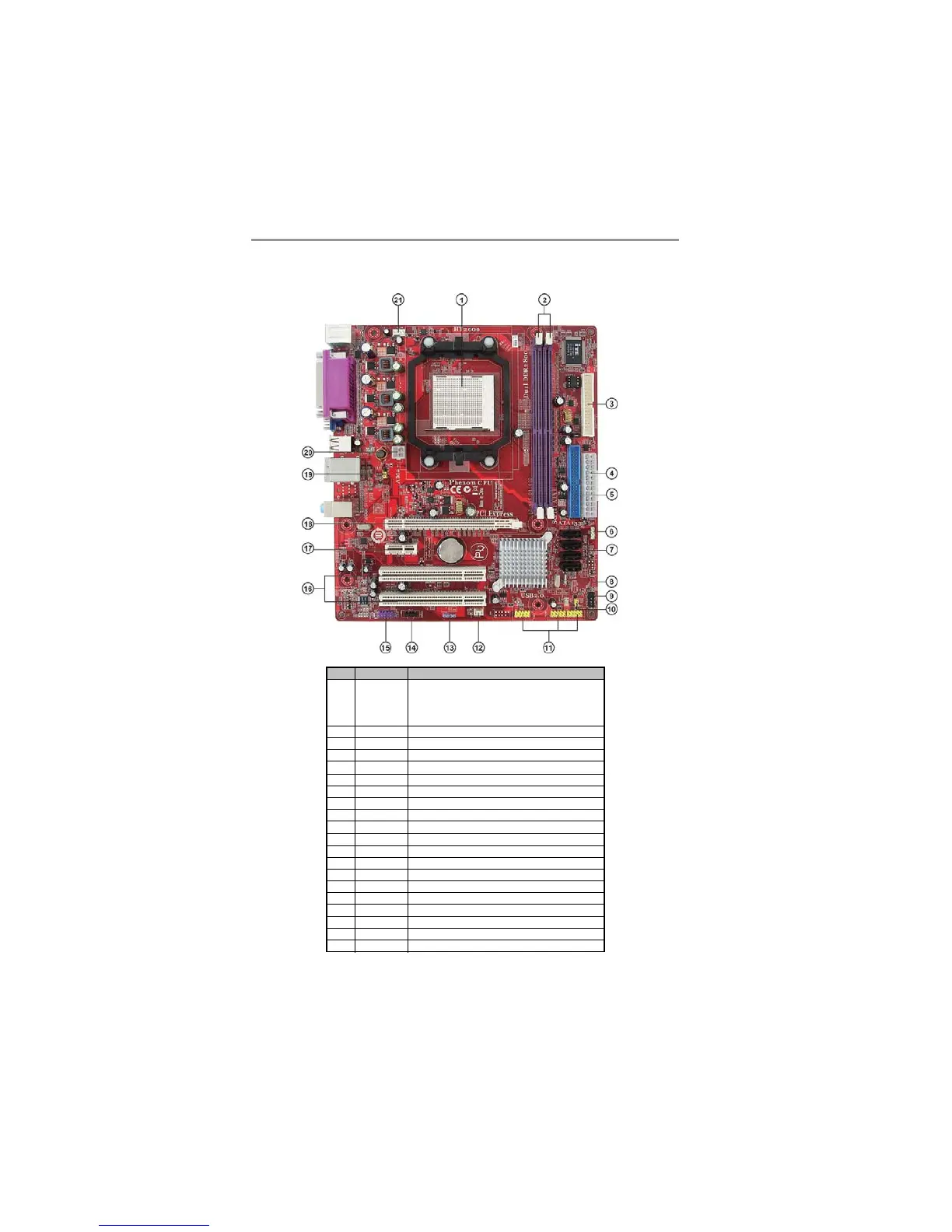

Motherboard Components
ITEM LABEL COMPONENTS
Socket AM2+/AM2 for AMD Phenom
TM
II/AMD
Phenom
TM
/AMD X2 Dual-Core/Athlon
TM
64/
Sempron
TM
processors
2 DIMM1~2 240-pin DDR2 SDRAM slots
3 FDD Floppy disk drive connector
4 PWR1 Standard 24-pin ATX power connector
5 IDE1 Primary IDE connector
6 SPK1 Speaker header
7 SATA1~4 Serial ATA connectors
8 CLR_CMOS Clear CM OS jumper
9 PANEL1 Front panel switch/LED header
10 USBPWR_F Front Panel USB Power Select Jumper
11 F_USB1~3 Front Panel USB headers
12 SYS_FAN System cooling fan connector
13 SPDIFO1 SPDIF out header
14 CD_IN Analog audio input header
15 F_AUDIO Front panel audio header
16 PCI1~2 32-bit add-on card slots
17 PCIEX1 PCI Express x1 slot
18 PCIEX16 PCI Express x16 slot for graphics interface
19 USBPWR_R Rear Panel USB PS/2 Power Select Jumper
20 PWR2 4-pin +12V power connector
1 CPU Socket
