ENGINE MAINTENANCE - 11

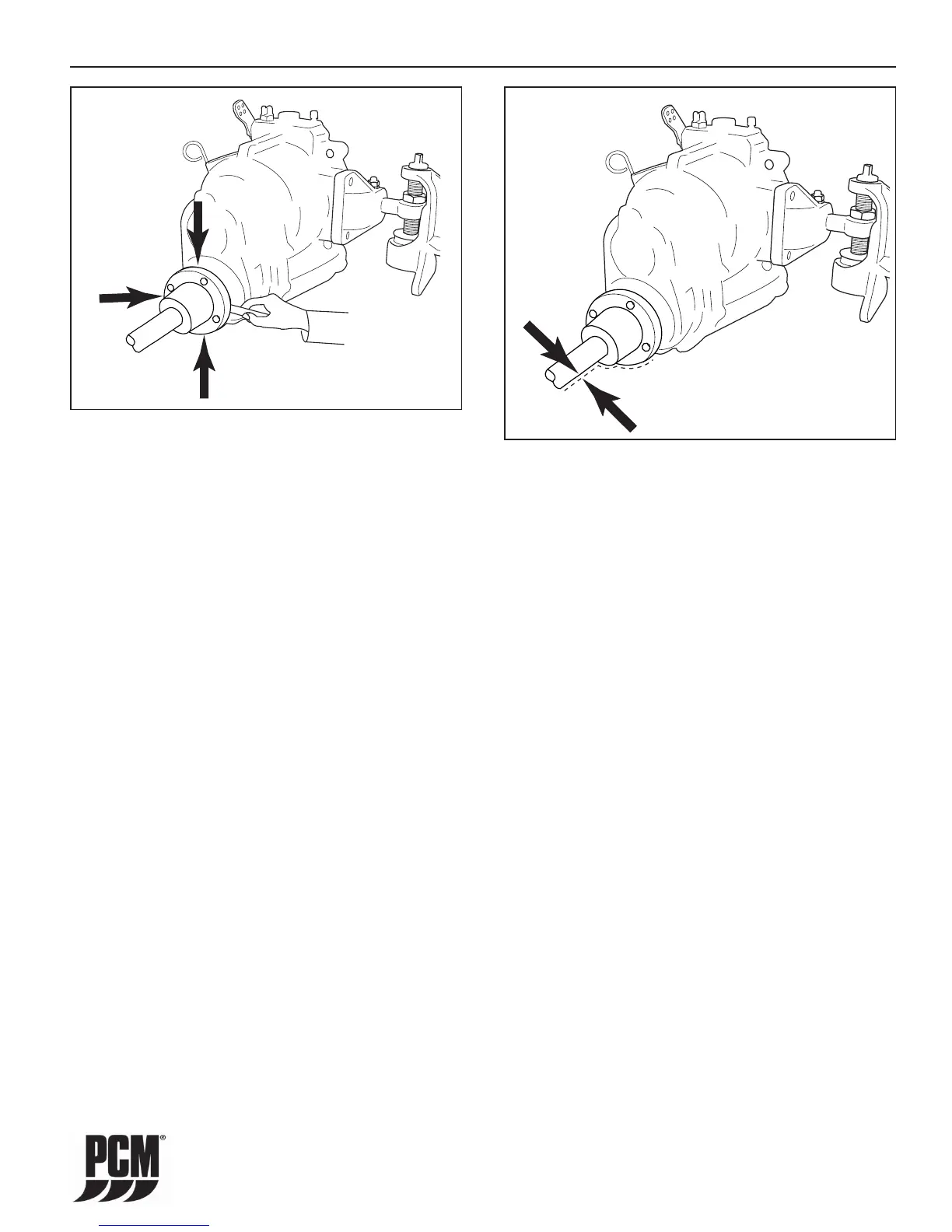

Figure 11-22
Centering Propeller Shaft
4.
Check for any angular misalignment. Hold
coupling faces tightly together and check for a
gap between the coupling faces, with a 0.003 in.
(0.07 mm) feeler gauge, at 90-degree intervals.
Figure 11-23
Angular Alignment
