INSTRUMENTATION WIRING DIAGRAMS - 16

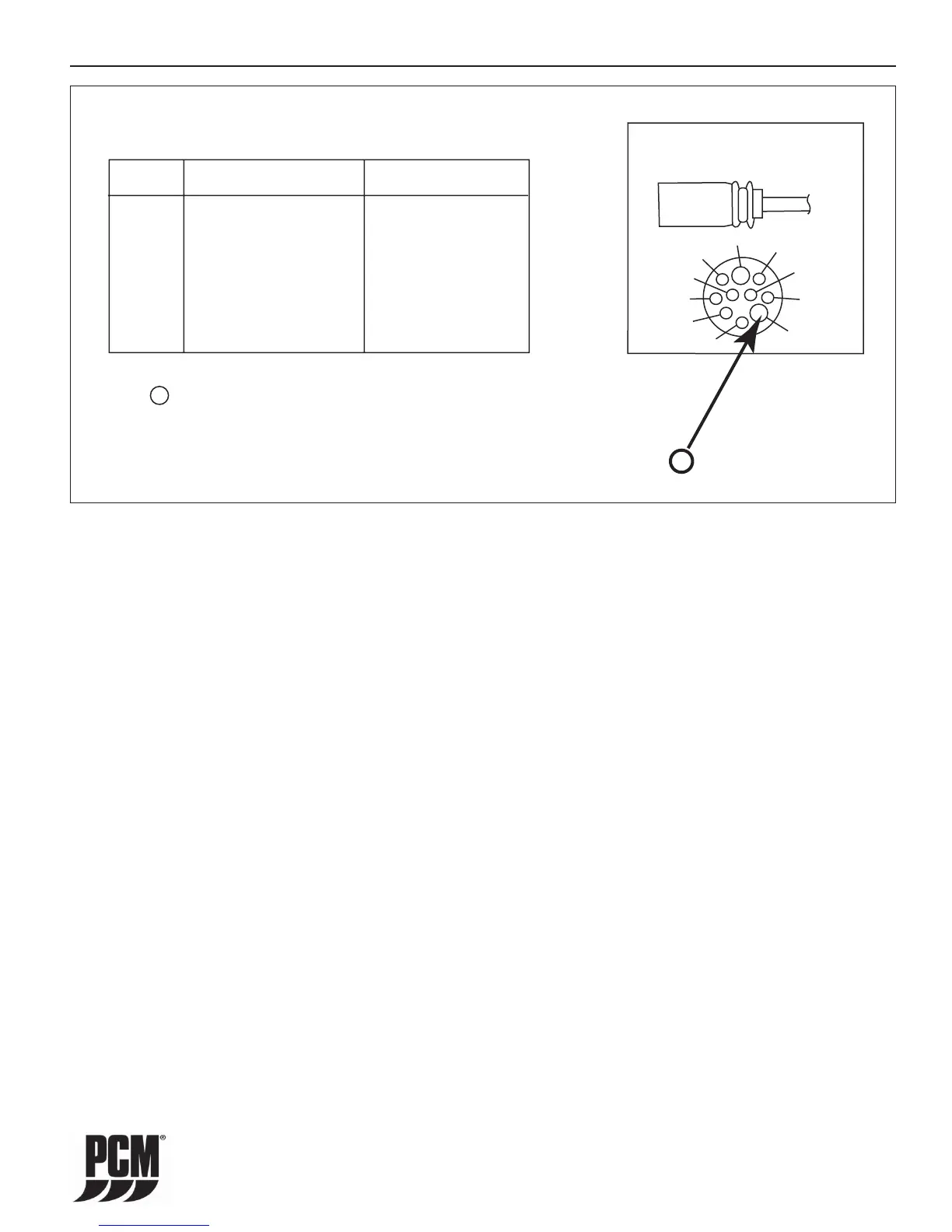

Figure 16-1 Typical Instrumentation Wiring
CIRCUIT CIRCUIT ENGINE HARNESS
NUMBER NAME WIRE COLOR
1. GROUND BLACK
2. TACHOMETER GRAY
3. WATER TEMPERATURE TAN
4. ENGINE ALARM TAN/BLACK
5. IGNITION PURPLE/WHITE
6. BATTERY RED/WHITE
7. STARTER YELLOW/RED
8. OIL PRESSURE LT. BLUE
9. CHECK ENGINE LIGHT BROWN/WHITE
10. DATA LINE ORANGE/BLACK
NOTE: ENGINE HARNESS WIRED FOR PANELS USING VOLTMETERS ONLY.
NOTE
A
: POWER FOR A FUSED ACCESSORY PANEL MAY BE TAKEN FROM
THIS LOCATION. LOAD CANNOT EXCEED 30 AMPS.
WIRE HARNESS COLOR CHART
10
4
3
2
ENGINE
HARNESS
5
6
7
9
8
1
A
To Next Page
