3.2.5 Back Light / Enter Key
Backlight On/Off
Use Enter key to set up the Menu.

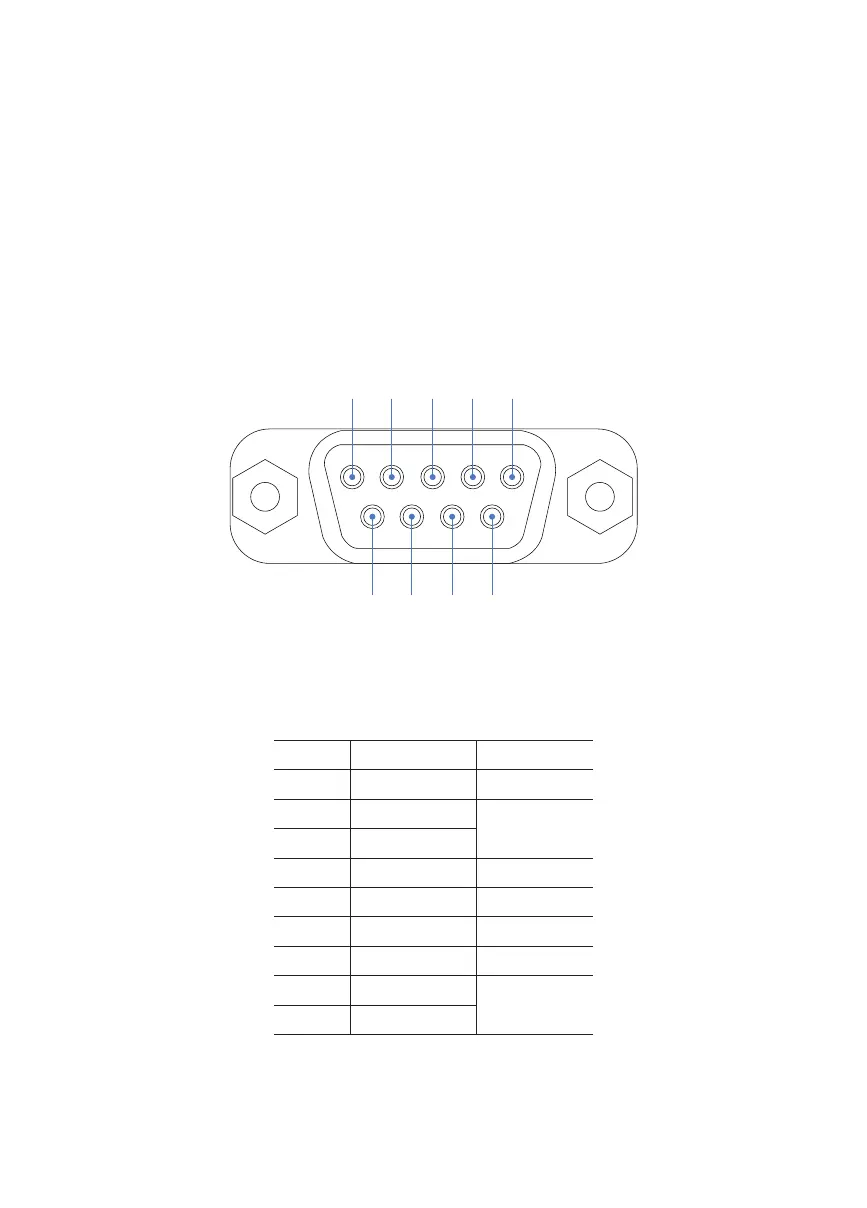

[ D-Sub 9 Pin Map ]
Figure 2. RS-232 Port
Table 1. Pin outs
5
6
7
8
9
4
3
2
1
Pin No
Description
Note
1
GND
2
RX
RS232
3
TX
4
Analog Out+
Analog Output
5
GND
6
Ext. Switch In
7
Alarm Out
8
Ext. Power +
External Power
9
Ext. Power -
31
6
8
Table of Contents
Default Chapter
2
Table of Contents
2
1 General Introduction
3
2 Abbreviations & Initials
4
3 Introduction
4
Specification
5
Front / Back Panel
6
4 Operation
8
Key Operation
8
Power on
8
Peak
8
Unit
8
Zero
8
Back Light
9
Menu/Function Select
9
Alarm
9
Pressure Switch Test
11
Calibration
14
Baud Rate
15
RS232 Communication
16
Auto Power off
18
Data Logger
19
Storage Data Clear
21
End
21
5 Maintenance Adjustments and Calibration
22
Zero Adjustment
22
Pressure Calibration
22
Analog Output Calibration
22
6 Troubleshooting
23
7 Appendix
24
Warranty Statement
24
Accessory
24
Table of Pressure Unit Conversion
25
