Connections and Controls
Connections and
controls
High Purity Nitrogen Generator
UM – NM20ZA – Rev 13

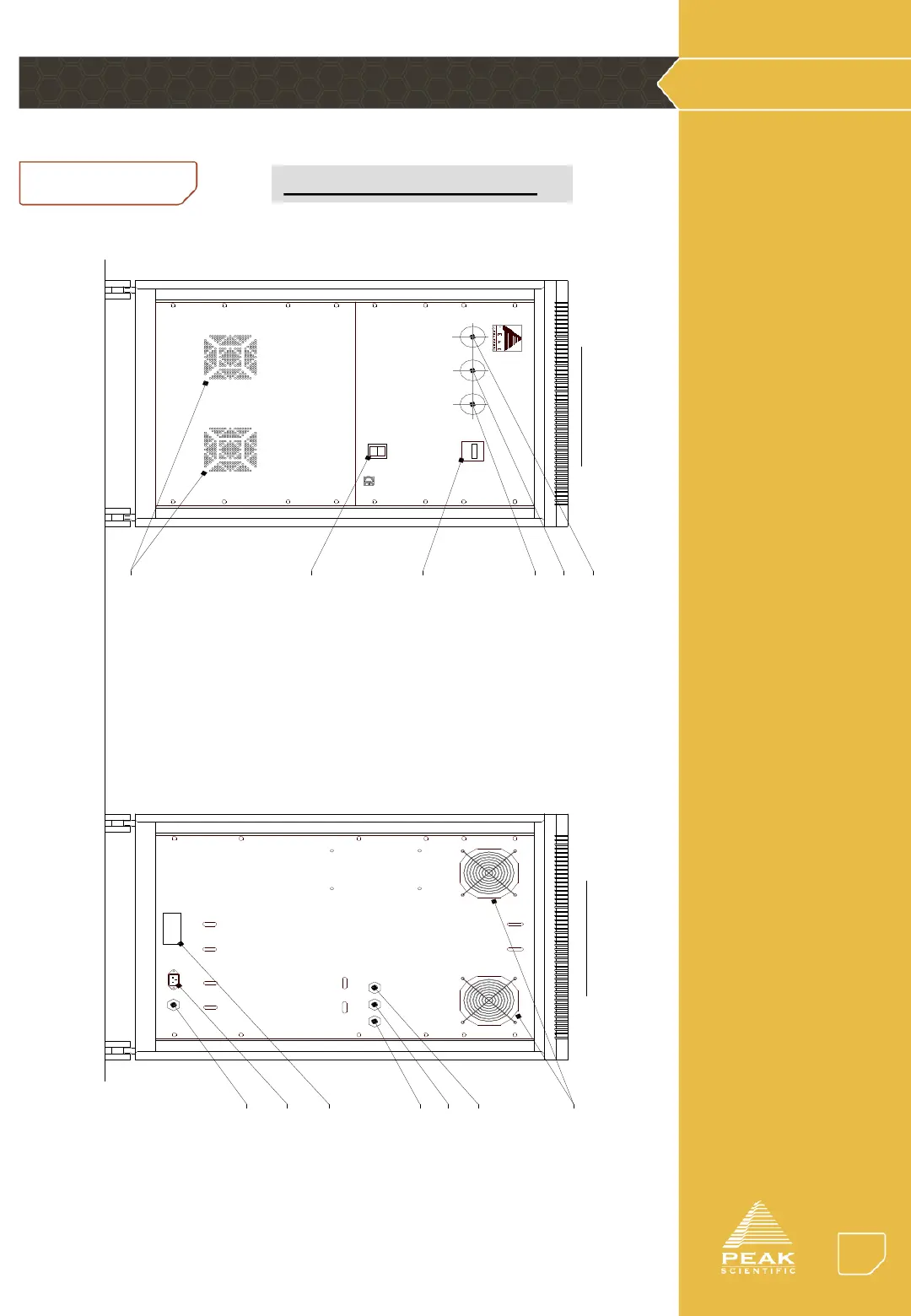

Exhaust Gas Pressure Gauge.
Source Gas Pressure Gauge.
Curtain Gas Pressure Gauge.
On/Off Switch.
Air Inlet Fans.
Elapsed Time Meter.
Curtain Gas Outlet.
Source Gas Outlet.
Exhaust Gas Outlet.
Serial Plate.
Mains Power IEC. Socket.
Drain Connection.
Air Outlet Fans.
CURTAIN SOURCE EXHAUST
DRAINSUPPLY
Rear View.
Front View.
1
0
Source GasCurtai n Gas Exhaust Gas
Gas Generator
