9
D. Position powerside columns
Lay down two columns on the installation site parallelly, position the powerside
column according to the actual installation site. Usually, it is suggested to install
powerside column on the front-right side from which vehicles are driven to the lift
(See Fig. 17 & Fig. 18).

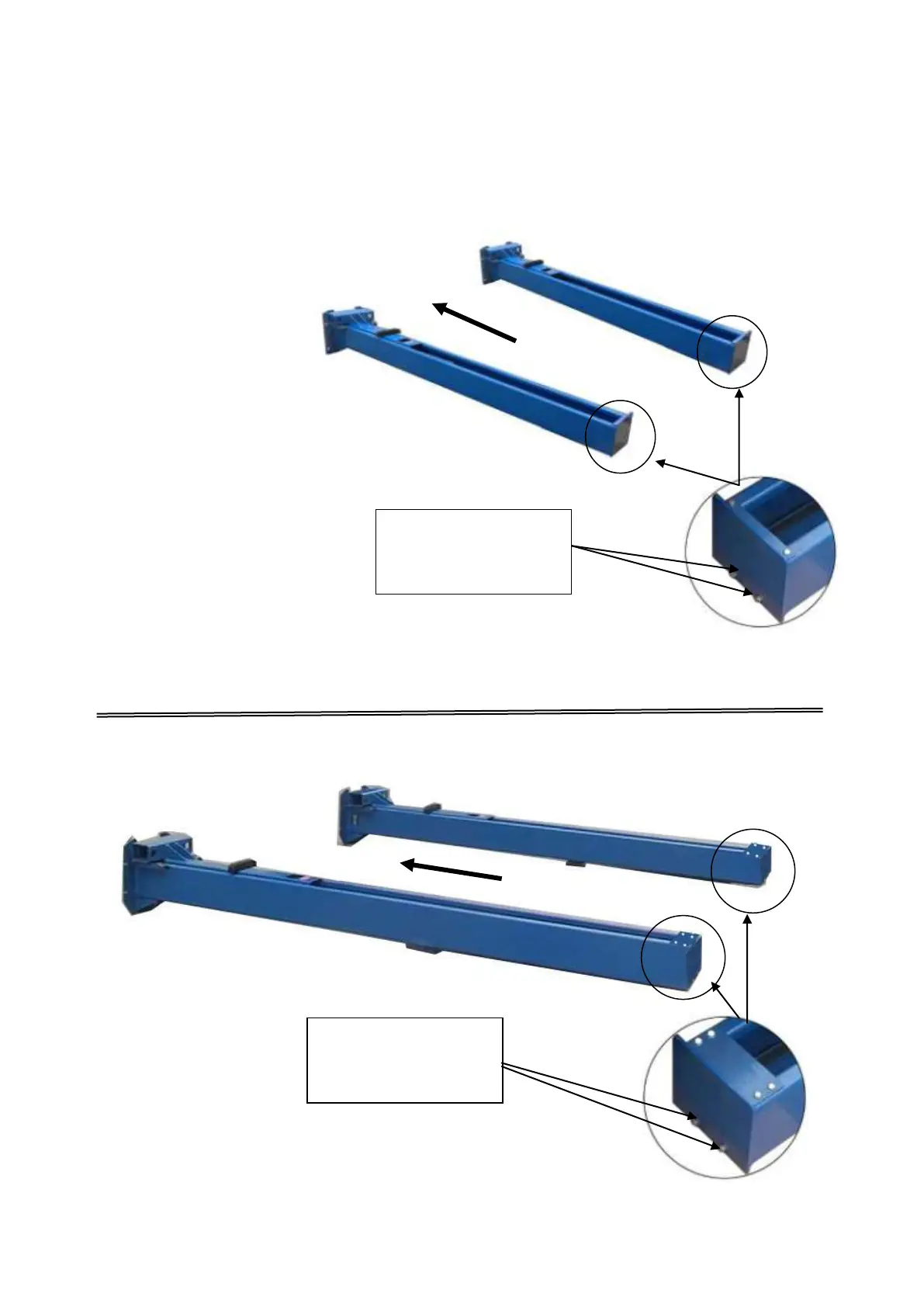

Fig. 17 Model 209
Fig. 18 Model 209X
Car-in direction
Powerside column
Offside column
Assemble topplate using
M10*35 hex bolt with
nut and lock washer
Car in Direction
Powerside column
Offside column
Assemble topplate using
M10*35 hex bolt with
nut and lock washer
