10
E. Connecting the cables

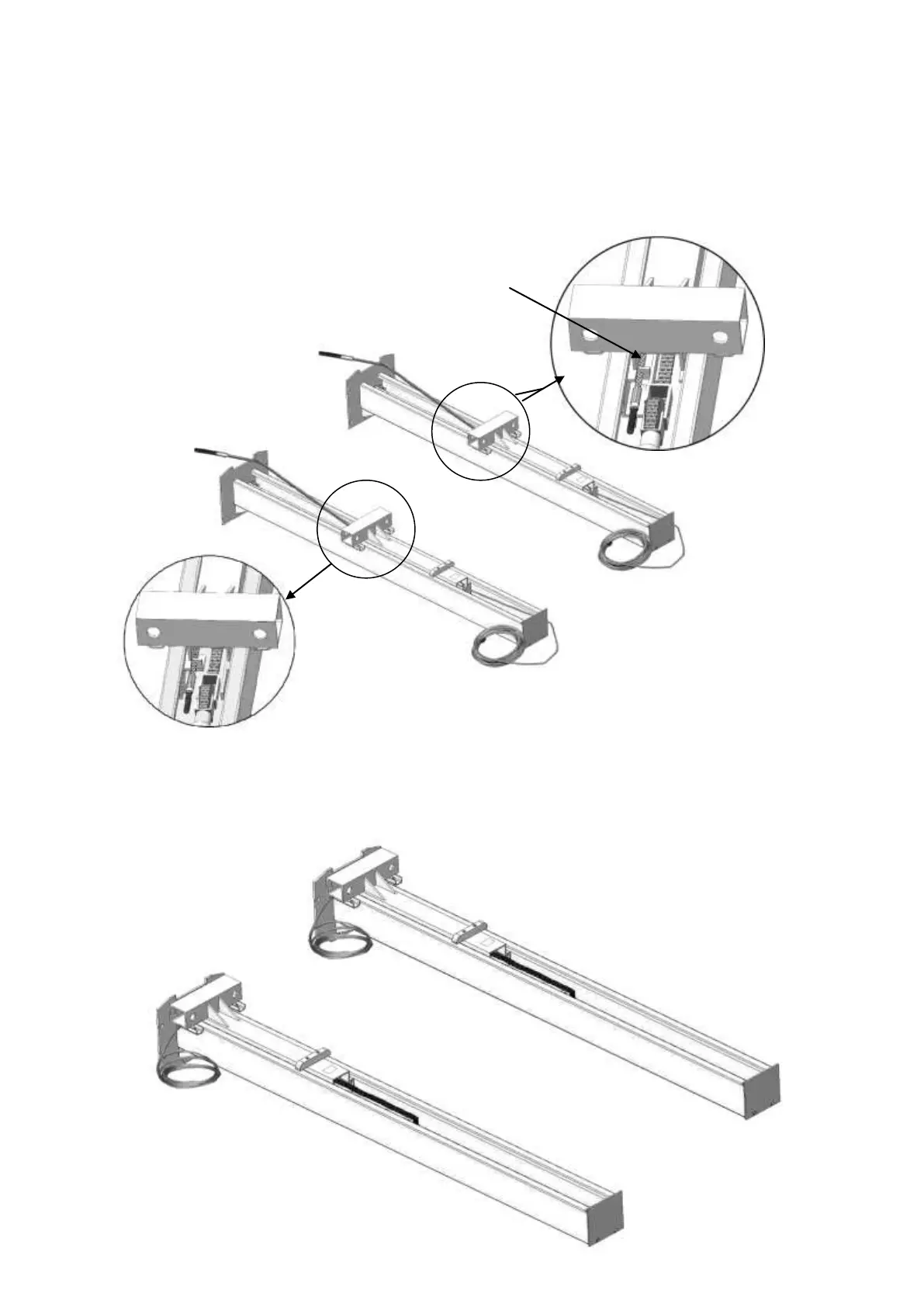

1．Put down columns and then push the carriages higher than chain pulley (See Fig. 19).
2．Push the carriages to the bottom of the columns (See Fig. 20).
Fig. 19
Fig. 20
Push the carriages higher than chain
pulley, cable pass through the top of the
carriages and pass through the hole of the
bottom steel plate of the carriages
Pull out cable
