11

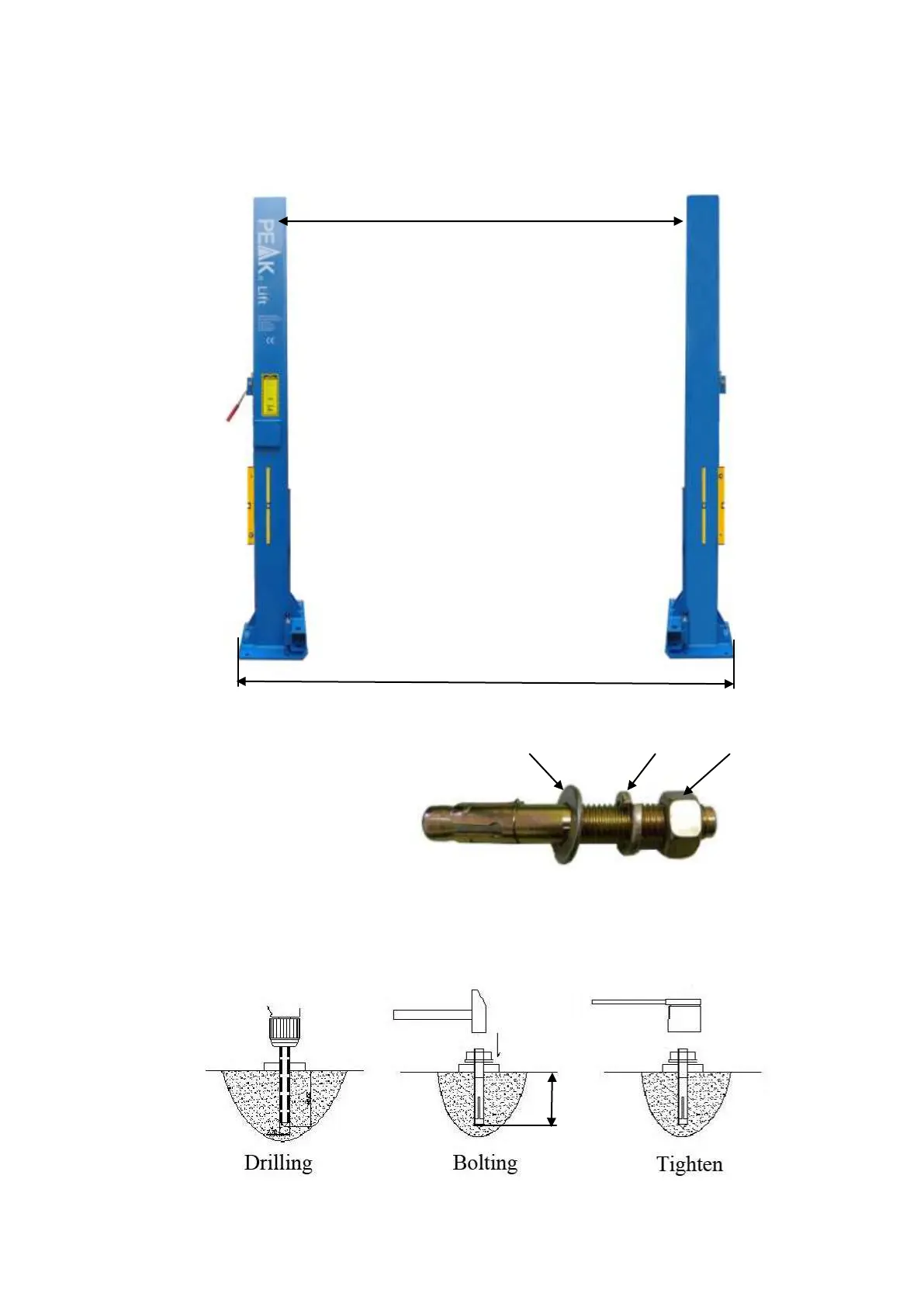

F. Position columns (See Fig. 21)
Check the columns plumbness with level bar, and adjusting with the shims if the
columns are not vertical.
G. Fix anchor bolts
1. Prepare anchor bolts (See Fig. 22).
Fig. 22
2. Using the prescribed rotary hammer drill, and drill all the anchor holes and install the
anchor bolts. Then tighten the anchor bolts (See Fig. 23).
Note: Torque of Anchors is 117N.m .Minimum embedment of Anchors is 90mm.
Fig. 23
Fig. 21
Model 209: 2780 mm
Model 209X: 2850 mm
Model 209: 3350 mm
Model 209X: 3460 mm
Lock washer
Washer
Nut
90mm
