20

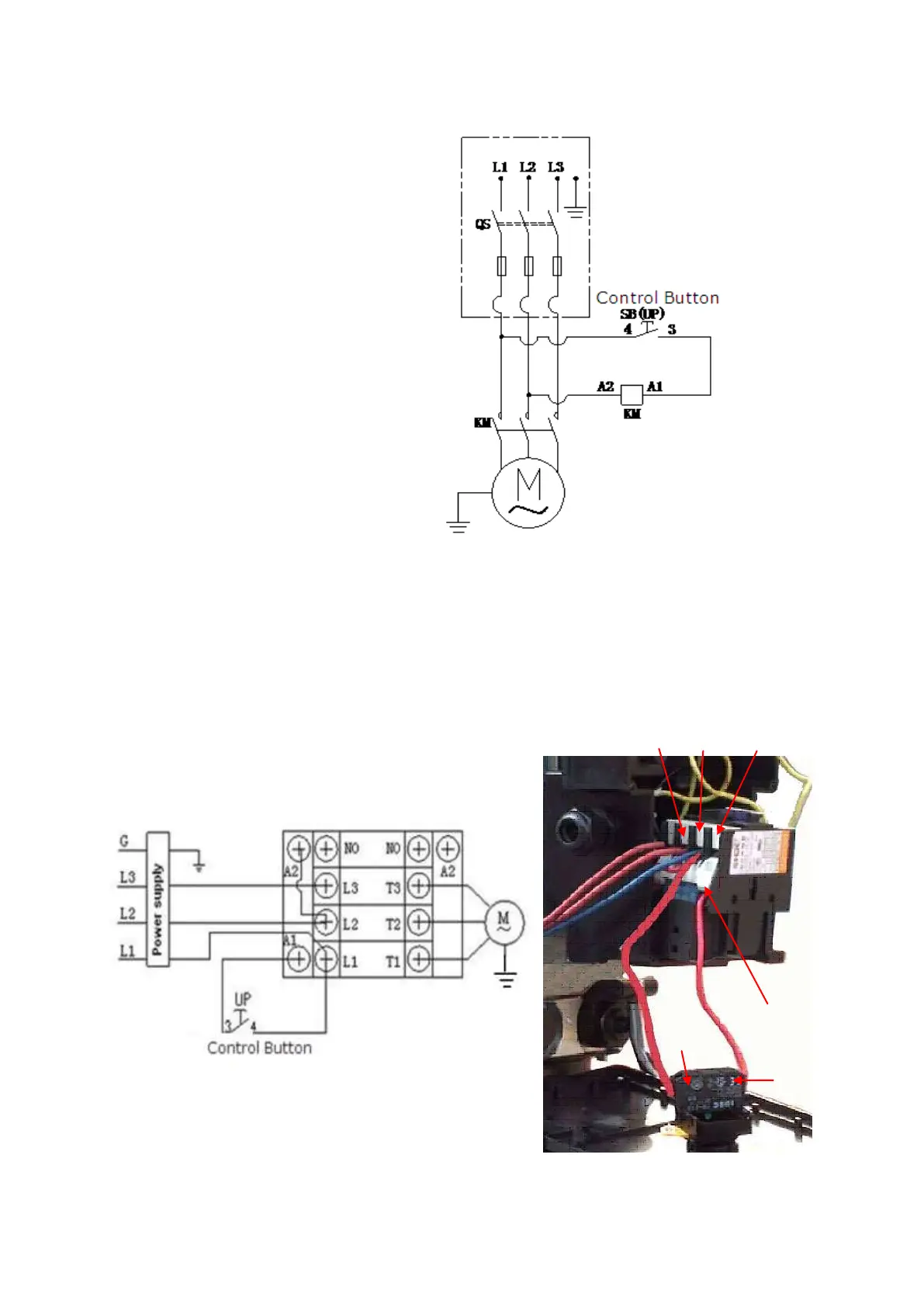

Three phase motor
1. Circuit diagram (See Fig. 37)
2. Connection step (See Fig. 38)
a. The source wires L1, L2, L3 are connected with terminals of AC contactor
marked L1, L2, L3 respectively.
b. Terminal of AC contactor marked L1 is connected with terminals 4# of control
button. Terminal A1 of AC contactor is connected with terminals 3# of control
button.
Fig. 38
L1
L2
L3
A1
3#
4#
Fig. 38
Three phase
Fig. 37
