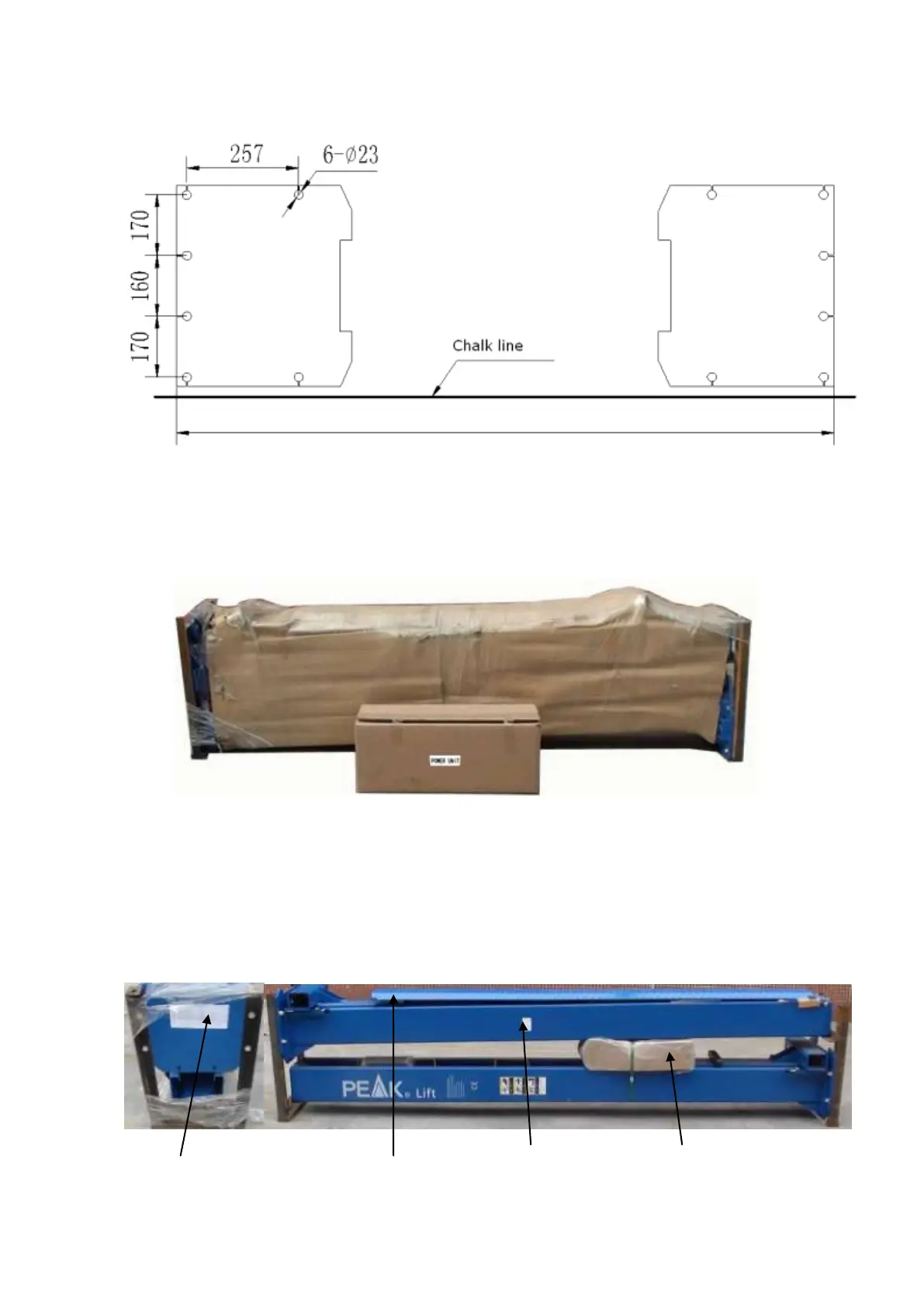

C. Check the parts before assembly.
1. Packaged lift and hydraulic power unit (See Fig. 9).
Fig. 9
2. Move the lift aside with fork lift or hoist, and open the outer packing carefully, take off
the parts from upper and inside the column, take out the parts box, check the parts
according to the shipment parts list(See Fig. 10).
Fig. 10
Shipment Parts list
Floor cover
Parts box
Serial No.
Fig. 8 Model 209X
3460mm
