Peak 212 - Synchronization Cable Routing

13
2. For width distance with 3692mm
2.1. Pass through the cable from the bottom to the top of the carriage, the fitting of
cable pass through the hole of the carriages and be screwed with two cable nuts.
(See Fig. 21,22).

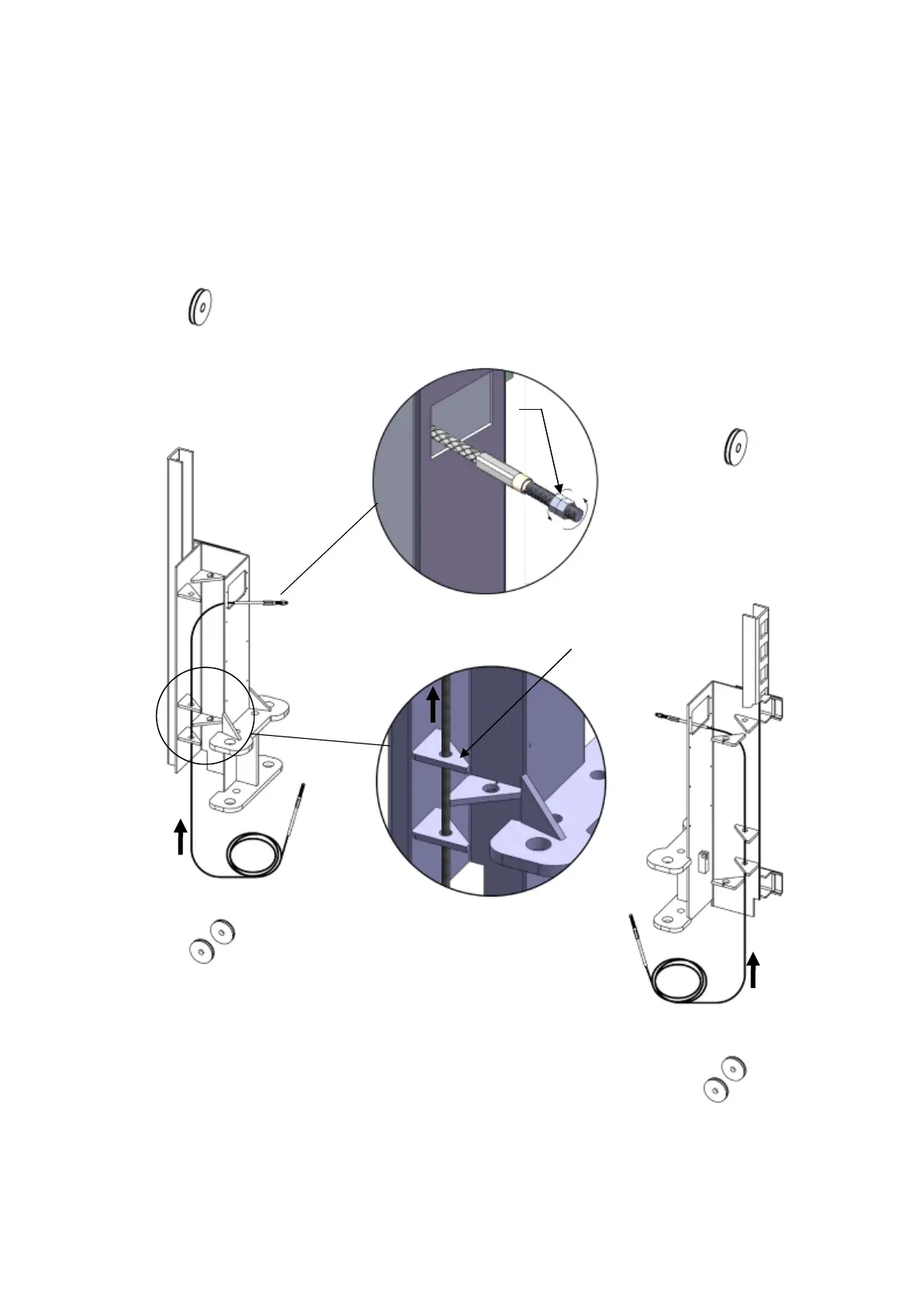

Cable pass
through direction
Screwed with
two cable nuts
Pass through the cable from
the hole of two cable connect
plates of the carriages.
Cable
connecting plate
71
Cable pass
through direction
Fig. 21
