Peak 212 - Exploded View Details; Lifting Arm Assembly; Chain Pulley Bearing Assembly

23

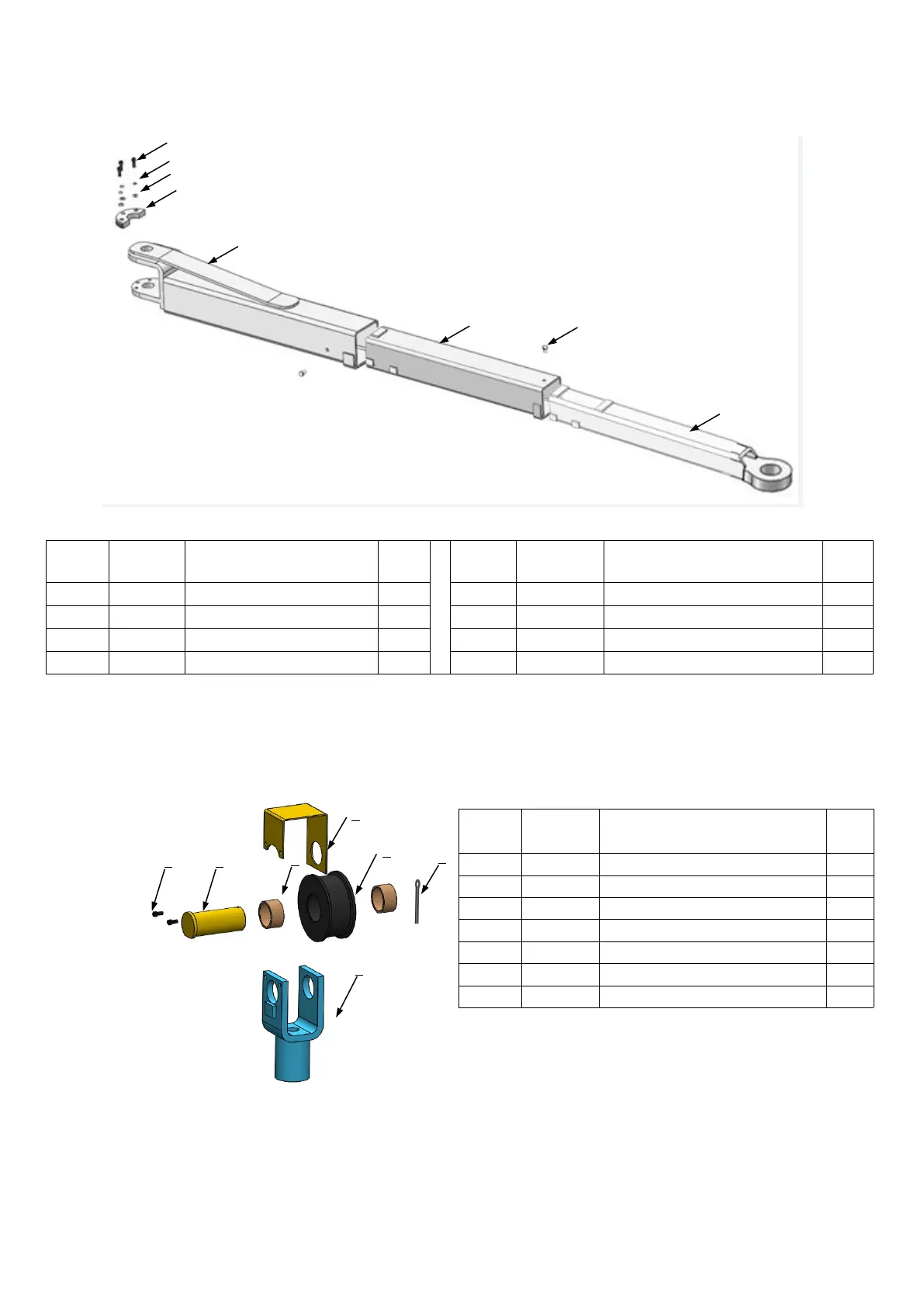

a. Exploded view of lifting arm assembly (10207062)
b. Exploded view of chain pulley bearing assembly (11207681):
Item
Part#
Description
Qty.
Item
Part#
Description
Qty.
1
10206048
M10*30 hex bolt
12
5
11207012A
Outer arm
4
2
10209039
φ10 washer
12
6
11217337
Middle arm
4
3
10209022
φ
10 washer
12
7
10201149
Screw M8*12
8
4
11206049
Moon gear
4
8
11217836
Inner arm
4
Item
Part#
Description
Qty
1
81400335
Socket bolt M5*10
4
2
11207006
Pin for chain pulley
2
3
10420132
A
Bronze bush for chain pulley
4
4
11207693
Chain stop plate
2
5
11207007
Chain pulley
2
6
10201005
Split pin (φ4*50)
2
7
11207008
Chain pulley seat
2
1
2
3
4
5
6
7
8
Fig 36
Fig 37
1
2
3
6
5
7
4
