Peak 212 - Oil Cylinder Assembly

24

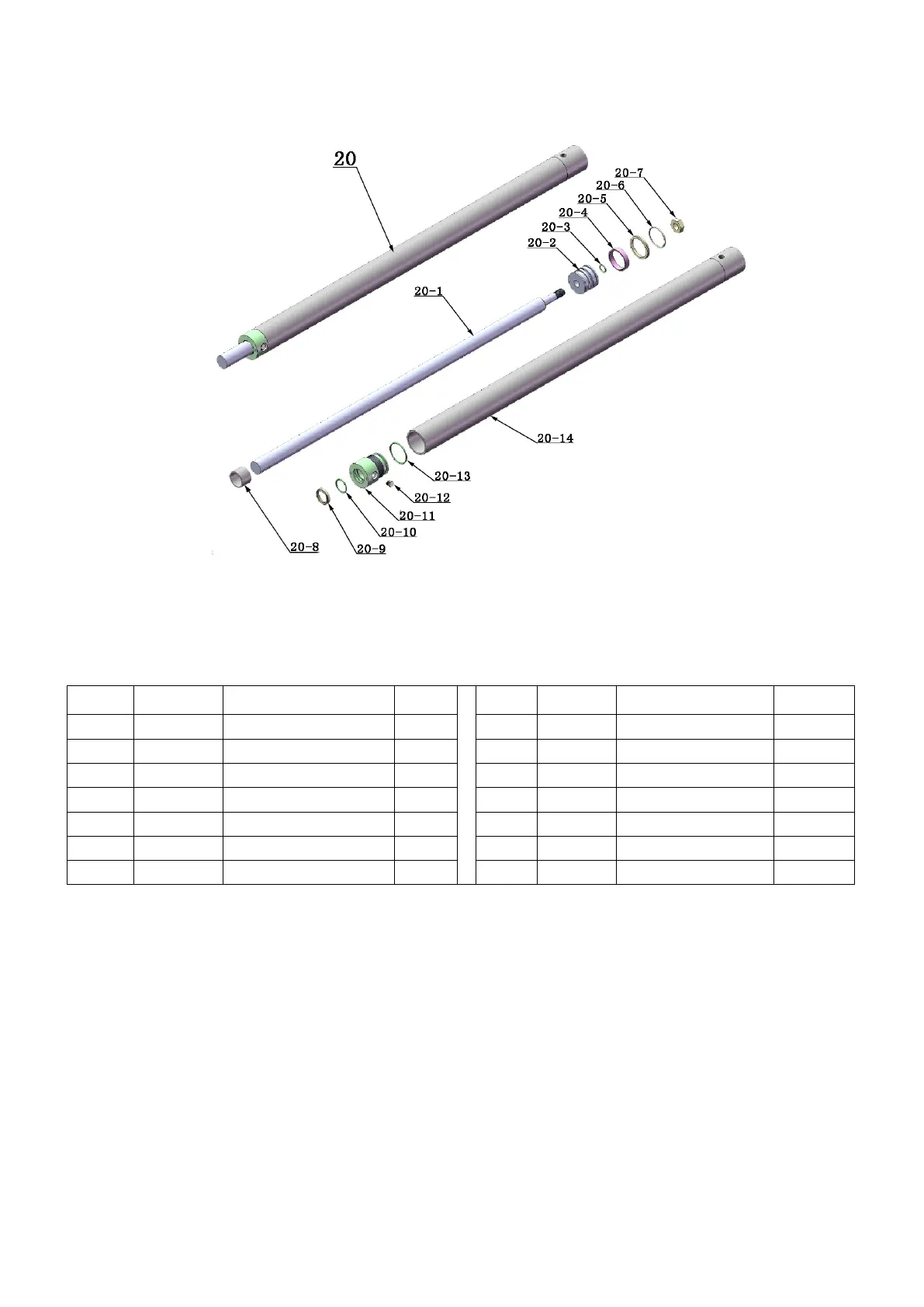

c. Exploded view of the oil Cylinder (10207010)
Cylinder parts list
Item
Part#
Description
Qty
Item
Part#
Description
Qty
20-1
11207027
Piston Rod
2
20-8
10207029
Adjustment Tube
Cylinder
2
20-2
11207028
Piston
2
20-9
10217078
Dust Ring
2
20-3
10206069
O-Ring
2
20-10
10520058
O-Ring
2
20-4
10620053
Support Ring
2
20-11
11207030
Head Cap
2
20-5
10620054
Y-Ring
2
20-12
10201034
Bleeding Plug
2
20-6
10630027
O-ring
2
20-13
10207031
O-Ring
2
20-7
10206071
Hex Nut
2
20-14
11207032
Cylinder Tube
2
Fig. 38
