Peak 212 - Power Unit Assembly (Single-Phase)

25

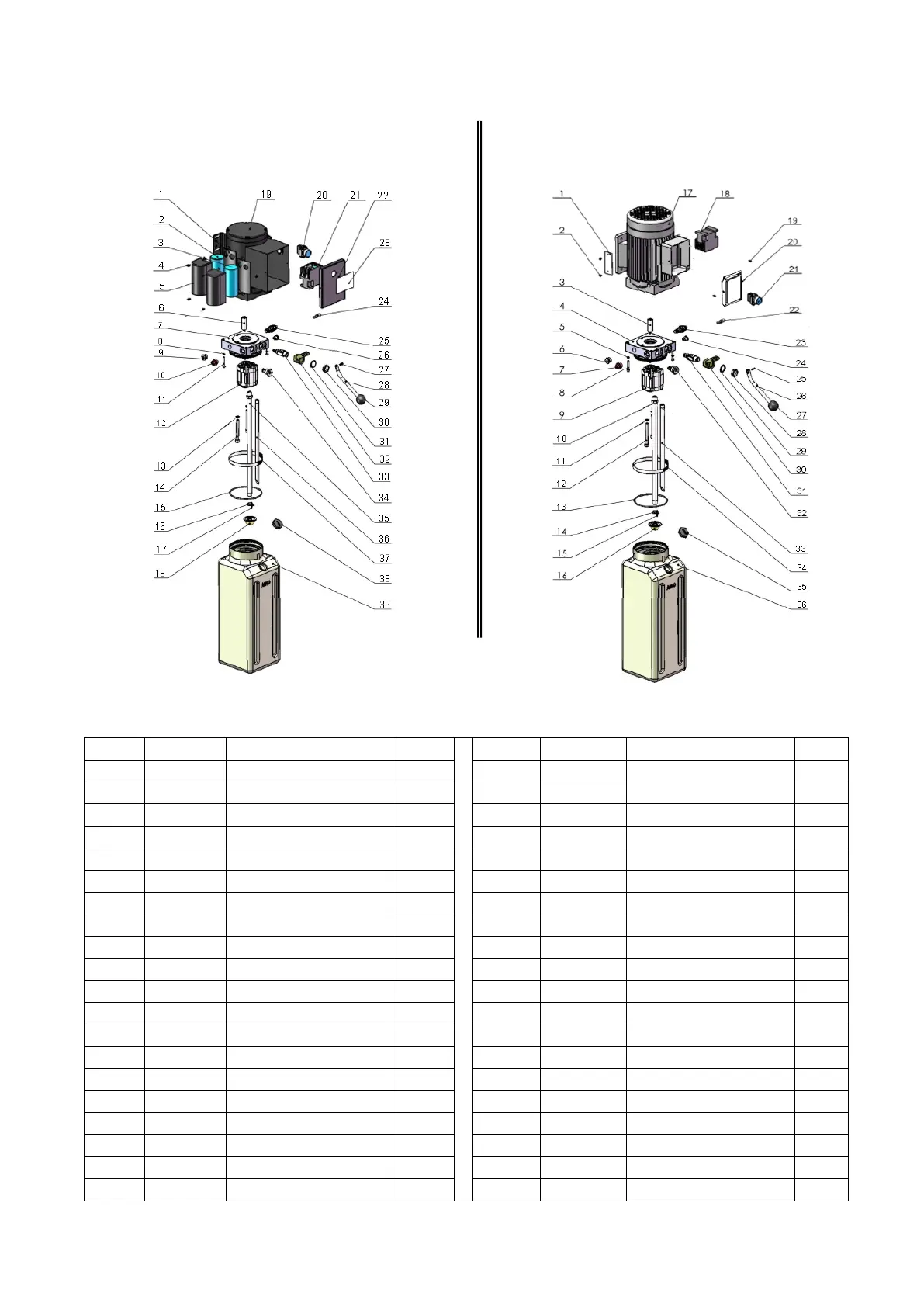

d. Exploded view of power unit: (81513003/81513004)
Single-phase 220V, 50Hz manual power unit parts list
Item
Part#
Description
Qty
Item
Part#
Description
Qty
1
81400180
Rubber pad
2
21
41030055
AC connector
1
2
81400130
Start capacitor
1
22
81400287
Cover of Motor
Terminal Box
1
3
81400088
Running capacitor
1
23
71111171
AMGO Sticker
1
4
10420148
Screw, Washer
6
24
81400560
Throttle valve
1
5
81400066
Cover of capacitor
2
25
81400266
Relief valve
1
6
81400363
Motor connecting
shaft
1
26
81400284
Plug
1
7
81400362
Manifold block
1
27
10720118
Pin
1
8
10209149
Washφ6
4
28
81400451
Handle for release
valve
1
9
81400276
End plug
1
29
10209020
Plastic ball
1
10
81400259
Red plastic plug
1
30
81400421
Nut for release
valve
1
11
85090142
Hex Bolt
4
31
81400422
Shim for release
valve
1
12
81400280
Gear pump
1
32
81400449
Valve seat
1
13
10209034
Wash
φ
8
2
33
81400567
Release valve
1
14
81400295
Socket bolt
2
34
81400566
Check valve
1
15
81400365
O ring
1
35
81400366
Oil suction pipe
1
16
10209152
Tie
1
36
81400367
Oil return pipe
1
17
85090167
Magnet
1
37
81400364
Clamps
1
18
81400290
Filter
1
38
81400263
Oil tank cap
1
19
81400413
Motor
1
39
81400319
Oil tank
1
20
10420070
Push button
1
220V/50HZ/1Phase
manual control
380V/50HZ/3Phase
manual control
Fig. 39
