LEAKAGE CURRENT TESTER
MAX
2A
HOLD
MAX
LEAKAGE CURRENT TESTER
2A
HOLD
4. Operation
4.1 AC current measurement
The leakage current clamp is able to measure alternating currents
up to 200 amperes. The measurements are carried out
contactlessly and without separate measuring lines which have to
be connected to the device.
1. Set the Switch to the desired measuring range for the
respective current measurement
2. Insert the lead to be measured into the current clamp,
opening by operating the lever to open the clamp
3. After closing the current clamp meter, the measured
value is shown on the LCD display
Observe the correct procedure during the measurement procedure

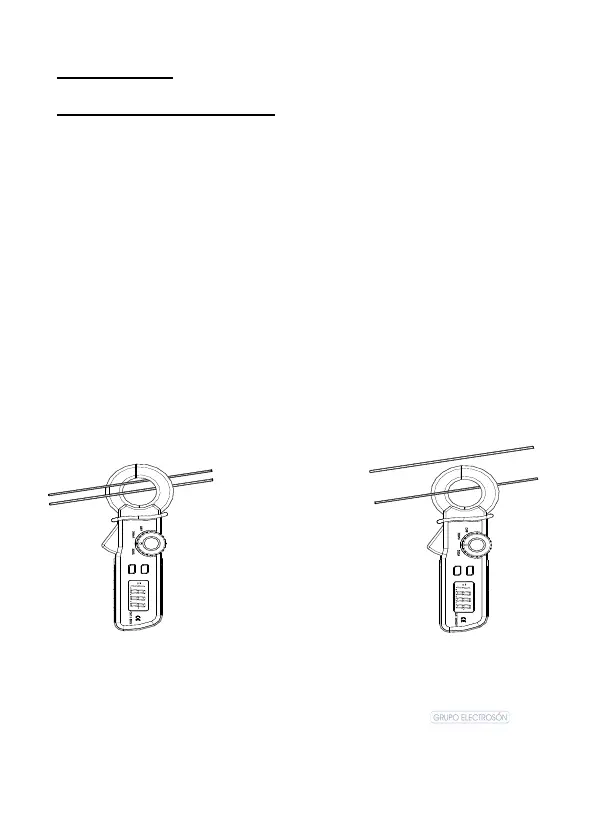

(see picture 1).
FALSE RIGHT
Picture 1
