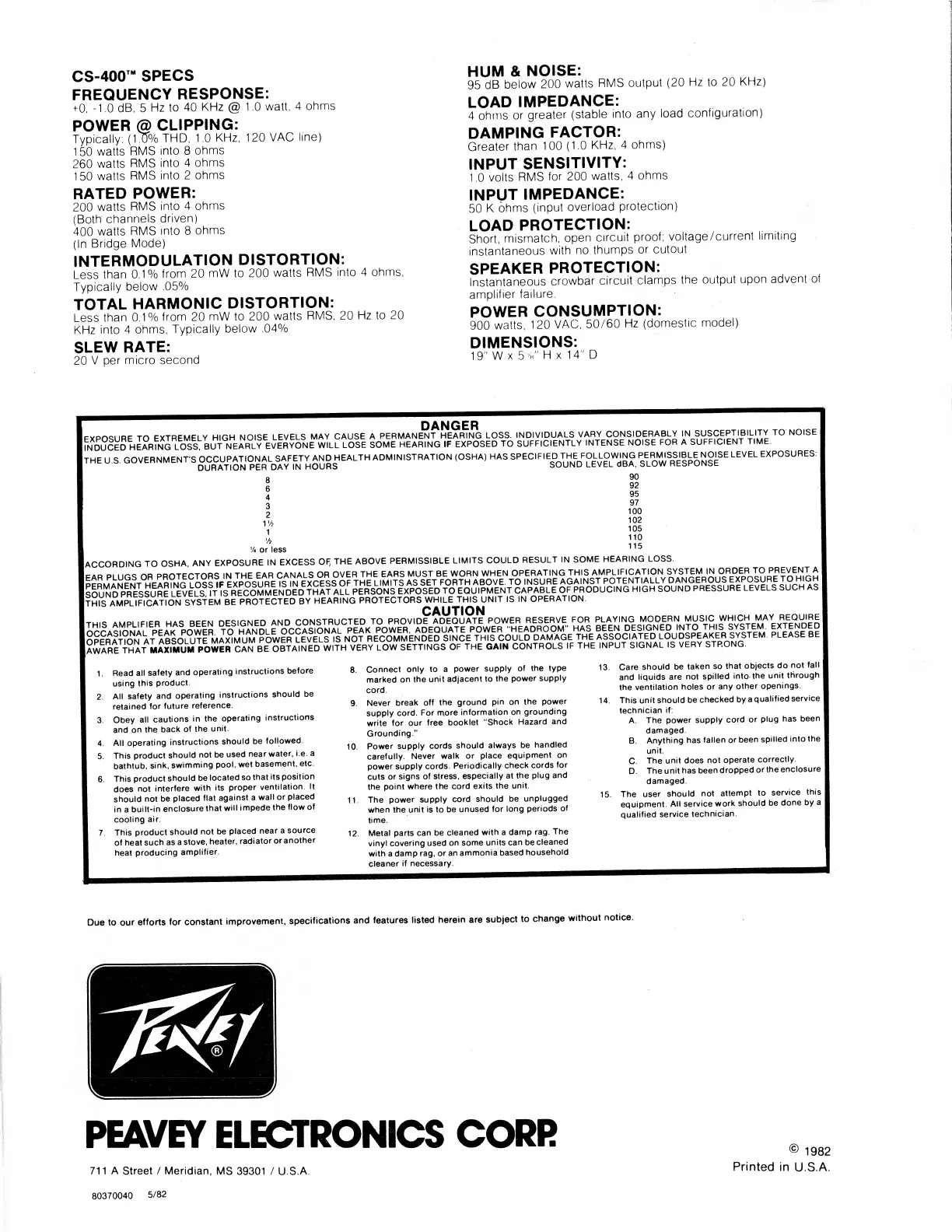

Peavey CS-400 User Manual

CS-400 ™ SPECS
FREQUENCY RESPONSE:
+0, -1 0 dB. 5 Hz to 40 KHz @ 1 0 watt, 4 ohms
POWER @ CLIPPING:
Typically: (115% THD, 1,0 KHz, 120 VAC line)
150 watts RMS into 8 ohms
260 watts RMS into 4 ohms
150 watts RMS into 2 ohms
RATED POWER:
200 watts RMS into 4 ohms
(Both channels driven)
400 watts RMS into 8 ohms
(In Bridge Mode)
INTERMODULATION DISTORTION:
Less than 0.1% from 20 mW to 200 watts RMS into 4 ohms,
Typically below .05%
TOTAL HARMONIC DISTORTION:
Less than 0.1% from 20 mW to 200 watts RMS, 20 Hz to 20
KHz into 4 ohms, Typically below .04%
SLEW RATE:
20 V per micro second
HUM & NOISE:
95 dB below 200 watts RMS output (20 Hz to 20 KHz)
LOAD IMPEDANCE:
4 ohms or greater (stable into any load configuration)
DAMPING FACTOR:
Greater than 100 (1.0 KHz, 4 ohms)
INPUT SENSITIVITY:
1.0 volts RMS for 200 watts, 4 ohms
INPUT IMPEDANCE:
50 K ohms (input overload protection)
LOAD PROTECTION:
Short, mismatch, open circuit proof; voltage/current limiting
instantaneous with no thumps or cutout
SPEAKER PROTECTION:
Instantaneous crowbar circuit clamps the output upon advent of
amplifier failure.
POWER CONSUMPTION:
900 watts, 120 VAC, 50/60 Hz (domestic model)
DIMENSIONS:
19" W x 5 V' H x 14" D
FXPD9URF TO EXTREMELY HIGH NOISE LEVELS MAY CAUSE A PERMANE^^HE^RING LOSS. INDIVIDUALS VARY CONSIDERABLY IN SUSCEPTIBILITY TO NOISE
FnDUCEDHEARINGLOSS.BUT NEARLY EVERYONE WILL LOSE SOME HEARING IF EXPOSED TO SUFFICIENTLY INTENSE NOISE FOR A SUFFICIENT TIME.
|THE U.S. GOVERNMENT'S OCCUPATIONALJ3AFETYANDJHEALTH ADMINISTRATION (OSHA) HAS SPECIFIE S % H N E D F ° ^° L W ^° sloW^SPONSeP LEVEL EXPOSURES:
DURATION PER DAY IN HOURS
90
92
95
97
100
102
105
110
115
6
4
3
2
1 Vz
1
’/ 2
% or less
ACCORDING TO OSHA, ANY EXPOSURE IN EXCESS OF, THE ABOVE PERMISSIBLE LIMITS COULD RESULT IN SOME HEARING LOSS.
FAR PLUGS OR PROTECTORS IN THE EAR CANALS OR OVER THE EARS MUST BE WORN WHEN OPERATING THIS AMPLIFICATION SYSTEM IN ORDER TO PREVENT A
THIS AMPLIFICATION SYSTEM BE PROTECTED BY HEARING PROTECTORS WHILE THIS UNIT IS IN OPERATION.
xwl e AMPI IFIFR HAS BEEN DESIGNED AND CONSTRUCTED TO PROVIDE ADEQUATE POWER RESERVE FOR PLAYING MODERN MUSIC WHICH MAY REQUJgE
S!\ 1 2 3 4 S 6 7 i^ N N AL AT PE /B K SO^
AWARE THAT MAXIMUM POWBR CAN BE OBTAINED WITH VERY LOW SETTINGS OF THE GAIN CONTROLS IF THE INPUT SIGNAL IS VERY STRONG.
1. Read all safety and operating instructions before
using this product.
2. All safety and operating instructions should be
retained for future reference.
3. Obey all cautions in the operating instructions
and on the back of the unit.
4. All operating instructions should be followed.
5. This product should not be used near water, i.e. a
bathtub, sink, swimming pool, wet basement, etc.
6. This product should be located so that its position
does not interfere with its proper ventilation. It
should not be placed flat against a wall or placed
in a built-in enclosure that will impede the flow of
cooling air.
7. This product should not be placed near a source
of heat such as a stove, heater, radiator or another
heat producing amplifier.
Connect only to a power supply of the type
marked on the unit adjacent to the power supply
cord.
Never break off the ground pin on the power
supply cord. For more information on grounding
write for our free booklet “Shock Hazard and
Grounding.”
Power supply cords should always be handled
carefully. Never walk or place equipment on
power supply cords. Periodically check cords for
cuts or signs of stress, especially at the plug and
the point where the cord exits the unit.
The power supply cord should be unplugged
when the unit is to be unused for long periods of
time.
Metal parts can be cleaned with a damp rag. The
vinyl covering used on some units can be cleaned
with a damp rag, or an ammonia based household
cleaner if necessary.
Care should be taken so that objects do not fall
and liquids are not spilled into the unit through
the ventilation holes or any other openings.
This unit should be checked by a qualified service
technician if:
A. The power supply cord or plug has been
damaged.
B. Anything has fallen or been spilled into the
unit.
C. The unit does not operate correctly.
D. The unit has been dropped or the enclosure
damaged.
The user should not attempt to service this
equipment. All service work should be done by
qualified service technician.
Due to our efforts for constant improvement, specifications and features listed herein are subject to change without notice.
PEAVEY ELECTRONICS CORR
711 A Street / Meridian, MS 39301 / U.S.A. Printed in U.S.A.
80370040 5/82

Peavey CS-400 Specifications

General

Minimum Load Impedance (Stereo)	4 ohms
Input Impedance	20 kOhms
Frequency Response	20 Hz to 20 kHz
Total Harmonic Distortion	Less than 0.1%
Input Sensitivity	1.0V RMS for rated output
Signal to Noise Ratio	>100dB
Power Output	200 Watts RMS per channel at 4 Ohms
