Peavey Headliner User Manual

16
3
INPUT
1/4" Instrument Input. WARNING: Never plug the output of a power amplier into the input jacks. Damage
may occur to both units.
ACTIVE/PASSIVE PICKUP SWITCH
This switch is included so you can choose the appropriate setting for your instrument. The gain structure of
the amplier is modied to accommodate both active or passive pickup congurations.
PRE GAIN
This knob controls input level of the instrument.
BRIGHT SWITCH
This button provides a 10 dB boost to frequencies above 1kHz. To activate, press the switch to its “ON”
position.
CONTOUR
This button boosts highs and lows while simultaneously cutting mid tones, producing a "scooped" sound.
CRUNCH SWITCH
This button engages a crunch effect, simulating the classic overdriven tube amp sound. When using the
crunch feature, turning the tweeter off on your cabinet will result in a more authentic overdriven tone.
LOW
This knob provides a shelving tone control for low frequencies and provides cut/boost of +/-15 dB. The
center point is at. The center frequency is 50 Hz. The -3 dB shelf corner frequency is 100Hz.
EQ BYPASS
This button removes the graphic equalizer from the audio chain. When this switch is in the "Bypass"
position, the amp will respond as if the graphic equalizer is set at.
GRAPHIC EQUALIZER
These sliders provide precise tone control through the constant-Q, seven-band equalizer. Each band may be
boosted or cut 15 dB.
HIGH
This knob provides a shelving tone control for high frequencies and cut/boost of +/-15dB. The center point
is at and the frequency is 8 KHz. The -3dB; the shelf corner frequency is 5 KHz.
COMPRESSOR
Rotating this knob clockwise will increase the amount of compression in the signal chain.

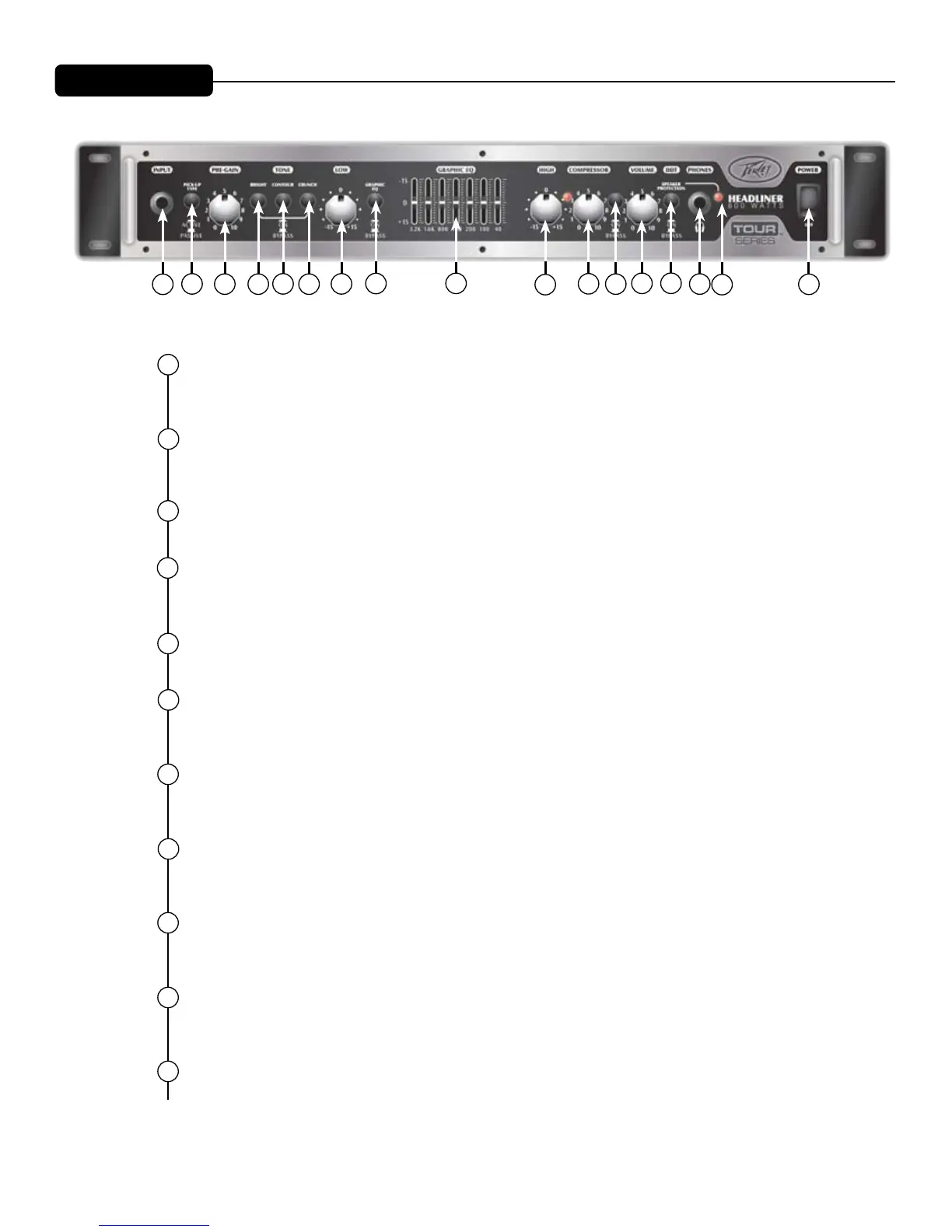

Headliner Front Panel
1
2
3
4
5
6
7
8
9
10
1
7
8
15
16
9
4
2
11
5
6
12
13
14
10
11
17

Peavey Headliner Specifications

General

Effects Loop	Yes
Impedance	4Ω
Frequency Response	20Hz - 20kHz
Inputs	1/4"
Outputs	1/4"
Dimensions	3.5" x 19" x 11.5"
Type	Solid State
