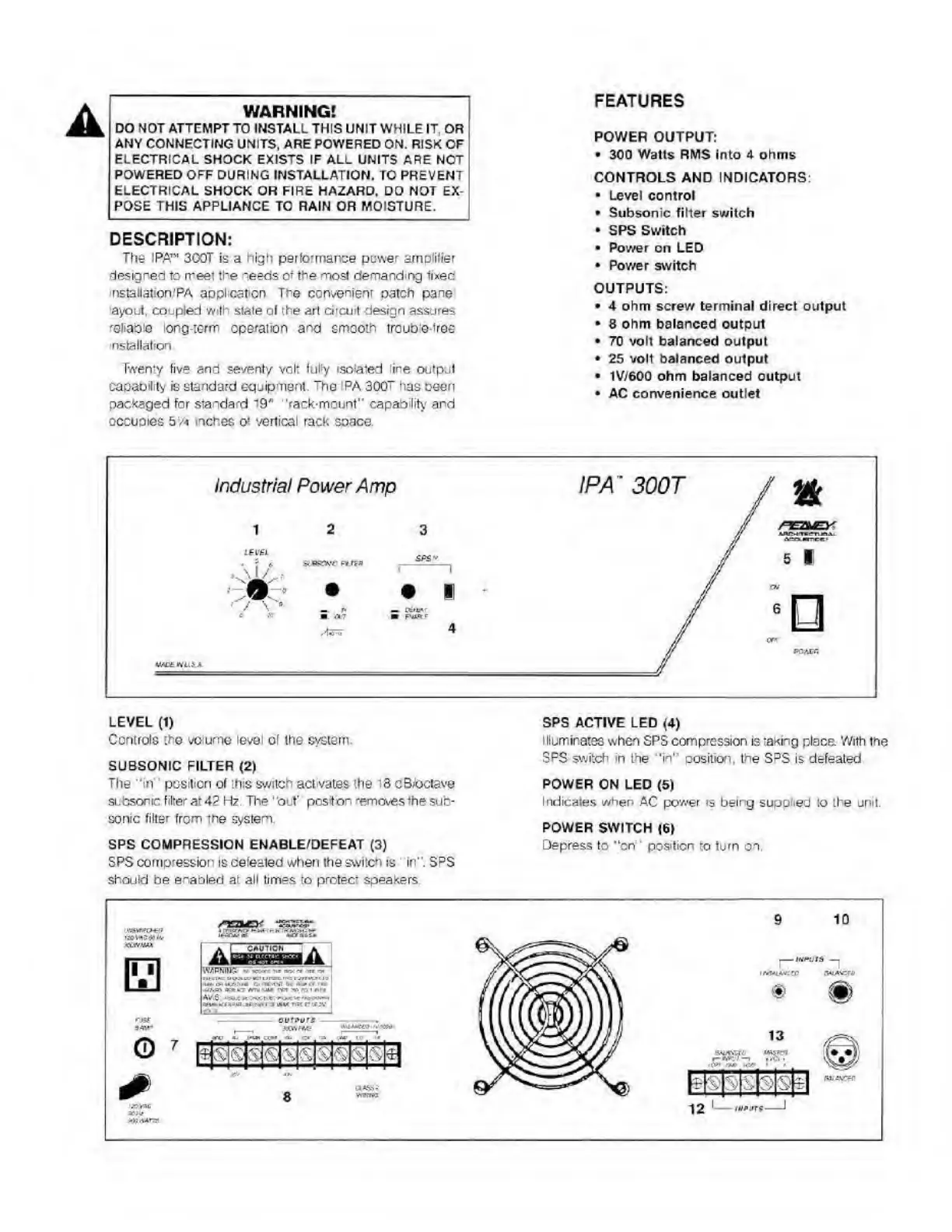

Peavey IPA 300T - Features; Warnings; Power Output; Controls and Indicators

FEATURES
A
DESCRIPTION:
THe IPA~ SCOT is a high performarce power amplHier
rtesigrted to rreet the needs fre mosi demandir^ fixed
■ nsiall alien/PA aoplicanon The convenienr parch pane
ayout, cooked wdh slate □ ! the art circurl design assures
'Bhaoi® long-term operation and smooih trou&la-tree
nsld nation
Twenty five and seventy valt fully isoiated line out pul
capabJiiy is siarxlard eauipmeni. The fPA 300T has bean
packaged for standard 19" "rack^mount" capability and
occupies 5'A inches d vertical rack space
WARNINGS
DO NOT ATTEMPT TO INSTALL THIS UNIT WHILE It OR
ANY CONNECTING UNITS, ARE POWERED ON. RISK OF
ELECTRICAL SHOCK EXISTS IF ALL UNITS ARE NOT
POWERED OFF DURING INSTALLATION. TO PREVENT
ELECTRICAL SHOCK OR FIRE HAZARD. DO NOT EX¬
POSE THIS APPLIANCE TO RAIN OR MOISTURE.
POWER OUTPUT:
• 3CQ Watte RMS Into 4 ohma
CONTROLS AND INDICATORS
• Level control
• Subsonic filter switch
• SPS Switch
• Power on LED
• Power switch
OUTPUTS:
• 4 ohm screw terminal direct output
• 8 ohm balanced output
• 70 volt balanced output
• 25 volt balanced output
• 1V/600 ohm balanced output
• AC convenience outlet
LEVEL (1)
Controls the voume level cl the system.
SUBSONIC FILTER <2)
The ''in position o( this switch activates the 18 dB/octave
subsoncfilterat42 Hz The'but' posrton removes the sub¬
sonic filter from the b^stem,
8P8 COMPRESSION ENABLE/DEFEAT (3)
SPS CO mpf es^n is ae leaied when the ewi tch is Ir ”, S P S
should be enabled at all times to protect speakers
SPS ACTIVE LED <4)
lHumlnsaes when SPS compression isiaKfng place Witt> the
SPS switcJi in the "in” oostlion, the SPS is defeated
POWER ON LED (5)
Indicates when AC power »s being supplied lo the unit
POWER SWITCH (6)
Depress to “or^' position to turn on.
