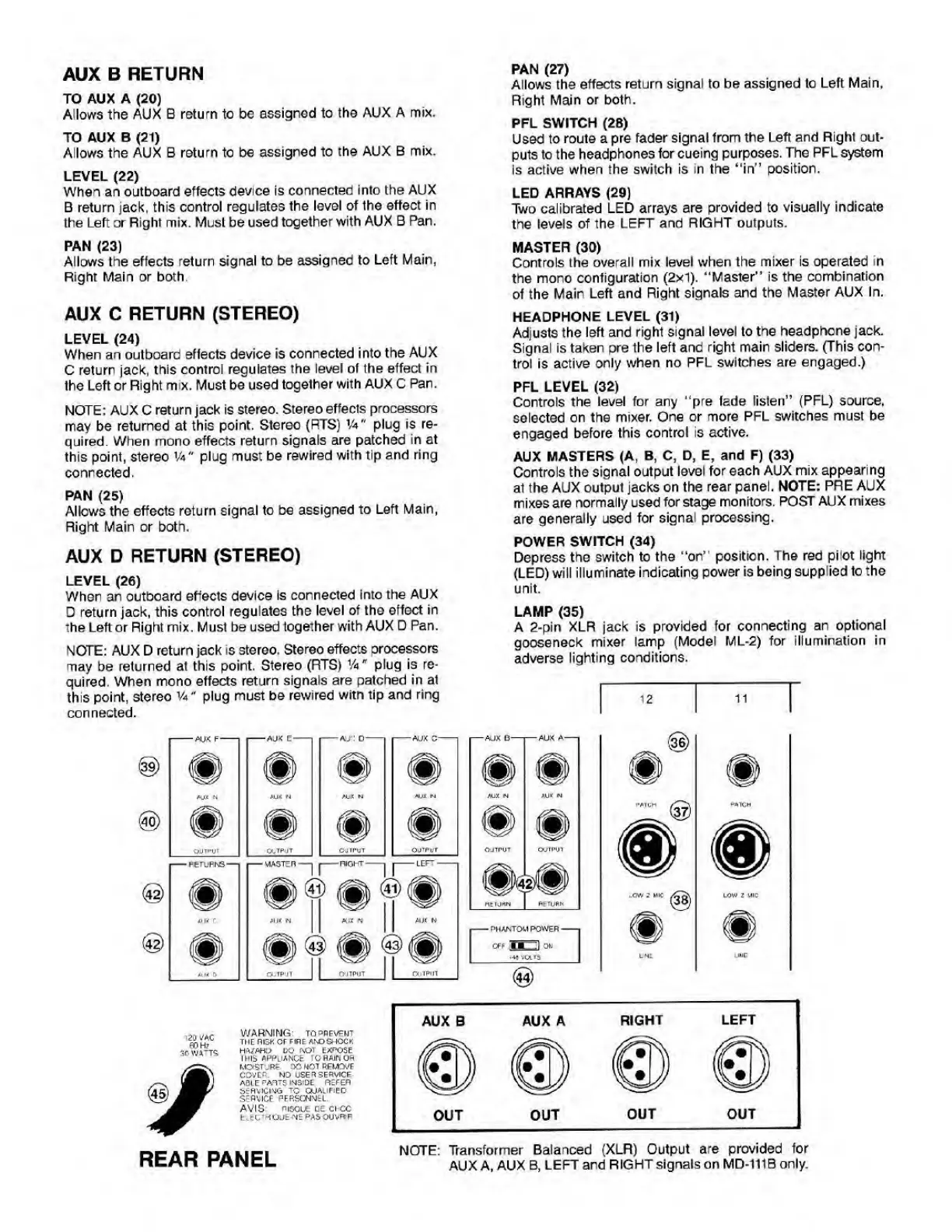

Peavey MD-III

AUX B RETURN
TO AUX A (20)
Allows the AUX B return to be assigned to the AUX A mix.
TO AUX B (21)
Allows the AUX B return to be assigned to the AUX B mix.
LEVEL (22)
When an outboard effects device is connected into the AUX
B return jack, this control regulates the level of the effect in
the Left or Right mix. Must be used together with AUX B Pan.
PAN (23)
Allows the effects return signal to be assigned to Left Main,
Right Main or both.
AUX C RETURN (STEREO)
LEVEL (24)
When an outboard effects device is connected into the AUX
C return jack, this control regulates the level of the effect in
the Left or Right mix. Must be used together with AUX C Pan.
NOTE: AUX C return jack is stereo. Stereo effects processors
may be returned at this point. Stereo (RTS) Va" plug is re¬
quired. When mono effects return signals are patched in at
this point, stereo Va" plug must be rewired with tip and ring
connected.
PAN (25)
Allows the effects return signal to be assigned to Left Main,
Right Main or both.
AUX D RETURN (STEREO)
LEVEL (26)
When an outboard effects device is connected into the AUX
D return jack, this control regulates the level of the effect in
the Left or Right mix. Must be used together with AUX D Pan.
NOTE: AUX D return jack is stereo. Stereo effects processors
may be returned at this point. Stereo (RTS) Va" plug is re¬
quired. When mono effects return signals are patched in at
this point, stereo Va" plug must be rewired witn tip and ring
connected.
PAN (27)
Allows the effects return signal to be assigned to Left Main,
Right Main or both.
PFL SWITCH (28)
Used to route a pre fader signal from the Left and Right out¬
puts to the headphones for cueing purposes. The PFL system
is active when the switch is in the “in” position.
LED ARRAYS (29)
Two calibrated LED arrays are provided to visually indicate
the levels of the LEFT and RIGHT outputs.
MASTER (30)
Controls the overall mix level when the mixer is operated in
the mono configuration (2x1). “Master” is the combination
of the Main Left and Right signals and the Master AUX In.
HEADPHONE LEVEL (31)
Adjusts the left and right signal level to the headphone jack.
Signal is taken pre the left and right main sliders. (This con¬
trol is active only when no PFL switches are engaged.)
PFL LEVEL (32)
Controls the level for any “pre fade listen” (PFL) source,
selected on the mixer. One or more PFL switches must be
engaged before this control is active.
AUX MASTERS (A, B, C, D, E, and F) (33)
Controls the signal output level for each AUX mix appearing
at the AUX output jacks on the rear panel. NOTE: PRE AUX
mixes are normally used for stage monitors. POST AUX mixes
are generally used for signal processing.
POWER SWITCH (34)
Depress the switch to the “on” position. The red pilot light
(LED) will illuminate indicating power is being supplied to the
unit.
LAMP (35)
A 2-pin XLR jack is provided for connecting an optional
gooseneck mixer lamp (Model ML-2) for illumination in
adverse lighting conditions.
120 *»'AC
rOH?
SO WATTS
WARNING TO PREVENT
THE RISK cr FIRE AND9IOCK
HAZARD 1X0 tSOT EXPOSE
I HIS APPlIANCE rOHAINOH
fvOSTJRe 00 NOT REMOVE
COVE'. NO USER SERVICE
ABIE PARTS IN3<D£ REFER
SERVICING TC QJAUFIED
SERVICE PERSONNEL.
AVIS PISOLE DE CI-CC
fc.ECMOJE "JE PASOUVRIP
REAR PANEL
NOTE: Transformer Balanced (XLR) Output are provided for
AUX A, AUX B, LEFT and RIGHT signals on MD-111B only.
