Peavey PV 260 User Manual

PV™ 260

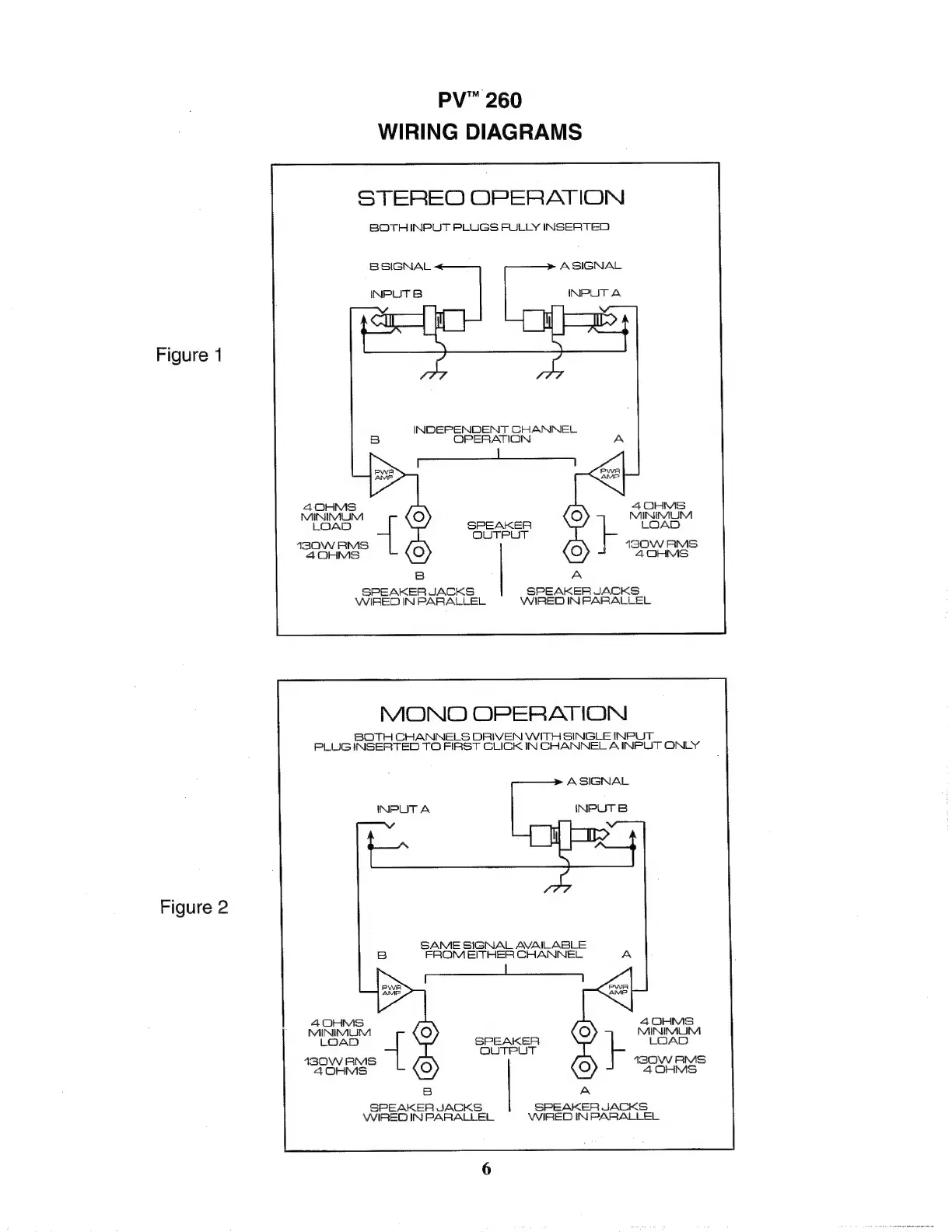

WIRING DIAGRAMS
STEREO OPERATION
BOTH INPUT PLUGS FULLY INSERTED
BSIGNAL ASIGNAL
INPUT B INPUT A
Figure 1
INDEPENDENT CHANNEL.
OPERATION
-———_—___,
4 OHMS 4 OHMS
MINIMUM MINIMUM
LOAD SPEAKER LOAD
OUTPUT
430W RMS 130\VW RMS
4 OHMS 4 OHMS
B A
SPEAKER JACKS SPEAKER JACKS
WIRED IN PARALLEL WIRED IN PARALLEL
MONO OPERATION
BOTH CHANNELS DRIVEN WITH SINGLE INPUT,
PLUG INSERTED TO FIRST CLICK IN CHANNEL A INPUT ONLY
A SIGNAL
INPUT A INPUT B
Figure 2
SAME SIGNAL AVAILABLE
FROM EITHER CHANNEL
-——__—_
4 OHMS 4 OHMS
MINIMUM MINIMUM
LOAD SPEAKER LOAD
OUTPUT
430W RMS 430VW RMS
4 0HMS 4 OHMS
A
SPEAKER JACKS. SPEAKER JACKS
WIRED IN PARALLEL WIRED IN PARALLEL
