9
(1) SPEAKER OUTPUTS
These are four two-conductor 1/4" speaker outputs. Each one is rated at 4 ohms minimum impedance.
Total minimum load for each amplifier channel is 4 ohms, except Bridged which is 8 ohms. You may
connect either one 4-ohm (except Bridged), one 8-ohm or two 8-ohm speakers per output jack. Do not
operate below rated minimum impedance. For maximum power transfer, be sure to use speaker cables
and not instrument cables to connect to the speakers. We recommend the use of 18-gauge or larger
speaker wire.
(2) BRIDGED OUTPUT
Two conductor 1/4" speaker output rated at 8 ohms impedance. Do not operate below minimum rated
impedance.
(3) MONITOR OUTPUT
Two conductor 1/4" speaker output rated at 4 ohms impedance. Also, this serves as one of the main
speaker outputs when in MAIN/MAIN mode. Do not operate below minimum rated impedance.
(4) POWER CONNECTOR
This is a standard IEC cable connector for use with standard voltages from AC wall outlets. Its safety
ground pin is connected to the chassis and should never be removed (or defeated in the line cord) for
any reason. The IEC connector contains an internal fuse holder. The fuse rating is 5 amperes.
(5) POWER SWITCH
This switches the unit on or off.

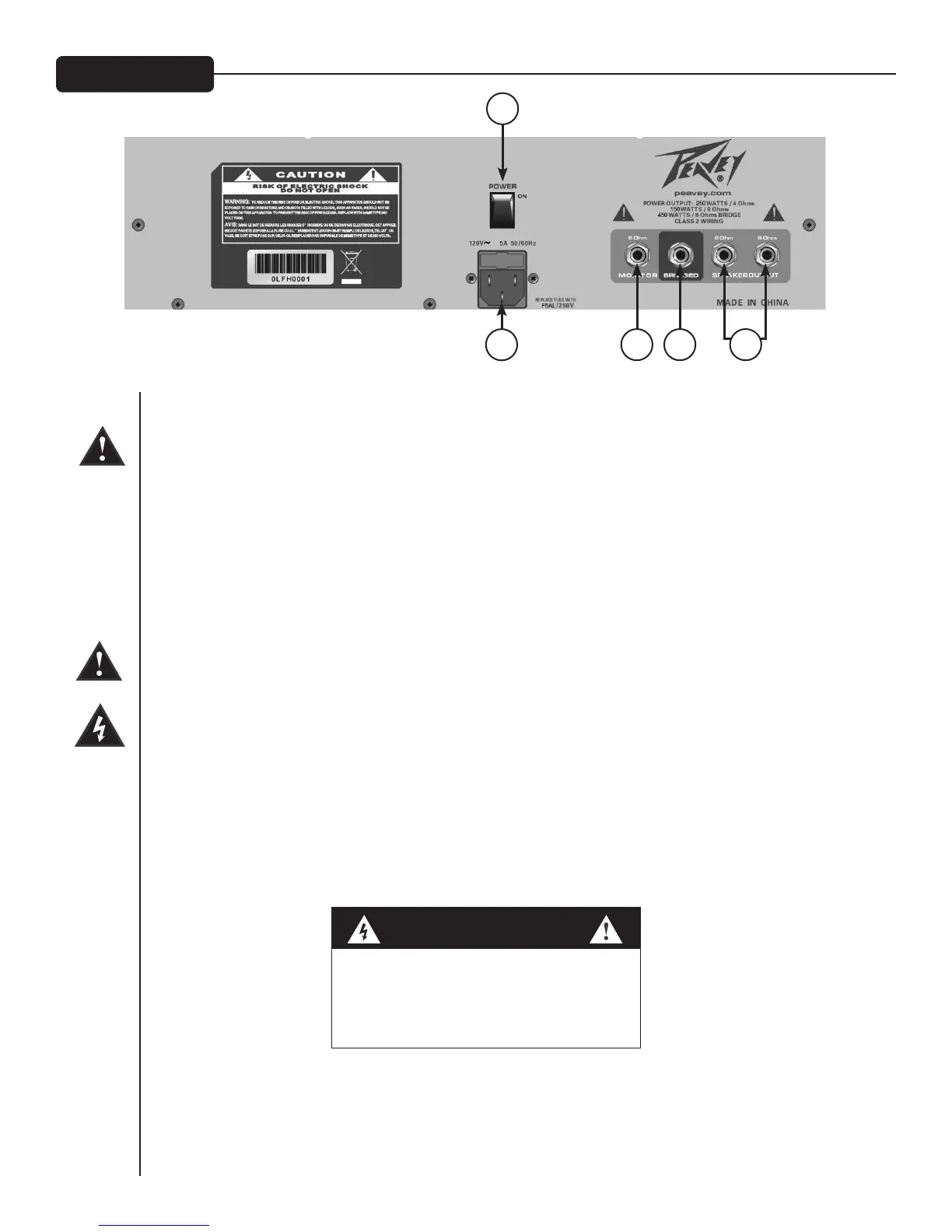

Rear Panel
WARNING
THE ON/OFF SWITCH IN THIS APPARATUS
DOES NOT BREAK BOTH SIDES OF THE MAINS.
HAZARDOUS ENERGY MAY BE PRESENT INSIDE
THE ENCLOSURE WHEN THE POWER SWITCH IS
IN THE OFF POSITION.
4
5
3 2 1
