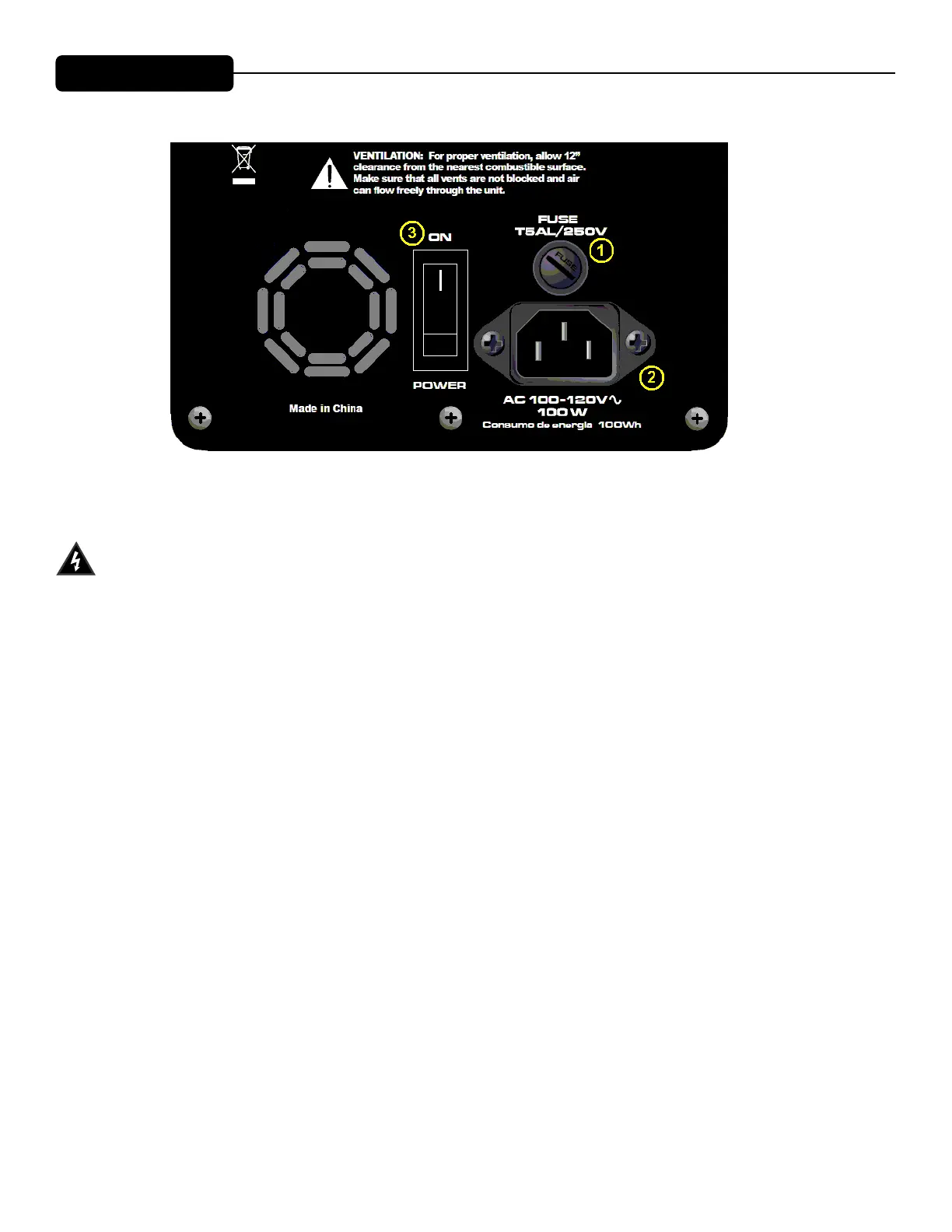

LOWER REAR PANEL
FUSE (1)
The unit is AC power line fuse protected from overloads and fault conditions with a slow-blow 5 x
20mm 250V fuse. This fuse is located within the cap of the fuse enclosure just above the IEC power cord
connection. If the fuse fails, THE FUSE MUST BE REPLACED WITH THE SAME TYPE AND VALUE IN
ORDER TO AVOID DAMAGE TO THE EQUIPMENT AND TO PREVENT VOIDING THE WARRANTY!
The fuse in the PVX™p 10 Bluetooth® can be replaced with a time-delay type 5 x 20 mm size 250V rated fuse.
For 100-120VAC operation, a fuse rated at 5 amps should be used. In the USA, types GDC, GMC, 215, 218, and
477 cartridge-style 5 x 20 mm size fuses with a 5 amp 250V rating can be used. The fuse should conform to the
international fuse classification “T5AL”.
For the Export model, using an input power voltage range of from 220VAC to 240VAC, use a 2.5 amp rated,
250V 5 x 20 mm cartridge type time-delay fuse, which conforms to the international fuse classification
“T2.5AL”.
If the unit continues to blow replacement fuses, do not keep replacing them- it should be taken to a qualified
service center for repair.
To replace the fuse, be sure to remove the IEC power cord from the IEC socket (2).
Remove the cap to the fuse enclosure (1) using a flat blade screwdriver tip inserted into the fuse cap slot. Push
the cap in and turn the cap CCW and unscrew the cap out until it comes free from the rear portion of the
holder. The blown fuse should come out with the cap.
Remove the blown fuse and replace it with the proper type per instructions previously supplied. Then, once the
new fuse has been put in place, re-insert the fuse enclosure cap, push in and screw the cap in CW, and make
sure it is fully seated.
Before re-attaching the IEC power cord to the IEC socket, make sure the Power switch is in the OFF position,
so that intermittent contact of the IEC cord while it is being connected will not unduly stress the amplifier or
the fuse.
Now re-attach the IEC power cord, and you can then use the Power switch (3) to turn the unit on.
