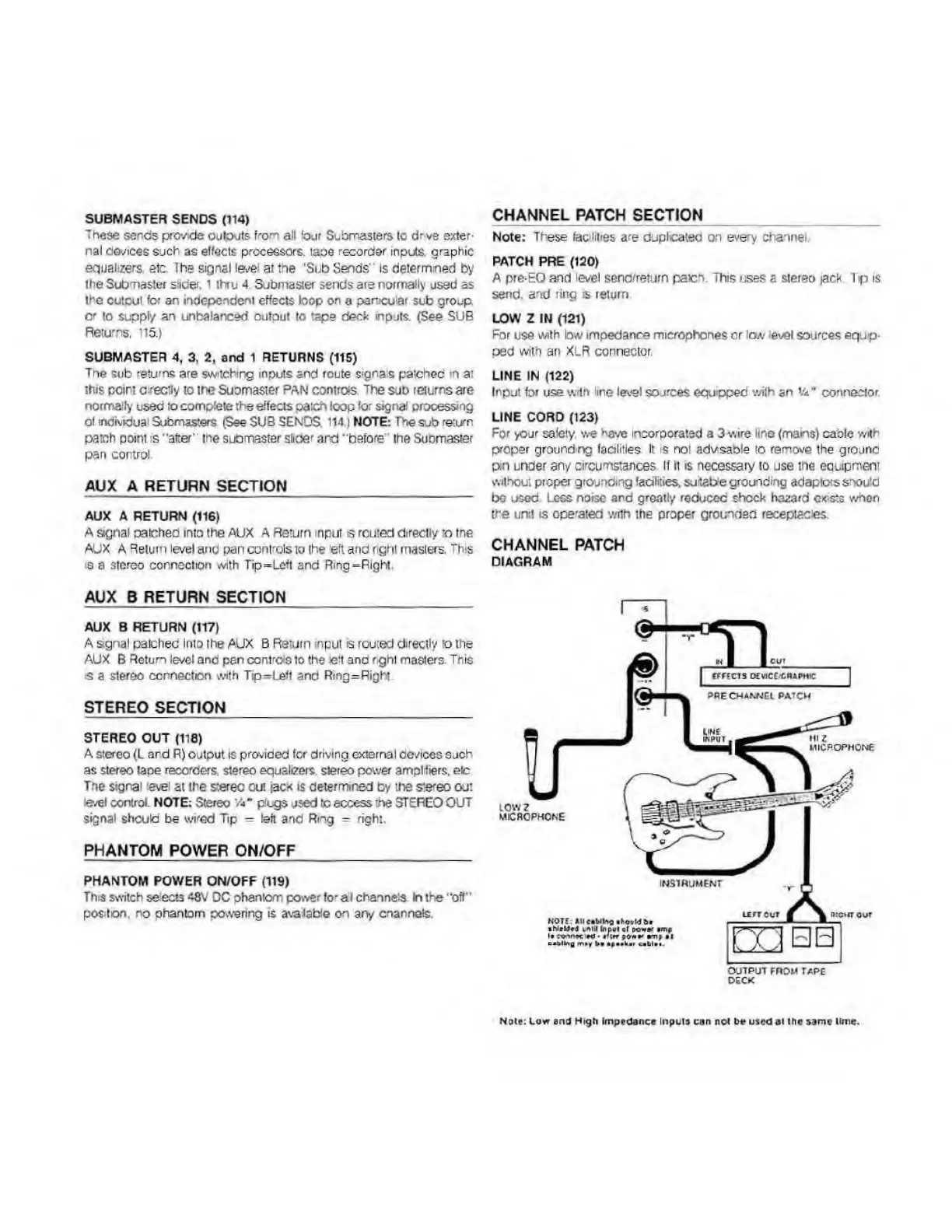

SUBMASTER SENDS (114)
These sends provide outputs from all four Submasters tc d r ve exter¬
nal devices such as effects processors, taoe recorder inputs, graphic
equalizers, etc. The signal level at the ‘Sub Sends' is determined by
the Submaster slider. 1 thru 4 Suomasier sends are normally used as
the cutoul for an independent effects loop on a particular sub group,
or to supply an unbalanced output to rape deck inputs. (See SUB
Returns. 115.)
SUBMASTER 4, 3, 2, and 1 RETURNS (115)
The sub returns are switching inputs and route signals patched m a;
this point erectly to the Suomasier PAN controls The sub returns are
normally used to complete the effects patch loop for signal processing
ol individual Submasters (See SUB SENDS. 114.) NOTE: The sub return
patch point s "after' the submaster slide* and "before" the Submaster
pan control.
AUX A RETURN SECTION
AUX A RETURN (116)
A signal paiched into the AUX A Return input is routed directly to tne
AUX A Return level and pan controls to the left and right masters. This
is a stereo connection with Tip=Left and Rmg=Right.
CHANNEL PATCH SECTION _
Note: These faculties are duplicated on every channe
PATCH PRE (120)
A pre*EQ and level seno/reiurn paicn. This uses a stereo jack. Tp is
send, and ring is return
LOW Z IN (121)
For use with tow impedance microphones or low level sources equip¬
ped with an XLR connector.
LINE IN (122)
Input for use with line level sojrces equipped with an '/&" connector
LINE CORD (123)
For your safety, we have incorporated a 3wire line (mans) cable with
proper ground r>g facilities It is no! advsable to remove the grounc
pm under any circumstances. If it is necessary to use the equipment
without proper grounding facilities, suitable grounding adaptors snould
be used Less noise and greatly reducec shock hazard exists whon
the unit is ope*ated with the proper grounded receptacles.
CHANNEL PATCH
DIAGRAM
AUX B RETURN SECTION
AUX B RETURN (117)
A signal paichec into the AUX B Return input is routed directly to the
AUX B Return level and pan controls to the let and r ght masters. This
s a stereo connection with Ttp=left and Ring=Right
STEREO SECTION
STEREO OUT (118)
A stereo (L and R) output is provided for driving external devices such
as stereo tape recorders, stereo equalizers stereo power amplifiers, etc
The signal evei at the stereo out jac* is determined by !he siereo out
£vef control. NOTE: Stereo '/*" p ugs used tc access the STEREO OUT
Signal should be wired Tip = left and Ring = right.
PHANTOM POWER ON/OFF
PHANTOM POWER ON/OFF (119)
This switch selects 48V DC ohantorr. power for a I channels In the 'off’
position, no phantom powering is available on any cnannels.
Note: Low and High impedance Inputs can not be used at the same lime.
