Peavey SRC 1600 - Master Section; Right Section

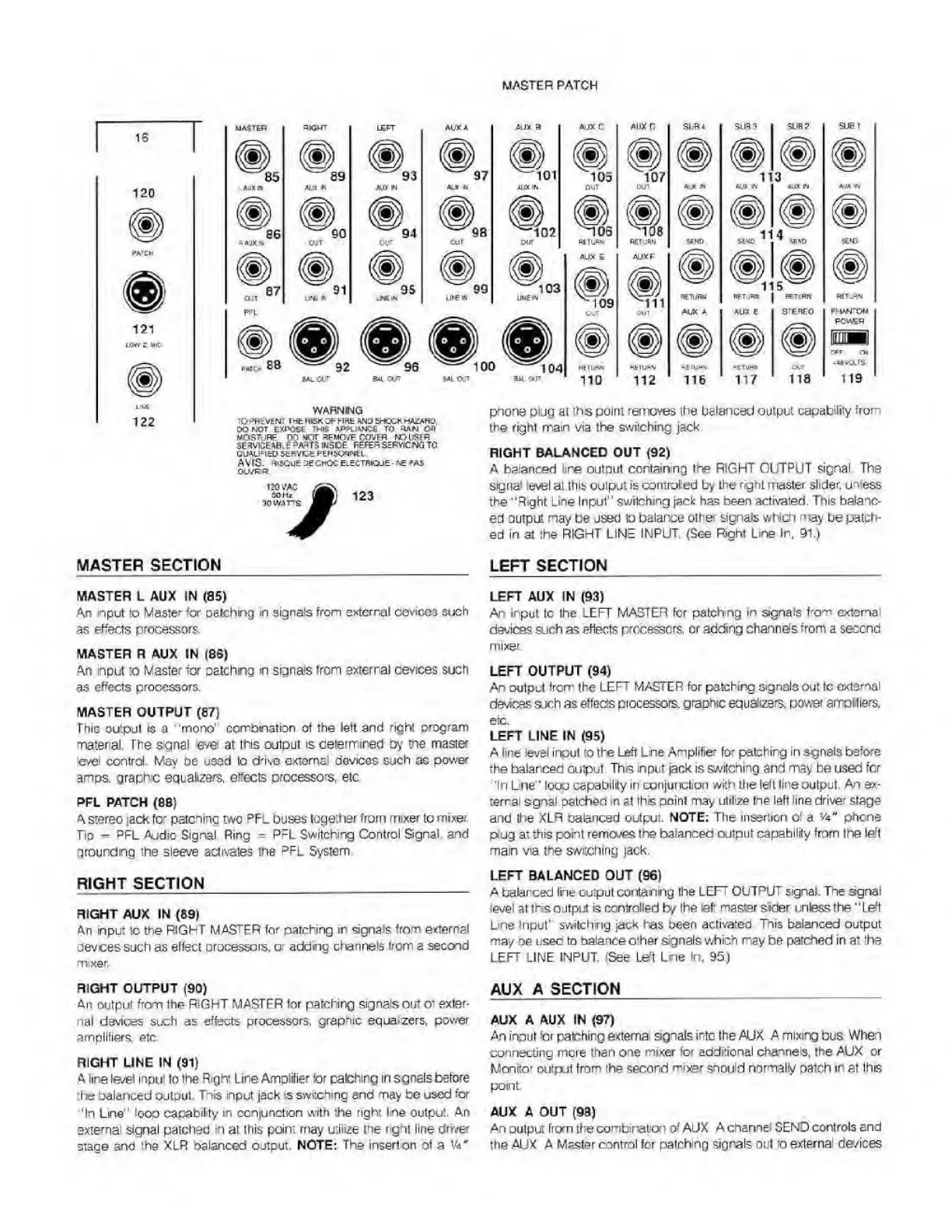

WASTER PATCH
120
tlWC
122
AJJXC
nOS
(tlTuO-
AJX E
RET1**
110
suet
rar-_ 0 .N
phantom
POWER
HSI
<w
•*8vClTS
119
WARNING
TOPH6VEN1 IfiERISKDFHHE AND SH-CK HAZARO.
DO NOT EXPOSE THIS WVtWNCC TO RAN OH
WOSTURE DC NOT REMOVE COVFR NO USER
SERVICEABLE PARTS IWSOE REFER SERVICNG TO
GJALI-IED SERVCfc PERSONNEL
AVIS- RiSOUE DECHOC EiECTRIOJe- AE “AS
OlVRlR
phone plug ai this point removes Ihe balanced output capability from
the right mam via the switching jack.
RIGHT BALANCED OUT (92)
A balanced line output containing the RIGHT OUTPUT signal. The
signal level at this output is controlled by the right master slider, unless
the "Right Line Input" switching jack has been activated. This balanc¬
ed output nay be used 10 balance other signals which may be patch¬
ed in at the RIGHT LINE INPUT. (See Right Line In. 91.)
MASTER SECTION
MASTER L AUX IN (85)
An input to Master for patching in signals from external devices such
as effects processors.
MASTER R AUX IN (86)
An input :o Master fa patching m signals from external devices such
as effects processors.
MASTER OUTPUT (87)
This output is a mono' combination of the left and right program
material. The signal evei at this output is determined by the master
level control. May be used lo drive external devices such as power
amps, graphic equalizers, effects processors, etc
PFL PATCH (88)
A stereo jack for patching two PFL buses together from mixer tc mixer.
Tio - PFL Audio Signal Ring = PFL Switching Control Signal and
grounding the sleeve activates the 3 FL System.
RIGHT SECTION _
RIGHT AUX IN (89)
An input tc the RIGHT MASTER for patching in signals from external
devices such as effect processors, or adding channels from a second
mixer.
RIGHT OUTPUT (90)
An output from the RIGHT MASTER for patching signals out o: exter¬
nal devices such as effects processors, graphic equalizers, power
amplifiers, etc.
RIGHT LINE IN (91)
A line level inpul lo the Right Line Amplifier tor patching in signals before
the balanced output. This input jack is switching and may be used for
"In Line" loop capability in conjunction with the right line output. An
external signal patched in ai this point may utilize the right line driver
stage and the XLR balanced output. NOTE: The insertion of a Va"
LEFT SECTION
LEFT AUX IN (93)
An input tc the LEFT MASTER for patching in signals Horn externa'
devices such as effects processors, or adding channels from a second
mixer.
LEFT OUTPUT (94)
An output from the LEFT MASTER for patching signals out tc external
devices such as effects processors, graphic equalizers, power amplifiers.
etc.
LEFT LINE IN (95)
A line level input to the Left Line Amplifier for patching in sgnals before
the balanced output. This input jack is switching and may be used for
"In Line" loop capability in conjunction with the left line output. An ex¬
ternal sgnal oatched in st this ooint may utilize the left line driver stage
and the XLR balanced output. NOTE: The insertion of a Ya" phone
plug at this point removes the balanced output capability from Ihe left
main via the switching jack.
LEFT BALANCED OUT (96)
A balarced line output containing the LEFT OUTPUT signal. The signal
level at this output is controlled by Ihe left master siider unless the "Left
Une Input' switching jack has been activated This balanced output
may oe used to balance other signals which msy be patched in at the
LEFT LINE INPUT. (See Let Line In, 95.)
AUX A SECTION
AUX A AUX IN (97)
An input for patching external signals into the AUX A mixing bus. When
connecting mere than one mixer for additional channels, the AUX or
Monitor output from the second mixer should normally patch in at this
point.
AUX A OUT (98)
An output from the combination of AUX A channel SEND controls and
the AUX A Master control for patching signals out to external devices
