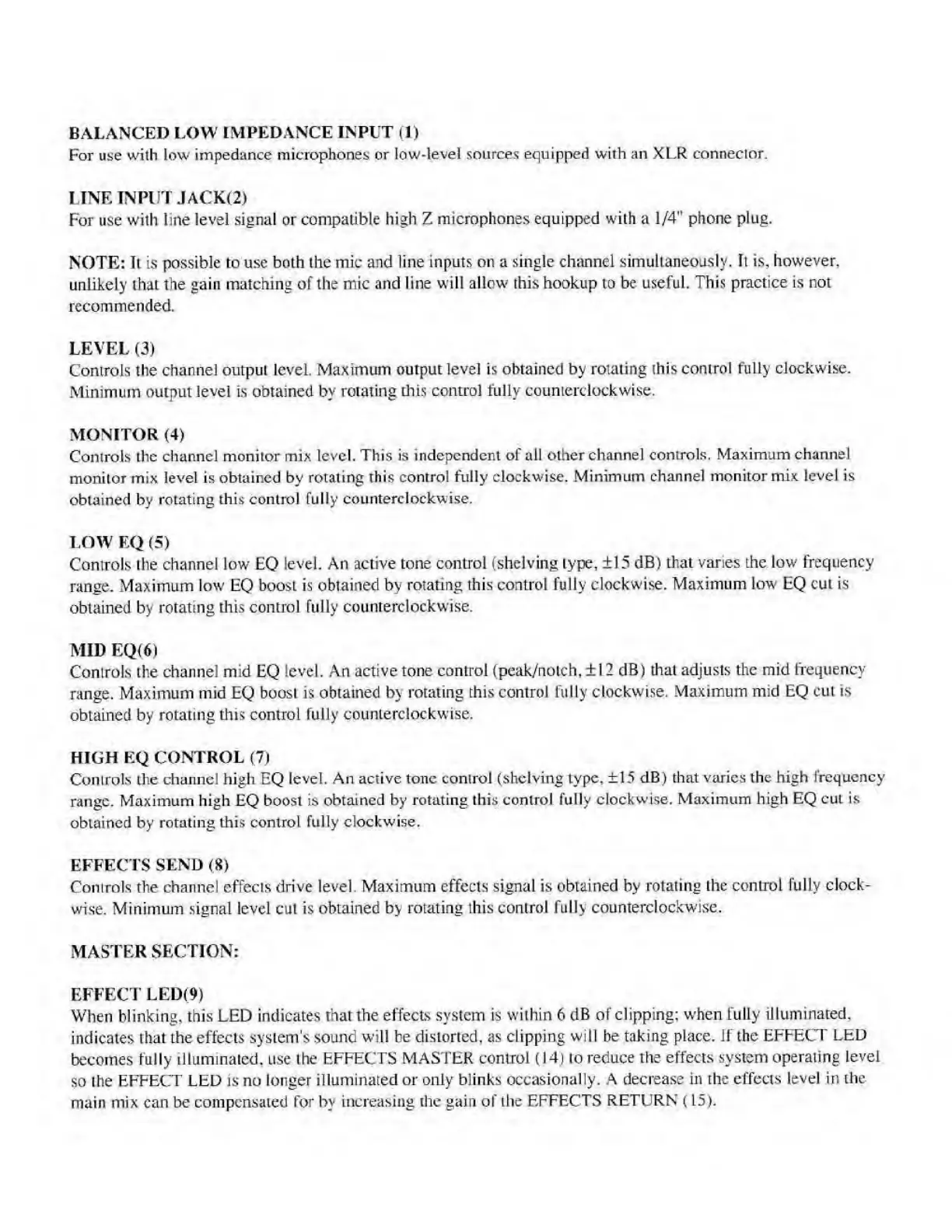

BALANCED LOW IMPEDANCE INPUT (1)
For use with low impedance microphones or low-level sources equipped with an XLR connector.
LINE INPUT JACKC2)
For use with line level signal or compatible high Z microphones equipped with a 1/4" phone plug.
NOTE: It is possible to use both the mic and line inputs on a single channel simultaneously. It is, however,
unlikely that the gain matching of the mic and line will allow this hookup to be useful. This practice is not
recommended.
LEVEL (3)
Controls the channel output level. Maximum output level is obtained by rotating this control fully clockwise.
Minimum output level is obtained by rotating this control fully counterclockwise.
MONITOR (4)
Controls the channel monitor mix level. This is independent of all other channel controls. Maximum channel
monitor mix level is obtained by rotating this control fully clockwise. Minimum channel monitor mix level is
obtained by rotating this control fully counterclockwise.
LOW EQ (5)
Controls the channel low EQ level. An active tone control (shelving type, ±15 dB) that varies the low frequency
range. Maximum low EQ boost is obtained by rotating this control fully clockwise. Maximum low EQ cut is
obtained by rotating this control fully counterclockwise.
MID EQ<6»
Conirols the channel mid EQ level. An active tone control (peak/notch. ±12 dB) that adjusts the mid frequency
range. Maximum mid EQ boost is obtained by rotating this control fully clockwise. Maximum mid EQ cut is
obtained by rotating this control fully counterclockwise.
HIGH EQ CONTROL (7)
Controls the channel high EQ level. An active tone control (shelving type, ±15 dB) that varies the high frequency
range. Maximum high EQ boost is obtained by rotating this control fully clockwise. Maximum high EQ cut is
obtained by rotating this control fully clockwise.
EFFECTS SEND (8)
Conirols the channel effects drive level. Maximum effects signal is obtained by rotating the control fully clock¬
wise. Minimum signal level cut is obtained by rotating ihis control fully counterclockwise.
MASTER SECTION:
EFFECT LED(9)
When blinking, this LED indicates that the effects system is within 6 dB of clipping: when fully illuminated,
indicates that the effects system's sound will be distorted, as clipping will be taking place. If the EFFECT LED
becomes fully illuminated, use the EFFECTS MASTER control (14) to reduce the effects system operating level
so the EFFECT LED is no longer illuminated or only blinks occasionally. A decrease in the effects level in the
main mix can be compensated for by increasing the gain of the EFFECTS RETURN (15).
