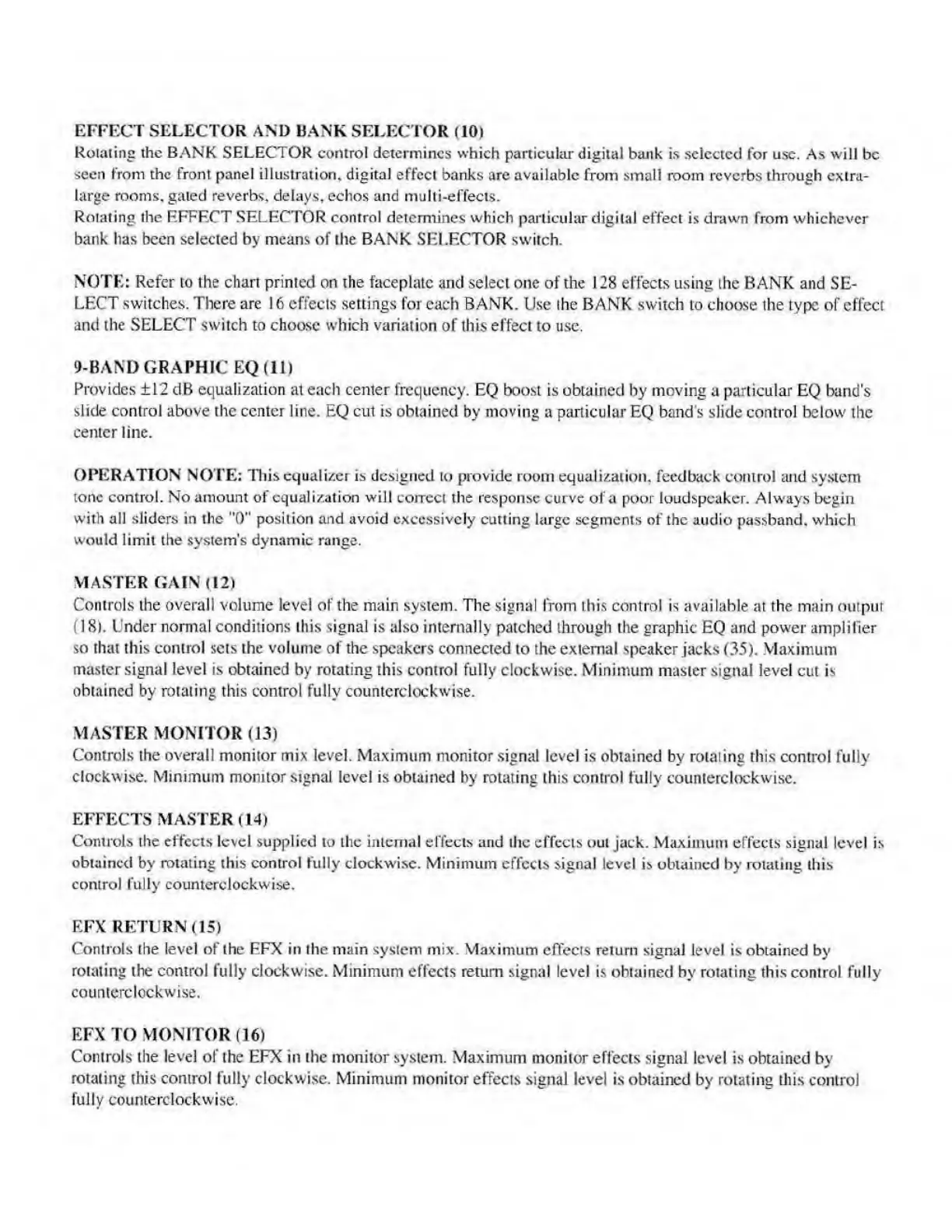

Page #5 background image
EFFECT
SELECTOR
AND
BANK
SELECTOR
(10)
Rotating
the
BANK
SELECTOR
control
determines
which
particular
digital
bank
is
selected
for
use.
As
will
be
seen
from
the
front
panel
illustration,
digital
effect
banks
are
available
from
small
room
reverbs
through
extra-
large
rooms,
gated
reverbs,
delays,
echos
and
multi-effects.
Rotating
the
EFFECT
SELECTOR
control
determines
which
particular
digital
effect
is
drawn
from
whichever
bank
lias
been
selected
by
means
of
the
BANK
SELECTOR
switch.
NOTE:
Refer
to
the
chart
printed
on
the
faceplate
and
select
one
of
the
128
effects
using
the
BANK
and
SE¬
LECT
switches.
There
are
16
effects
settings
for
each
BANK.
Use
the
BANK
switch
to
choose
the
type
of
effect
and
the
SELECT
switch
to
choose
which
variation
of
this
effect
to
use.
9-BAND
GRAPHIC
EQ
(11)
Provides
±12
dB
equalization
at
each
center
frequency.
EQ
boost
is
obtained
by
moving
a
particular
EQ
band's
slide
control
above
the
center
line.
EQ
cut
is
obtained
by
moving
a
particular
EQ
band's
slide
control
below
the
center
line.
OPERATION
NOTE:
This
equalizer
is
designed
to
provide
room
equalization,
feedback
control
and
system
tone
control.
No
amount
of
equalization
will
correct
the
response
curve
of
a
poor
loudspeaker.
Always
begin
with
all
sliders
in
the
"0"
position
and
avoid
excessively
cutting
large
segments
of
the
audio
passband,
which
would
limit
the
system's
dynamic
range.
MASTER
GAIN
(12)
Controls
the
overall
volume
level
of
the
main
system.
The
signal
from
this
control
is
available
at
the
main
output
(18).
Under
normal
conditions
this
signal
is
also
internally
patched
through
the
graphic
EQ
and
power
amplifier
so
that
this
control
sets
the
volume
of
the
speakers
connected
to
the
external
speaker
jacks
(35).
Maximum
master
signal
level
is
obtained
by
rotating
this
control
fully
clockwise.
Minimum
master
signal
level
cut
is
obtained
by
rotating
this
control
fully
counterclockwise.
MASTER
MONITOR
(13)
Controls
the
overall
monitor
mix
level.
Maximum
monitor
signal
level
is
obtained
by
rotating
this
control
fully
clockwise.
Minimum
monitor
signal
level
is
obtained
by
rotating
this
control
fully
counterclockwise.
EFFECTS
MASTER
(14)
Controls
the
effects
level
supplied
to
the
internal
effects
and
the
effects
out
jack.
Maximum
effects
signal
level
is
obtained
by
rotating
this
control
fully
clockwise.
Minimum
effects
signal
level
is
obtained
by
rotating
this
control
fully
counterclockwise.
EFX
RETURN
(15)
Controls
the
level
of
the
EFX
in
the
main
system
mix.
Maximum
effects
return
signal
level
is
obtained
by
rotating
the
control
fully
clockwise.
Minimum
effects
return
signal
level
is
obtained
by
rotating
this
control
fully
counterclockwise.
EFX
TO
MONITOR
(16)
Controls
the
level
of
the
EFX
in
the
monitor
system.
Maximum
monitor
effects
signal
level
is
obtained
by
rotating
this
control
fully
clockwise.
Minimum
monitor
effects
signal
level
is
obtained
by
rotating
this
control
fully
counterclockwise.
