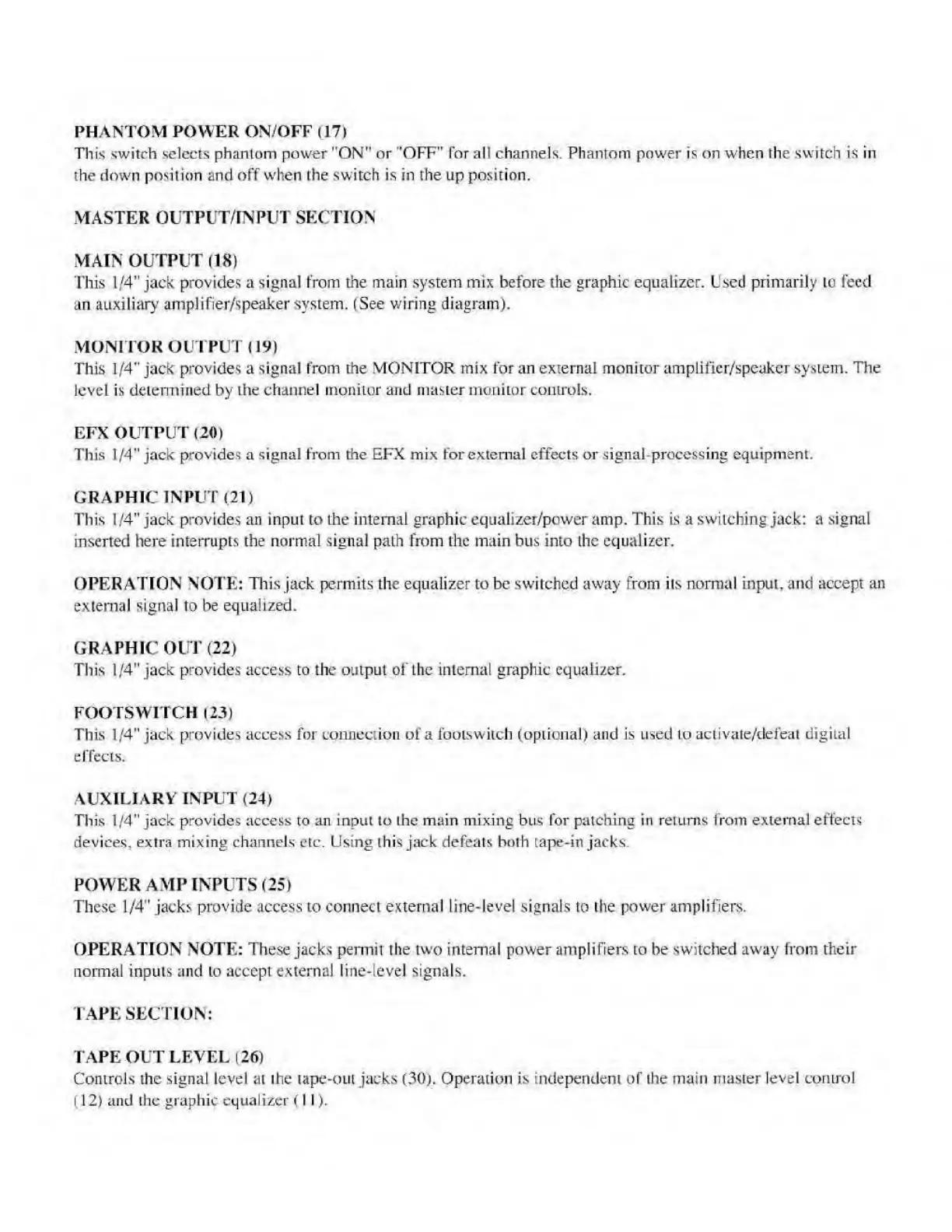

Page #6 background imageLoading...
Page #6 background image
PHANTOM
POWER
ON/OFF
(17)
This
switch
selects
phantom
power
"ON"
or
"OFF"
for
all
channels.
Phantom
power
is
on
when
the
switch
is
in
the
down
position
and
off
when
the
switch
is
in
the
up
position.
MASTER
OUTPUT/INPUT
SECTION
MAIN
OUTPUT
(18)
This
1/4"
jack
provides
a
signal
from
the
main
system
mix
before
the
graphic
equalizer.
Used
primarily
to
feed
an
auxiliary
amplifier/speaker
system.
(See
wiring
diagram).
MONITOR
OUTPUT
(19)
This
1/4"
jack
provides
a
signal
from
the
MONITOR
mix
for
an
external
monitor
amplifier/speaker
system.
The
level
is
determined
by
the
channel
monitor
and
master
monitor
controls.
EFX
OUTPUT
(20)
This
1/4"
jack
provides
a
signal
from
the
EFX
mix
for
external
effects
or
signal-processing
equipment.
GRAPHIC
INPUT
(21)
This
1/4"
jack
provides
an
input
to
the
internal
graphic
equalizer/power
amp.
This
is
a
switching
jack:
a
signal
inserted
here
interrupts
the
normal
signal
path
from
the
main
bus
into
the
equalizer.
OPERATION
NOTE:
This
jack
permits
the
equalizer
to
be
switched
away
from
ils
normal
input,
and
accept
an
external
signal
to
be
equalized.
GRAPHIC
OUT
(22)
This
1/4"
jack
provides
access
to
the
output
of
the
internal
graphic
equalizer.
FOOTS
WITCH
(23)
This
1/4"
jack
provides
access
for
connection
of
a
foolswitch
(optional)
and
is
used
to
activate/defeat
digital
effects.
AUXILIARY
INPUT
(24)
This
1/4"
jack
provides
access
to
an
input
to
the
main
mixing
bus
for
patching
in
returns
from
external
effects
devices,
extra
mixing
channels
etc.
Using
this
jack
defeats
both
tape-in
jacks
POWER
AMP
INPUTS
(25)
These
1/4"
jacks
provide
access
to
connect
external
line-level
signals
to
the
power
amplifiers.
OPERATION
NOTE:
These
jacks
permit
the
two
internal
power
amplifiers
to
be
switched
away
from
their
normal
inputs
and
lo
accept
external
line-level
signals.
TAPE
SECTION:
TAPE
OUT
LEVEL
(26)
Controls
the
signal
level
at
the
tape-out
jacks
(30).
Operation
is
independent
of
the
main
master
level
control
(12)
and
the
graphic
equalizer
(II).
