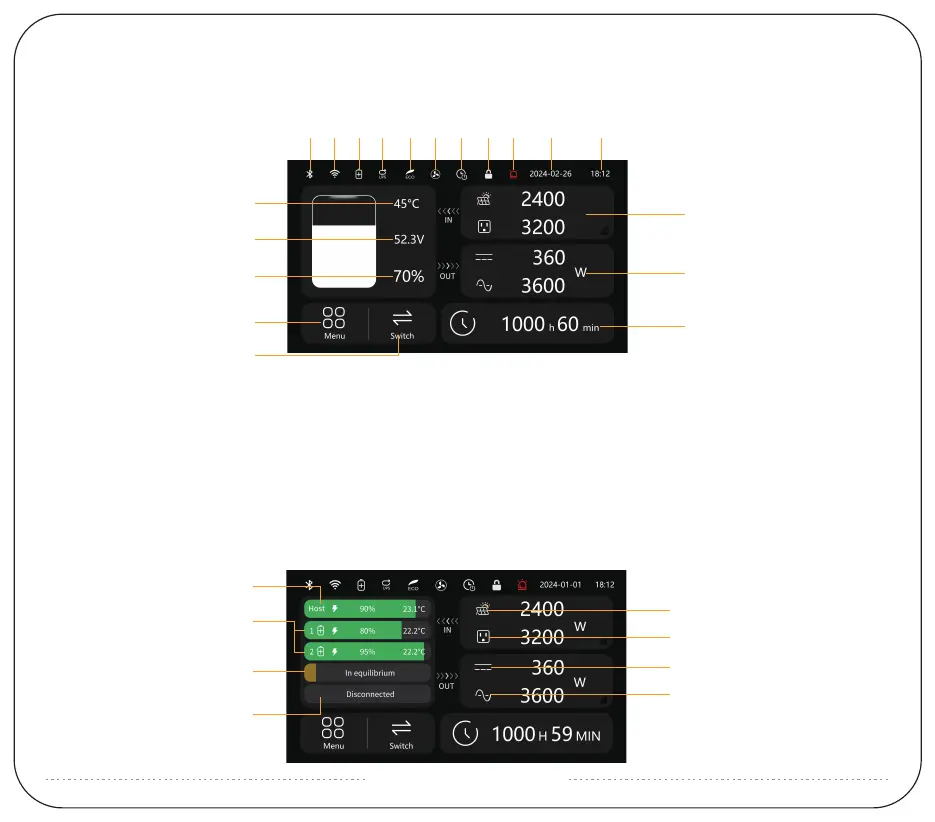

DETAILS AND OPERATING INSTRUCTIONS OF THE DISPLAY
①
⑫
② ③ ④ ⑤ ⑥ ⑧⑦ ⑨ ⑩ ⑪
⑬
⑭
⑲
⑮
⑯
⑰
⑱
Display and switch of home page 1
Display and switch of home page 2
②
①
③
④
⑤
⑥
⑦
⑧
Remaining volume of
the main power station
DC Input
AC Input
DC Output
AC Output
Remaining volume of the
expansion battery pack
Equilibrium state of the
main power station and
expansion battery pack
Disconnection of the
main power station and
expansion battery pack
⑥
⑦
⑧
⑨
⑩
FANS ON
TIMER SWITH ON
Touchscreen Lock
Warning
Date
⑪
⑫
⑬
⑭
⑮
Time
Battery Temperature
Battery Voltage
Battery Volume Percentage
Menu
⑯
⑰
⑱
⑲
Switch Button
Display of Input
Display of Output
Remaining Discharge Time
/Remaining Charge Time
①
②
③
④
⑤
Bluetooth connection
WIFI connection
UPS ON
ECO ON
Connection of
expansion battery pack
