PEDROLLO STEADYPRES V2.0 User Manual

44
EXT OFF
Placing out of service by means of external
signal
Check the external signal
none Pressure sensor fault Check the display pressure with a reference manometer, re-
calibrate or substitute the pressure sensor
PROBLEM
Pump always running even when not required
M
essag
e
Cause
intervention
None
System leaks greater then 2 l/min Identify the leaks and repair
None
Flow sensor fault or locked open Inspect and check the flow sensor
PROBLEM
The pump stops too soon when requested
Message
Cause
intervention
none
Flow rate sensor fault Check the flow rate sensor
Message
Cause
Message
C
ause
intervention
none
Air inside suction manifold Bleed the suction system
none
Pump blocked or damaged Inspect the pump and eliminate the problem
MAINTENANCE

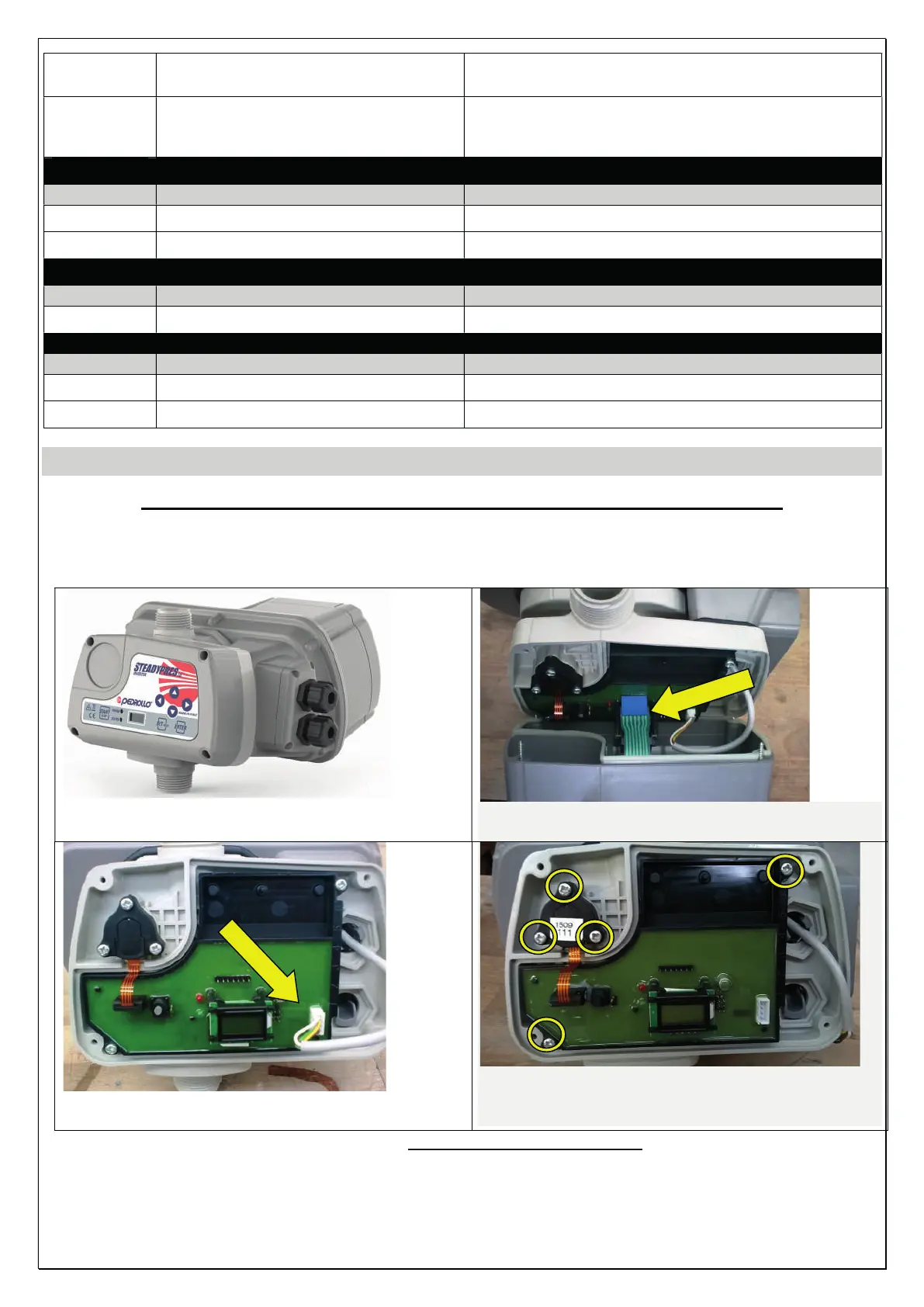

Replacement of the CONTROL BOARD + PRESSURE SENSOR
- Disconnect the inverter main power supply and wait 2 minutes (capacitors discharge)
- Open the front cover and disassembly the pressure sensor and the control board as shown below
- Install the new control board with pressure sensor in reverse order of removal.
Open the front cover by unscrewing the 4 screws
Before removing the cover, disconnect the
ribbon cable
of the display
Disconnect the wire communication with the power
board
Remove FIRST the PRESSURE SENSOR and
THEN the CONTROL BOARD by unscrewing the 5
screws indicated
Re-assemble the new BOARD+SENSOR in the same way but in reverse order:
- FIRST assemble the CONTROL BOARD
